This part describes only Monarch elevator ARD.

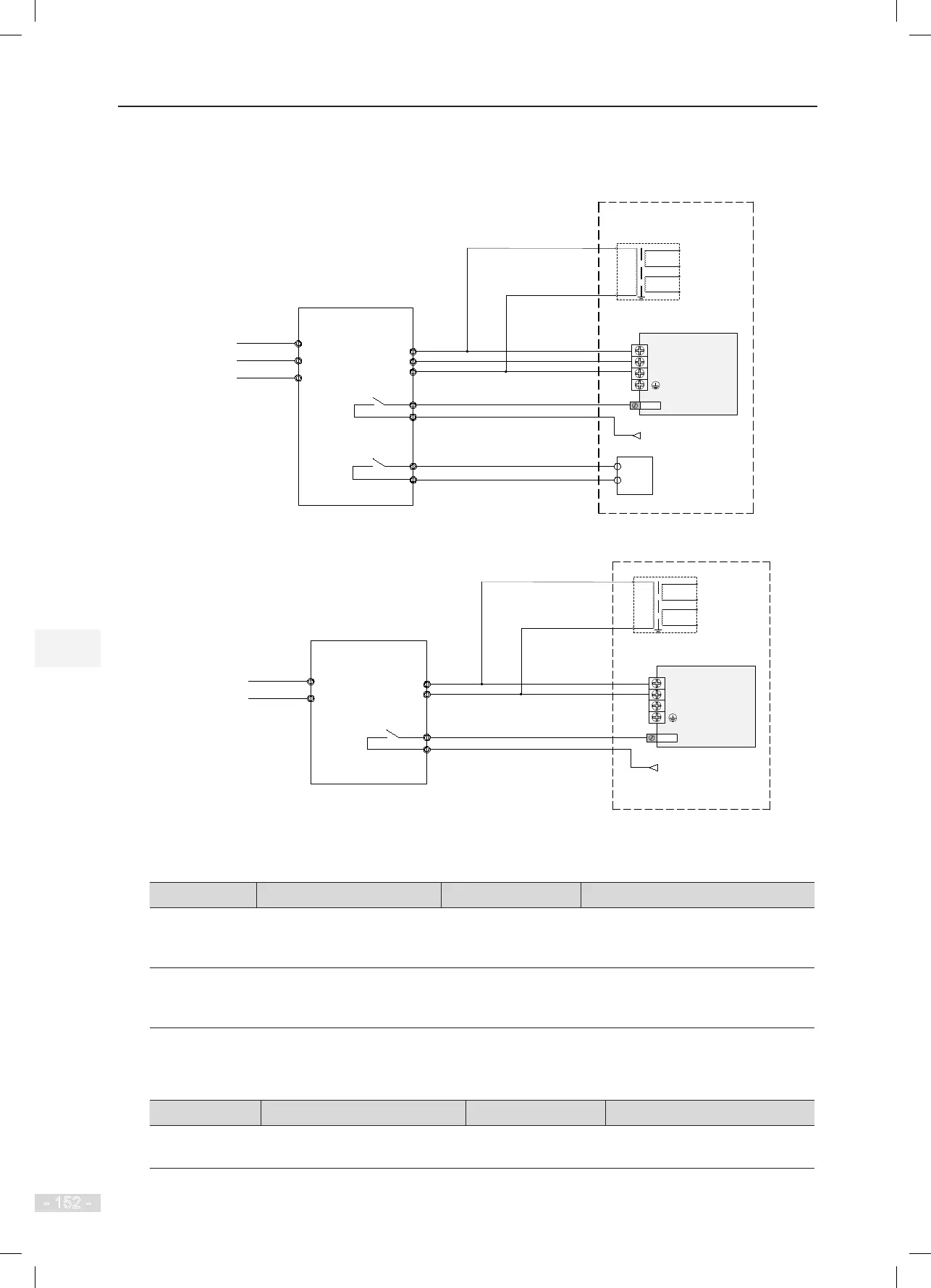

Figure 6-19 Wiring of three-phase (380 V) elevator ARD
R
24 V
T
Elevator control cabinet
Emergency
evacuation
signal output
Phase
shorting
output
11
14
Elevator ARD
Phase relay
L1
L2
S
T
1
2
3
4
L3
220 V
110 V
Transformer
380 V
NICE3000
new
R
S
T
X20
L1
L2
L3
External
mains
power
Figure 6-20 Wiring of single-phase (220 V) elevator ARD
L0
24 V
T
Elevator control cabinet
Emergency
evacuation
signal output
Elevator ARD
L1
N1
N0
1
2
220 V
110 V
Transformer
220
V
NICE3000
new
R
S
T
X20
L
N
External
mains power
The parameter setting related to emergency evacuation by controller drive is described in the
following table.
Function Code Parameter Name Value Remarks
F8-10
Emergency evacuation
operation mode at power
failure
1: UPS -
F5-20 (X20) X20 function selection
27 (Emergency
evacuation signal)
Assume that X20 is used as the
NO input of emergency evacuation
signal.
The parameter setting related to emergency evacuation by shorting stator braking is described in the
following table.
Function Code Parameter Name Value Remarks
F8-10
Emergency evacuation operation
mode at power failure
0: Motor not running -
