NICE3000
new
User Manual 8 Description of Function Codes
- 211 -
8

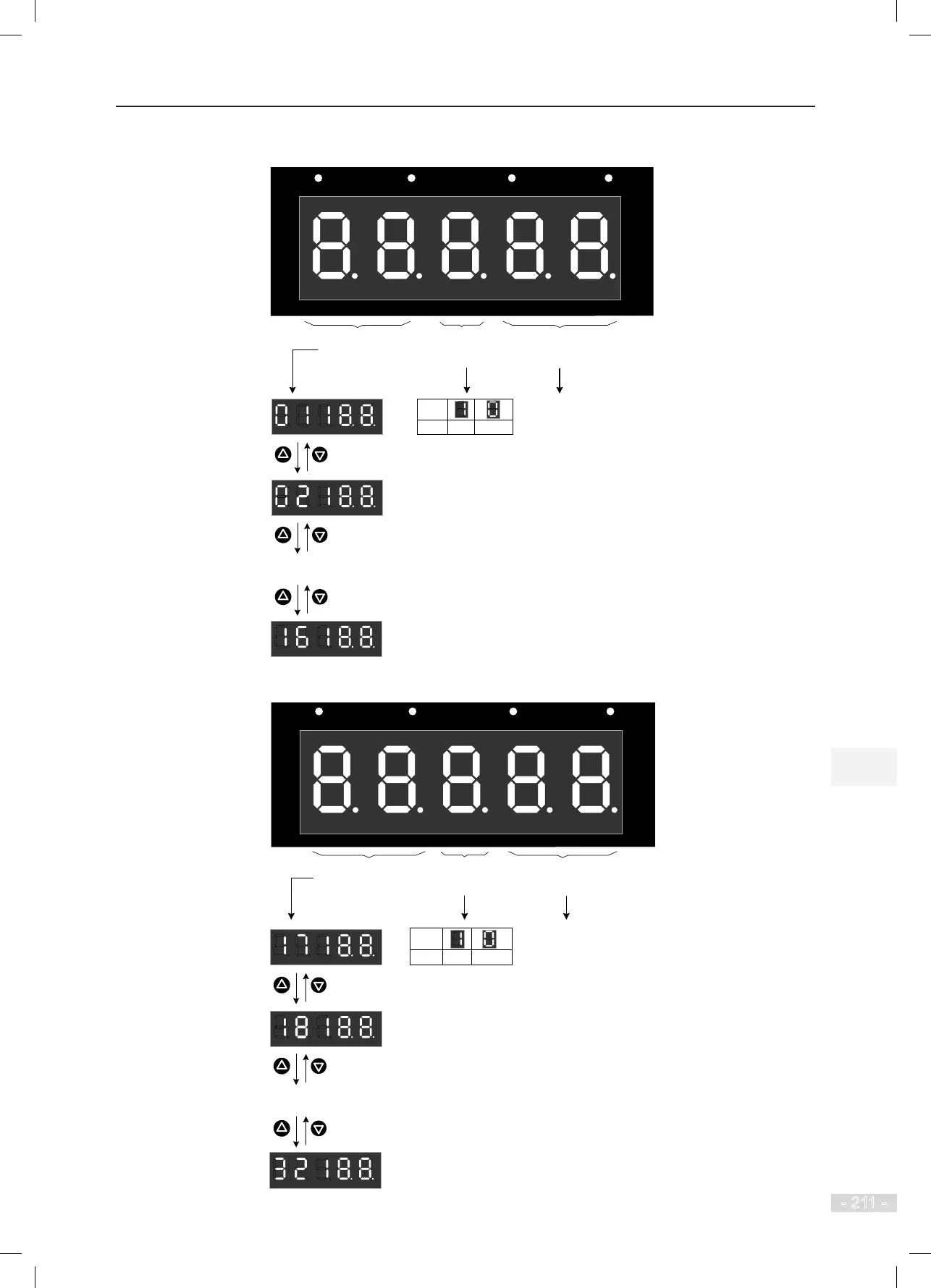

Figure 8-7 FA-46 HCB communication state 1
Segment ON: communication normal
Segment OFF: communication abnormal
Present address
Communication
state of present
address
Address of the
HCB at each floor
1
2
35
6
4
7
8
9
10
11
15
12
13
14
16
RUN LOCAL/REMOT
FED/REV TUNE/TC
Display
Meaning Normal Interrupted
...
Figure 8-8 FA-47 HCB communication state 2
Segment ON
: communication normal
Segment OFF: communication abnormal
17
18
1921
22
20
23
24
25
26
27
31
28
29
30
32
RUN
LOCAL/REMOT FED/REV TUNE
/TC
Display
Meaning
Normal
Interrupted
Present address
Communication
state of present
address
Address of the
HCB at each floor
...
