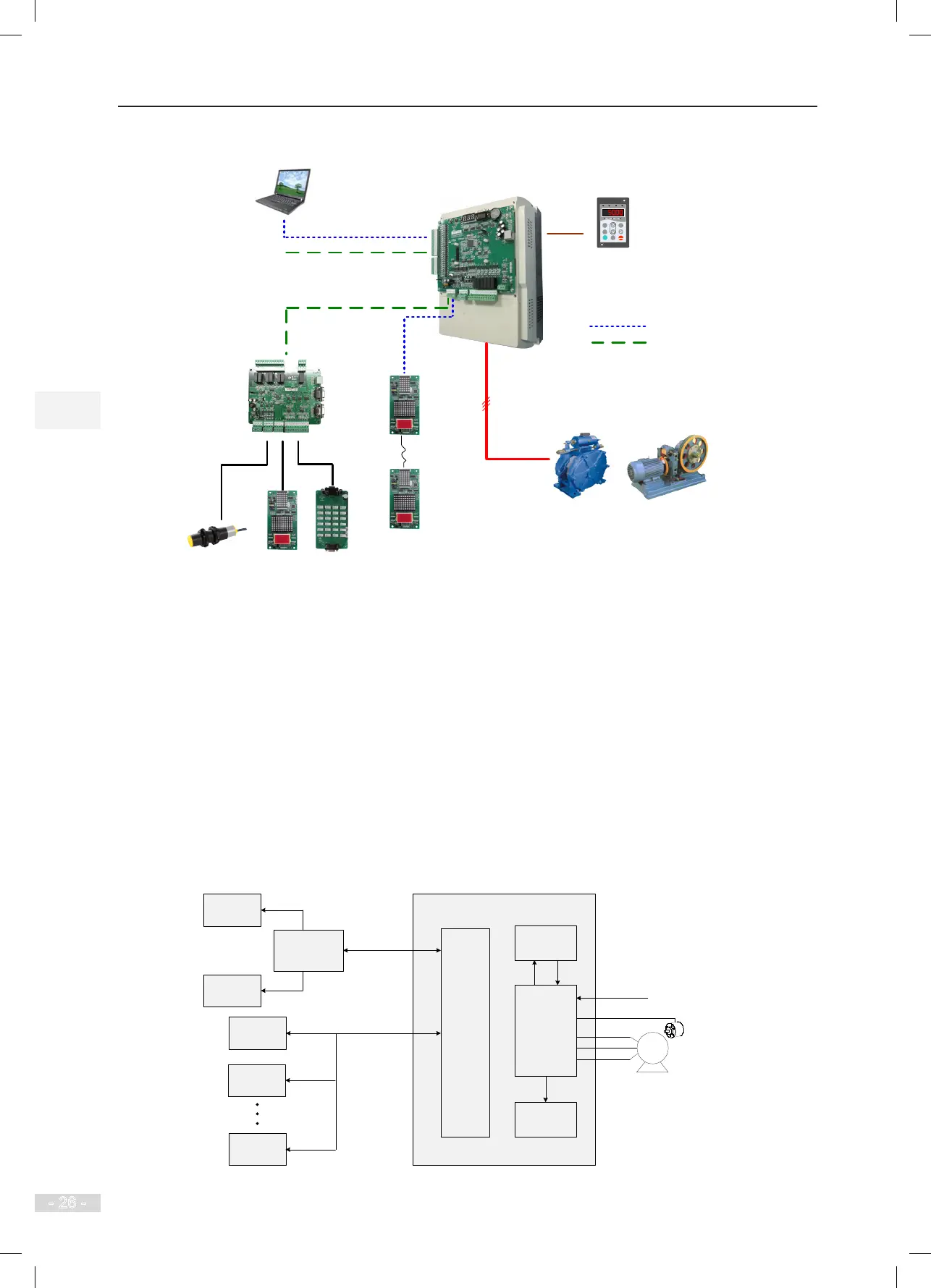

Figure 2-5 System components of the NICE3000
new
MCTC-CTB
LED operation panel
(MDKE)
MCTC-HCB
Host computer
(NEMS software)
NICE3000
new
integrated
elevator controller
Communication for
parallel/group control
Synchronous or
asynchronous motor
MF.K
RUN
STOP
RES
QUICK
PRG
ENTER
RUN
LOCAL/REMOT FED/ REV TUNE/ TC
RPM
%
A VHz
MCTC-CCB
MCTC-HCB
Load cell
Modbus communication
CANbus communication
The NICE3000
new
has the following functions in the system:
●
It controls the motor based on feedback signals from the encoder, and records information of all
position switches in the shaft by pulse, implementing accurate leveling and direct travel ride and
guaranteeing running safety.
●
It implements information collection and control of car-related components by means of CANbus
communication with the MCTC-CTB.
●
It registers and displays hall calls of all oors with easy address setting by means of Modbus
communication with the MCTC-HCB.
The following gure shows the system structure of the NICE3000
new
.
Figure 2-6 System structure of the NICE3000
new
Drive circuit
of the motor
Power supply
circuit
MCTC-HCB
MCTC-CCB
Input power
CANbus
MCTC-CTB
Modbus
MCTC-HCB
NICE3000
new
integrated controller
MCTC-HCB
MCTC-HCB
M
Encoder
Motor
Encoder feedback
U
V
W
Braking unit
Modbus
Control circuit of the controller
