4 Peripheral Devices and Options NICE3000
new
User Manual
- 76 -

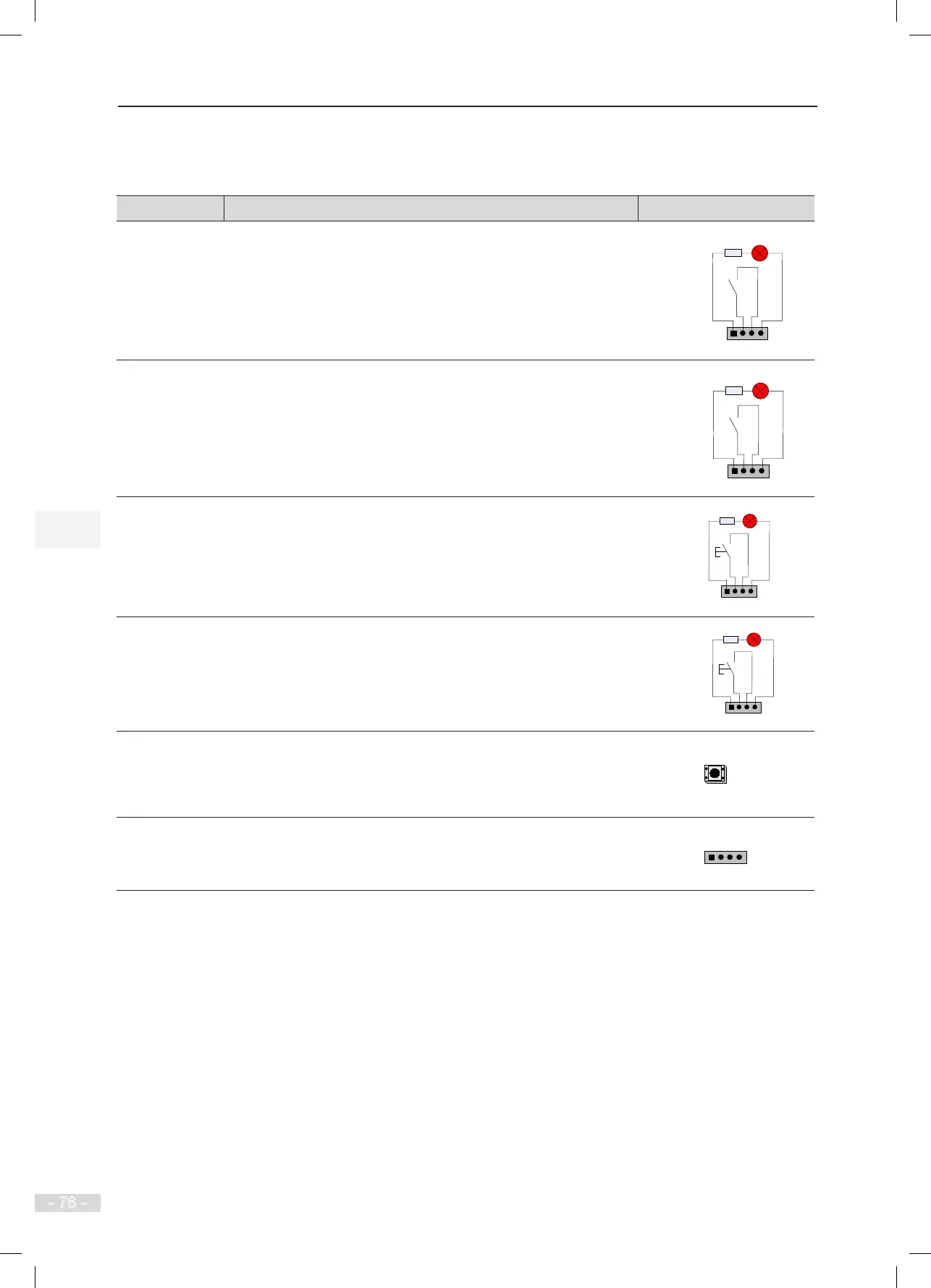

The following table describes the input and output terminals of HCB-H.
Table 4-8 Input and output terminals of HCB-H
Terminal Name
Function Terminal Wiring
JP1
Interface for the elevator lock switch and up arrival indicator
Pins 2 and 3 are for switch input. Pins 1 and 4 are output of the up
arrival indicator (24 VDC output, load capacity: 40 mA).
1 2 3 4
Elevator
lock switch
input
Up arrival
indicator
JP2
Interface for the îš¿re emergency switch and down arrival indicator
Pins 2 and 3 are for switch input. Pins 1 and 4 are output of the
down arrival indicator (24 VDC output, load capacity: 40 mA).
1 2 3 4
Fire
emergency
switch input
Down arrival
indicator
JP3
Interface for the up call button and indicator
Pins 2 and 3 are for up call input. Pins 1 and 4 are power supply for
the up call indicator (24 VDC output, load capacity: 40 mA).
1 2 3 4
Up call indicator
Up call
button
JP4
Interface for the down call button and indicator
Pins 2 and 3 are for down call input. Pins 1 and 4 are power supply
for the down call indicator (24 VDC output, load capacity: 40 mA).
1 2 3 4
Down call indicator
Down call
button
S1
Button for setting the oor address.
Hold down the button to adjust the oor address (range 0–56). After
you stop pressing, the address number blinks three times and the
setting is successful.
CN1
Modbus communication and power supply terminal
Pins 2 and 3 are for Modbus communication. Pins 1 and 4 are for
DC power supply.
