HCB-R1 (Ultrathin Dot-Matrix Display Board)

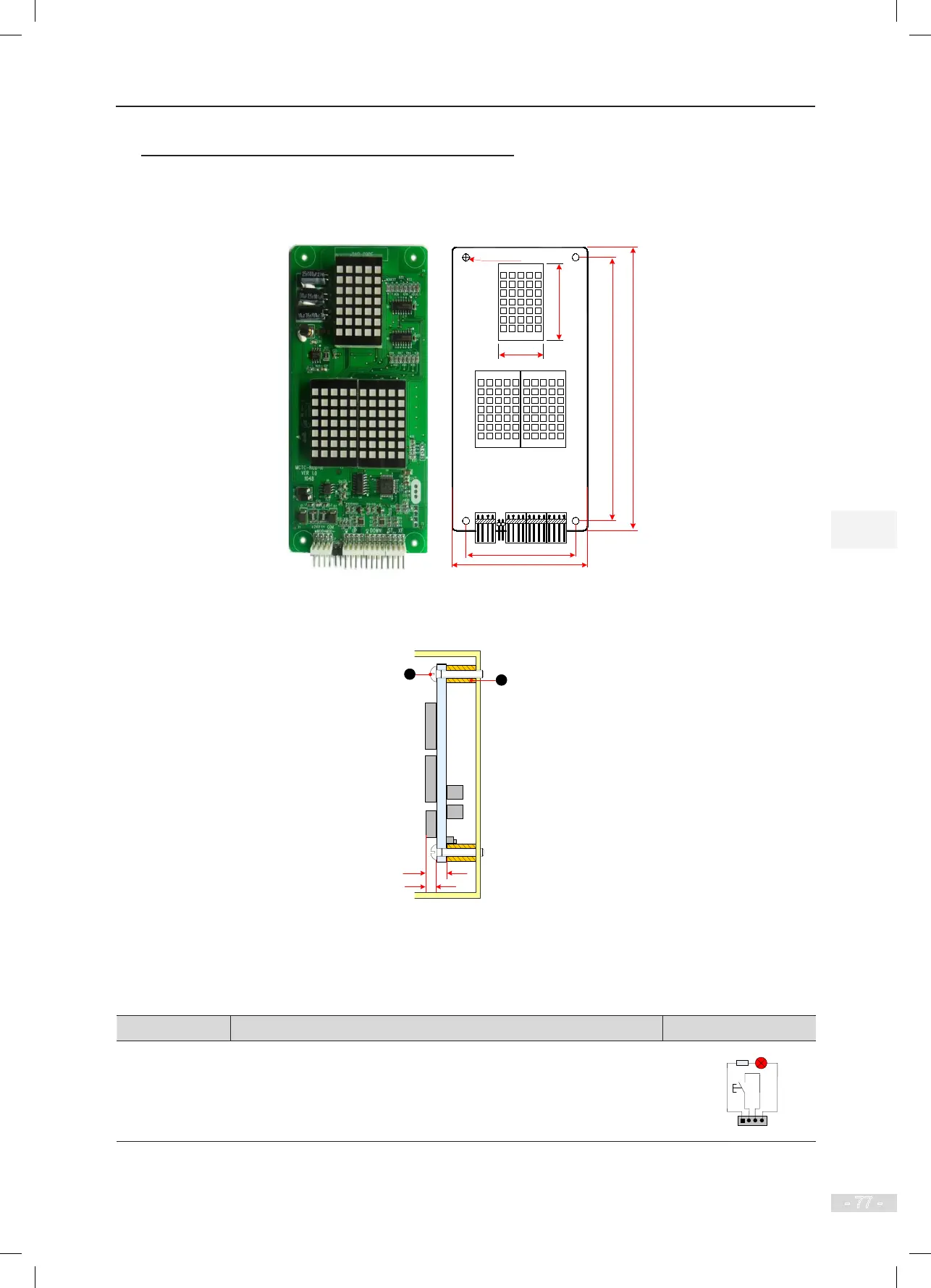

The following gure shows the appearance and dimensions of HCB-R1.
Figure 4-8 Appearance and dimensions of HCB-R1
4-φ3.5
56.0
134.
0
144.0
22.8
39.0
CN1
J1
UP DOWN ST XF
70
MCTC-HCB-R1
Unit: mm
The following gure shows the installation method of HCB-R1.
Figure 4-9 Installation method of HCB-R1
6.7
10
Unit: mm
MCTC-HCB-R1
1
2
1 - Plastic support higher than 1 cm
2 - Self-tapping screw 4-φ4.9x30
The following table describes the input and output terminals.
Table 4-9 Input and output terminals of HCB-R1
Terminal Name
Function Terminal Wiring
UP
Interface for the up call button and indicator
Pins 2 and 3 are for up call input. Pins 1 and
4 are power supply for the up call indicator (24 VDC output, load
capacity: 40 mA).
1 2 3 4
Up call indicator
Up call
button
