4 Peripheral Devices and Options
- 79 -
4

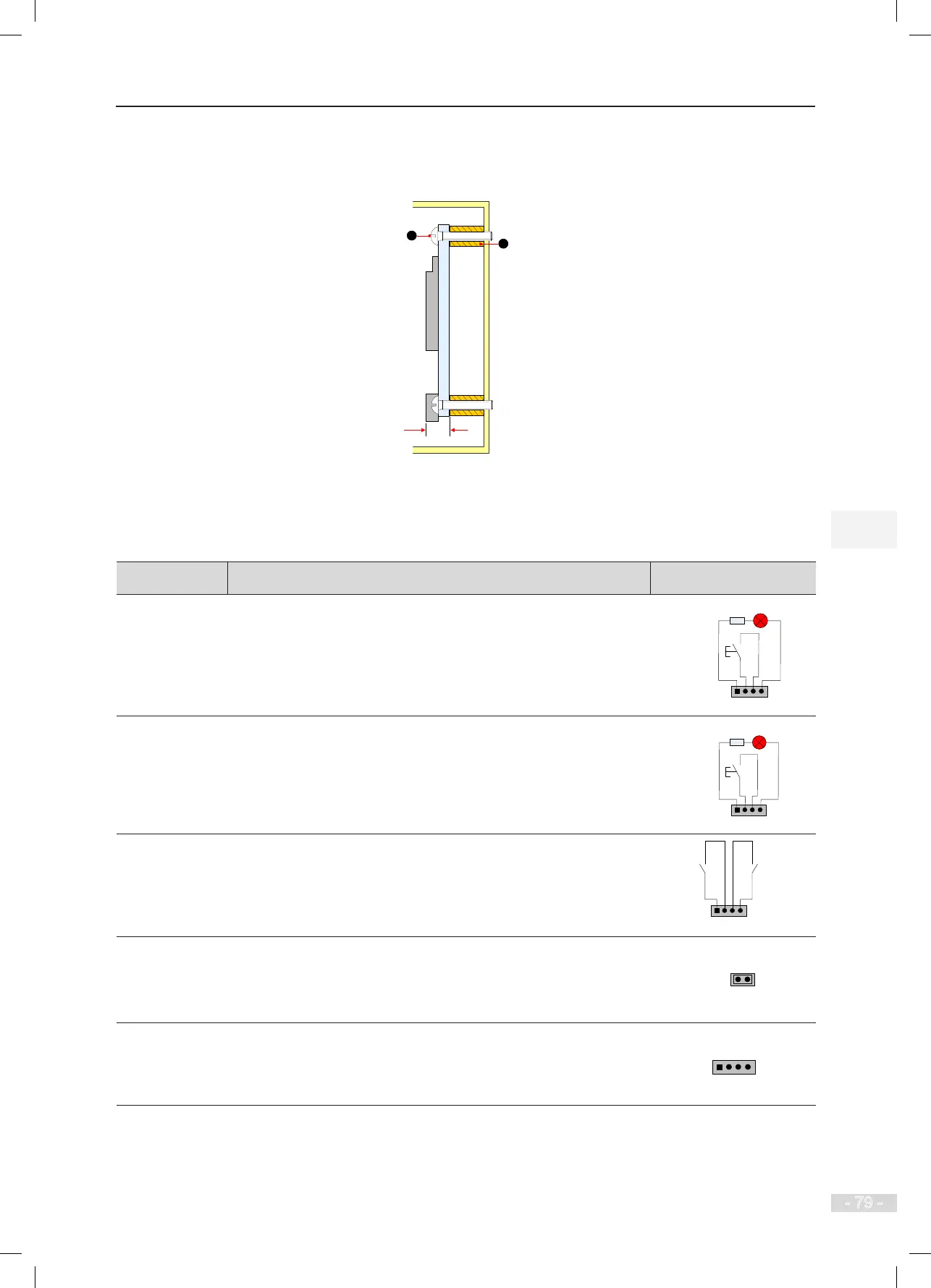

The following gure shows the installation method of HCB-D2.
Figure 4-11 Installation method of HCB-D2
10
Unit: mm
MCTC-HCB-D2
1 - Plastic support higher than 1 cm
2 - Self-tapping screw 4-φ4.9x30
1
2
The following table describes the input and output terminals of HCB-D2.
Table 4-10 Input and output terminals of HCB-D2
Terminal Name
Function Terminal Wiring
UP
Interface for the up call button and indicator
Pins 2 and 3 are for up call input. Pins 1 and 4 are power supply for
the up call indicator (24 VDC output, load capacity: 40 mA).
1 2 3 4
Up call indicator
Up call
button
DOWN
Interface for the down call button and indicator
Pins 2 and 3 are for down call input. Pins 1 and 4 are power supply
for the down call indicator (24 VDC output, load capacity: 40 mA).
1 2 3 4
Down call indicator
Down call
button
XF/ST
Interface for the re emergency and elevator lock switch
Pins 1 and 2 are for elevator lock input. Pins 3 and 4 are for re
emergency input.
1 2 3 4
Fire
emergency
input
Elevator
lock input
J1
Terminal for setting the oor address
Short J1, and press the UP button or DOWN button to set the oor
address (range 0–56). After the jumper cap is removed, the address
is automatically stored.
J1
CN1
Modbus communication and power supply terminal
Pins 2 and 3 are for Modbus communication.
Pins 1 and 4 are for power supply.
1 2 3 4
MOD-
MOD+
24V
COM
