SECTION 5
DISASSEMBLY AND ASSEMBLY
101

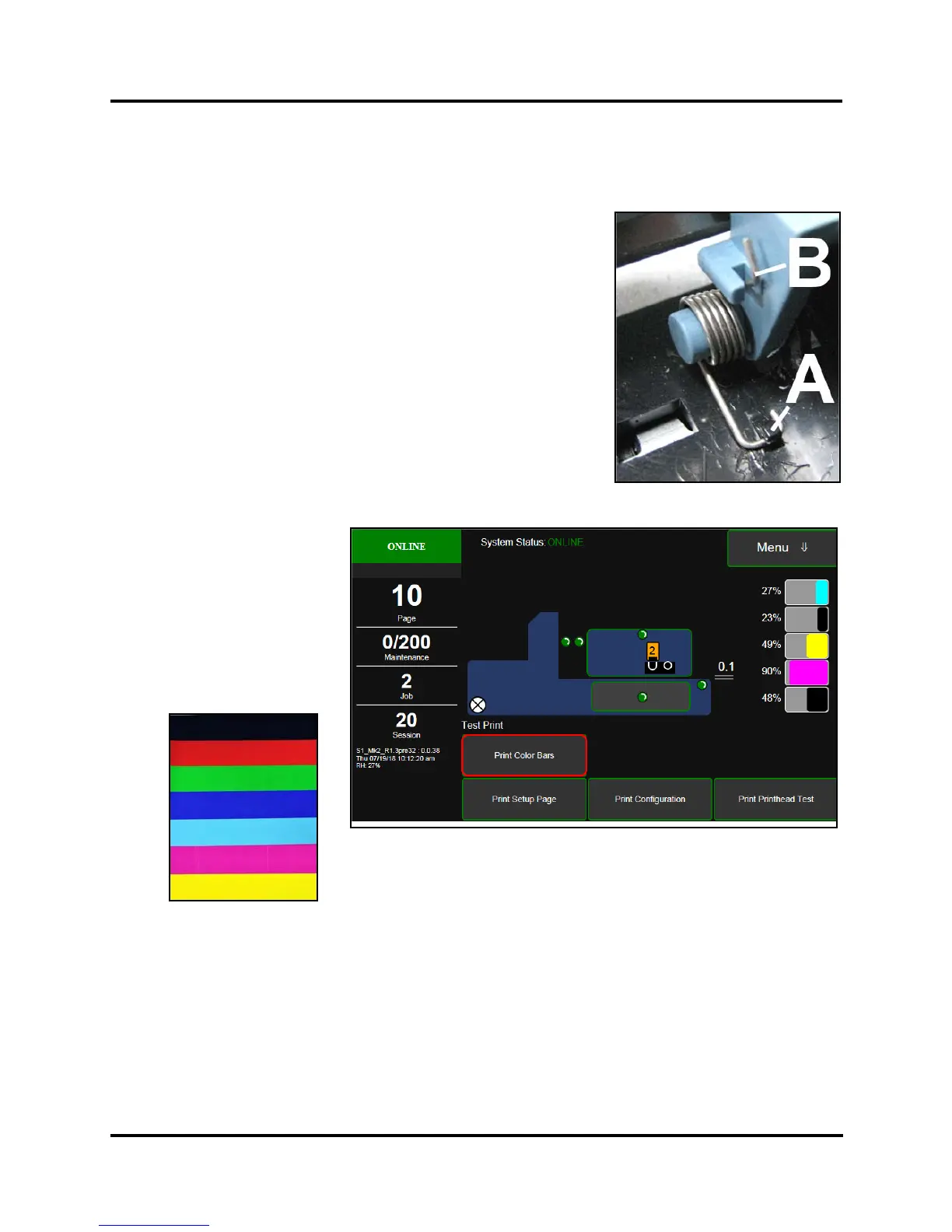

Install new Printhead Latch:
1. Align right tab of Latch with right hinge and gently press into place.
Repeat for left side.
2. [A] Use needle-nose pliers to install right Spring into plastic tab in
base of housing. NOTE: Be sure to position Spring as shown.
[B] Use needle-nose pliers to position other end of Spring into notch
in Printhead Latch.
3. Repeat Steps 2A and 2B for left side.
4. Remove Printhead from protective cap and wipe Printhead surface
according to standard installation procedure, then install.
5. Restart Printer.
6. Manually close Printhead Latch until it clicks. Printer automatically
primes and is ready for testing.
NOTE: If Printhead Latch is closed with system powered down,
Printer will not prime automatically.
Testing:
1. Restart Printer if
necessary.
2. Using the Touchscreen,
Tap “Menu” then “Print”
on the drop-down menu.
Tap “Print Color Bars”
to confirm unit is
functioning properly.
To Next Page
