SECTION 6
MAINTENANCE
119
Replace Printhead Cartridge

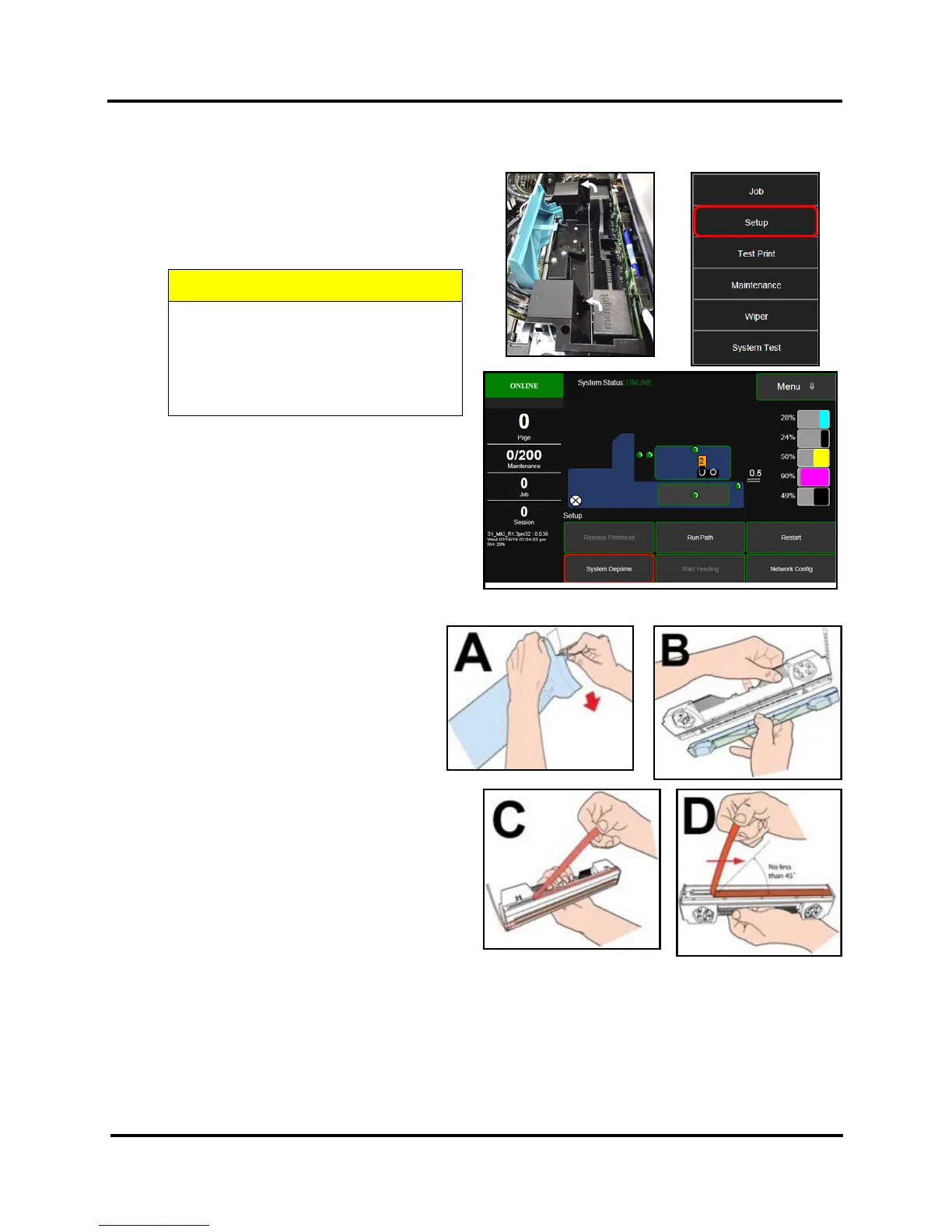

1. Open Top Cover. From the Touchscreen, tap
“Setup” in the Menu drop-down, then tap
“System Deprime”. The Printer pumps any ink in
system back into Tanks. Then the Printhead Latch
pops open.
CAUTION
DO NOT PRY OR MANUALLY LIFT
PRINTHEAD LATCH OR LATCH MAY
BREAK. ONLY OPEN LATCH USING
THE RELEASE PRINTHEAD BUTTON
ON THE TOUCHSCREEN OR IN THE
PRINTER TOOLBOX.
3. Make sure the Printhead Latch is fully opened to
retract ink lines. Remove the used Printhead
Cartridge by tilting it toward ink lines, then
carefully lifting it out of Printhead Compartment.
4. [A] Carefully remove Printhead
Cartridge from foil packaging. Tear foil
at notch or cut the end with scissors.
[B] Remove protective plastic cover.
Hold Printhead by handle and unclip
cover from Printhead.
[C] Remove protective strip from
Printhead electrical contacts.
Once removed, DO NOT allow strip to touch
electrical contacts.
[D] Remove protective strip from Printhead
Nozzles. Hold Printhead by handle. Pull strip
tab and slowly peel strip from Printhead.
DO NOT pull strip at less than a 45° angle
from Printhead surface.
DO NOT allow removed strip to touch
Printhead Nozzles.
NOTE: Keep foil packaging to store/dispose of old Printhead Cartridge.
