SECTION 3
TOUCHSCREEN AND T
OOLBOX OPERATION
29

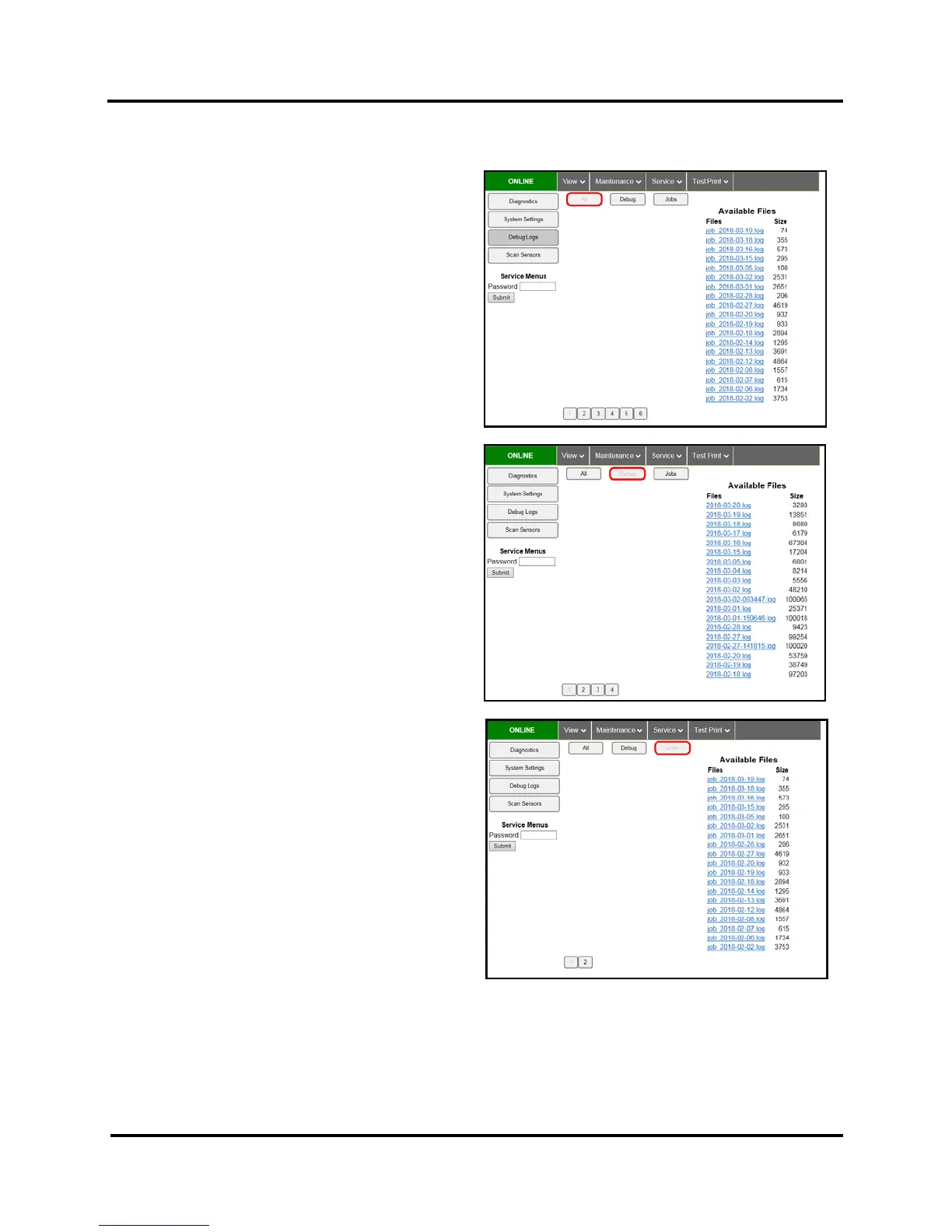

Debug Logs
Access, print o
r send activity
logs for the P
rinter and fo
r
jobs run o
n the Printer.
These files are
valuable for
diagnosing a
nd servicing pr
oblems.
All
– Shows all log files available.
Debug
– Shows only
Debug
log files.
Jobs
– Shows only
Jobs
printed
log files.
34
36
