SECTION 5
DISASSEMBLY AND ASSEMBLY
83

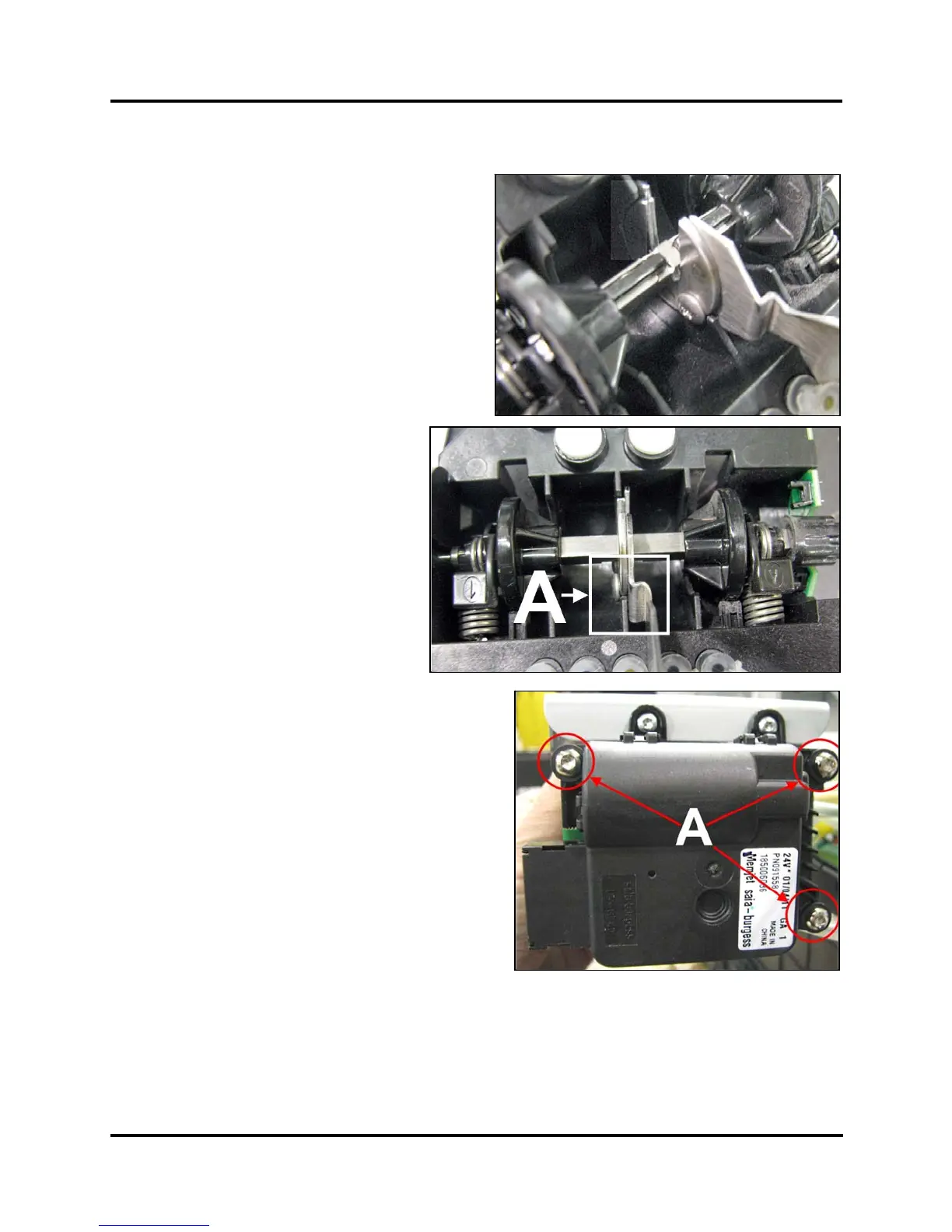

Replace Pinch Valve Sensor PC Board
1. Secure spring-loaded shaft using
Dual Pinch Valve Wrench. Position wrench
exactly as shown.
NOTE: Wrench fits around shaft (as shown).
See that the Wrench head and screw head [A] fit
around Pinch Valve housing rib (as shown).
IMPORTANT! This Step keeps spring-loaded
shaft in position when Pinch Valve Motor
Assembly is removed. Make sure Wrench is
positioned correctly before proceeding.
2. Remove Motor Assembly. Remove three (3) screws
[A] holding Pinch Valve Motor Assembly on Pinch
Valve Body. Remove Motor Assembly.
To Next Page
