225

Advanced operations

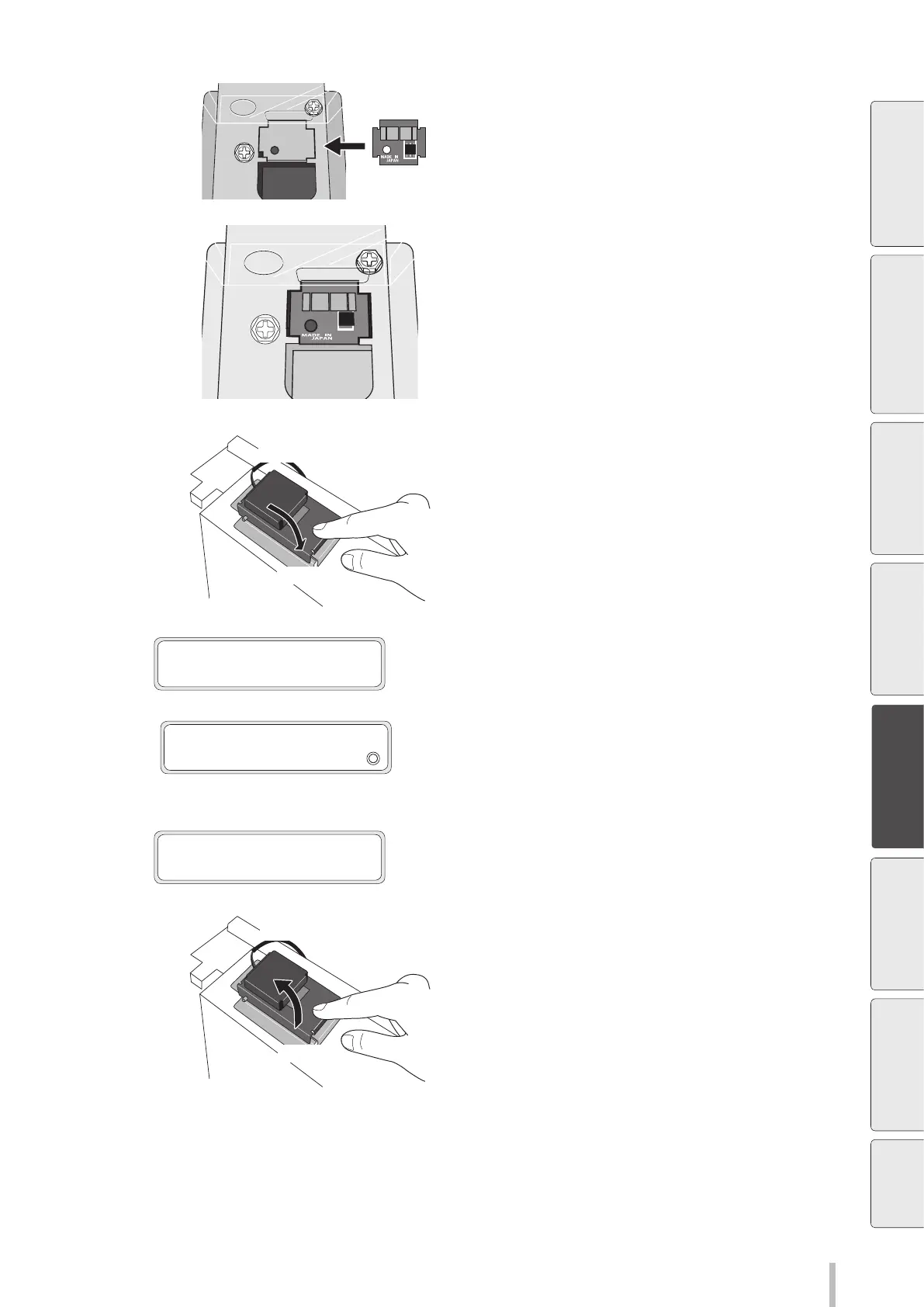

Insert the ink amount extension chip in the

ink chip reader.

Push

Close the cover of the ink chip reader.

READING...

PLEASE WAIT

The data of the ink amount extension chip is

read automatically.

X.XXL: Amount of ink that can be used

OPERATION COMPLETED

X.XXL

After the ink amount extension chip has been

read, a completion message is displayed.

REMOVE THE

EXTENSION CHIP

Push

Open

Open the cover of the ink chip reader.

Before printing Loading the media Adjustment Maintenance

Advanced

operations

Troubleshooting Menu tree Appendix
