Advanced operations

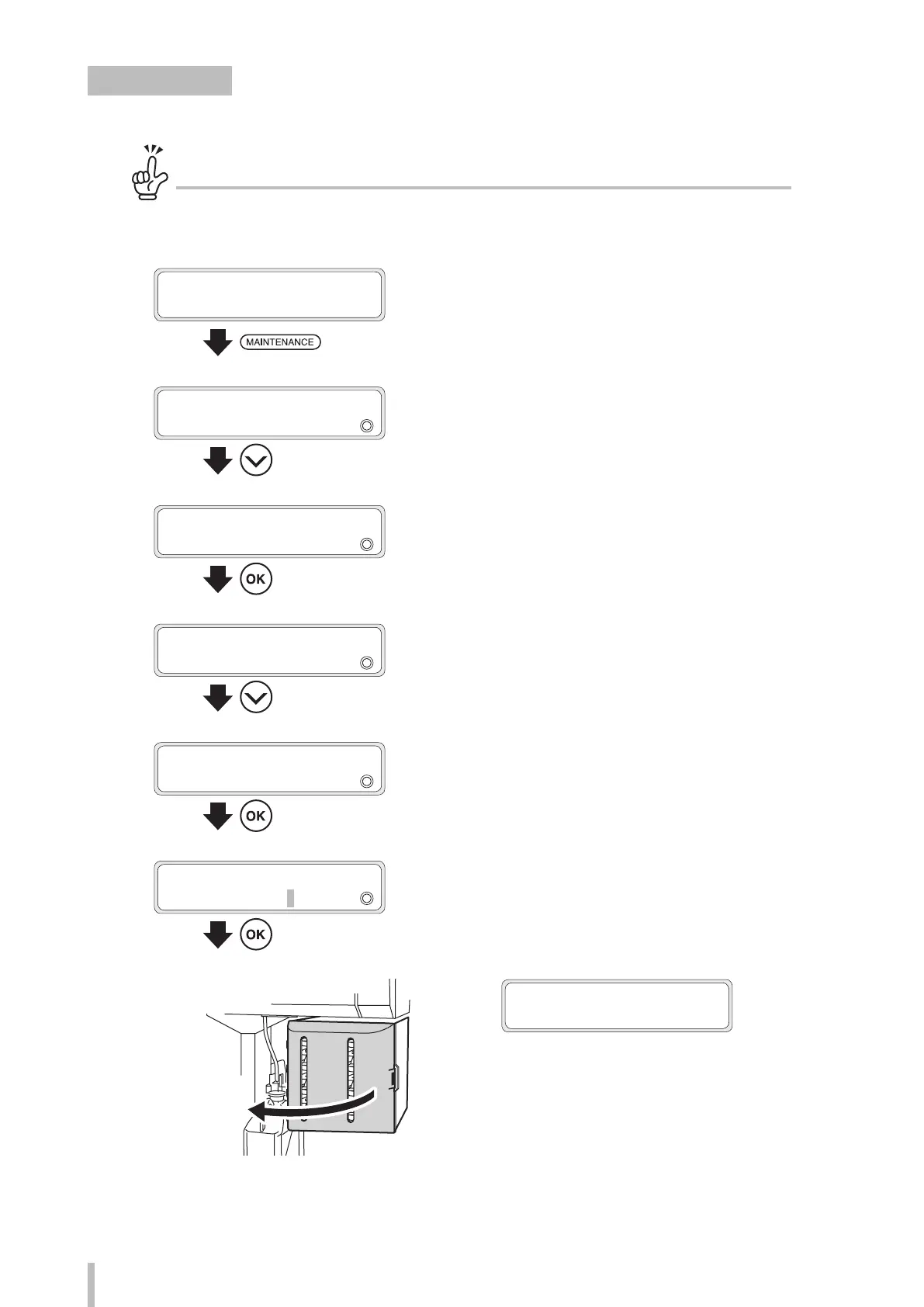

Head wash (CIS)



Set the cleaning liquid cartridges to the optional ink trays in advance to facilitate the procedure.

PRINTER READY

01: PAPER / 1626mm

Press the MAINTENANCE button.

MAINTENANCE

START MAINTENANCE

Press the Down button to select PH

MAINTENANCE.

MAINTENANCE

PH MAINTENANCE

Press the OK button.

>PH MAINTENANCE

SHEET MOUNT CLNG

Press the Down button to select CLEAN PH &

INK SYS.

>PH MAINTENANCE

CLEAN PH & INK SYS

Press the OK button.

>>CLEAN PH & INK SYS

BOTTLE IS EMPTY?

Conrm that the waste ink bottle is empty

and press the OK button.

OPEN INK BOX COVER

Open the ink box cover.
