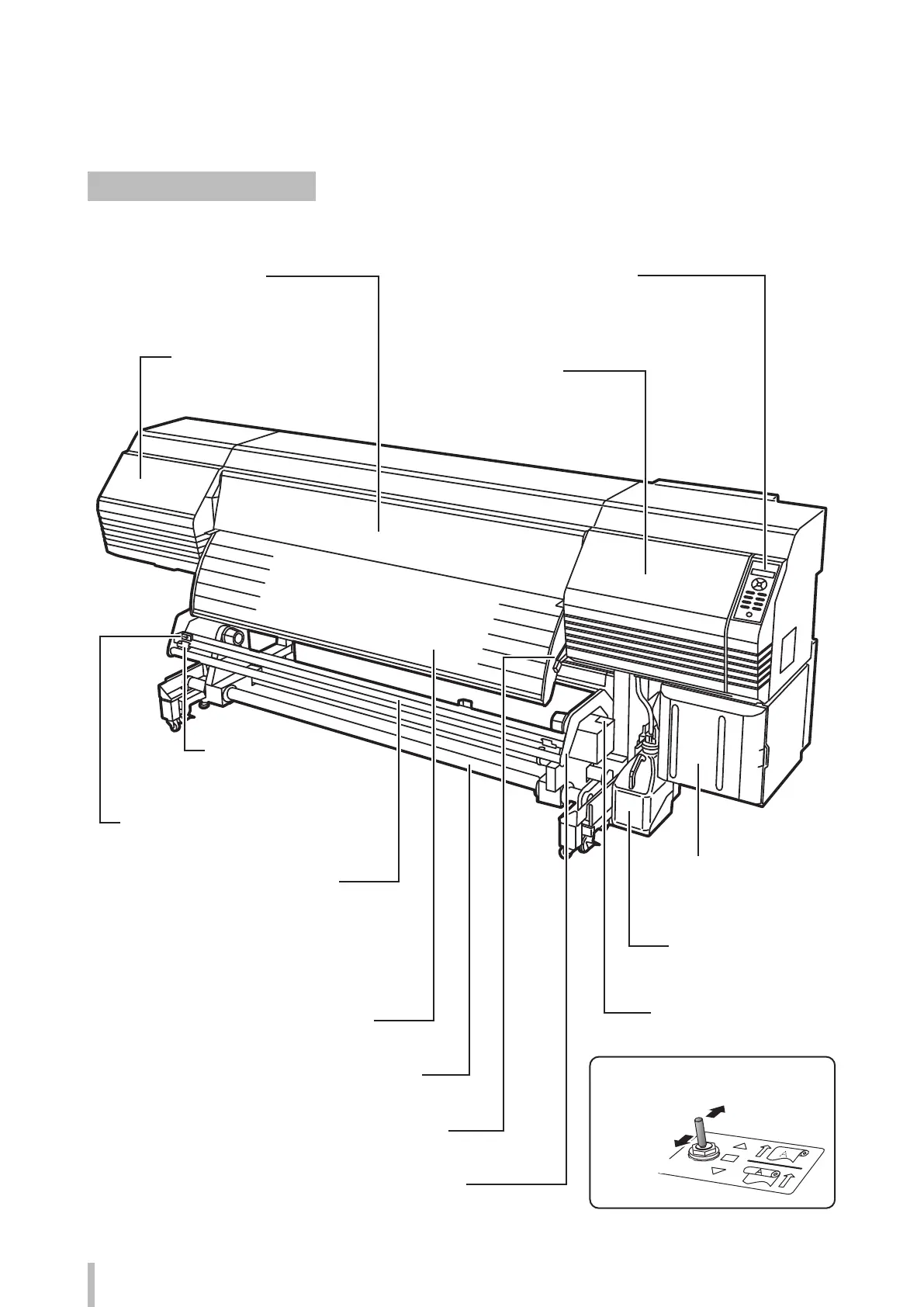

Appearance / Main components
Printer front (take-up side)
Inner take-up
Winding o
Outer take-up
Waste ink bottle
Ink box
Open the cover to install the ink
cartridges.
Guide bar
Guides the media in loose mode.
Pressure roller lever
This lever fixes or releases the media.
Take-up direction switch
Sets the media take-up direction.
Take-up reel unit
Winds the printed media.
Output paper guide
Contains the after heater that dries ink.
Cutter unit (64) (option)
Maintenance area cover
Open to perform print head
maintenance.
Front cover
Must be closed during printing.
Capping unit cover
Opened when cleaning the capping
unit or the carriage.
Operation panel
Equipped with LEDs and LCD to display the
printer status, and buttons to set functions.
Media clip (option)
After cutting the media, clip it
to not let it fall.
Media cutter blade (option)
It cuts the media.
