Operating conditions

Installation and maintenance space

Adequate space is required around the printer for replacement of consumables and parts, print processing, and

ventilation during normal operation and maintenance.

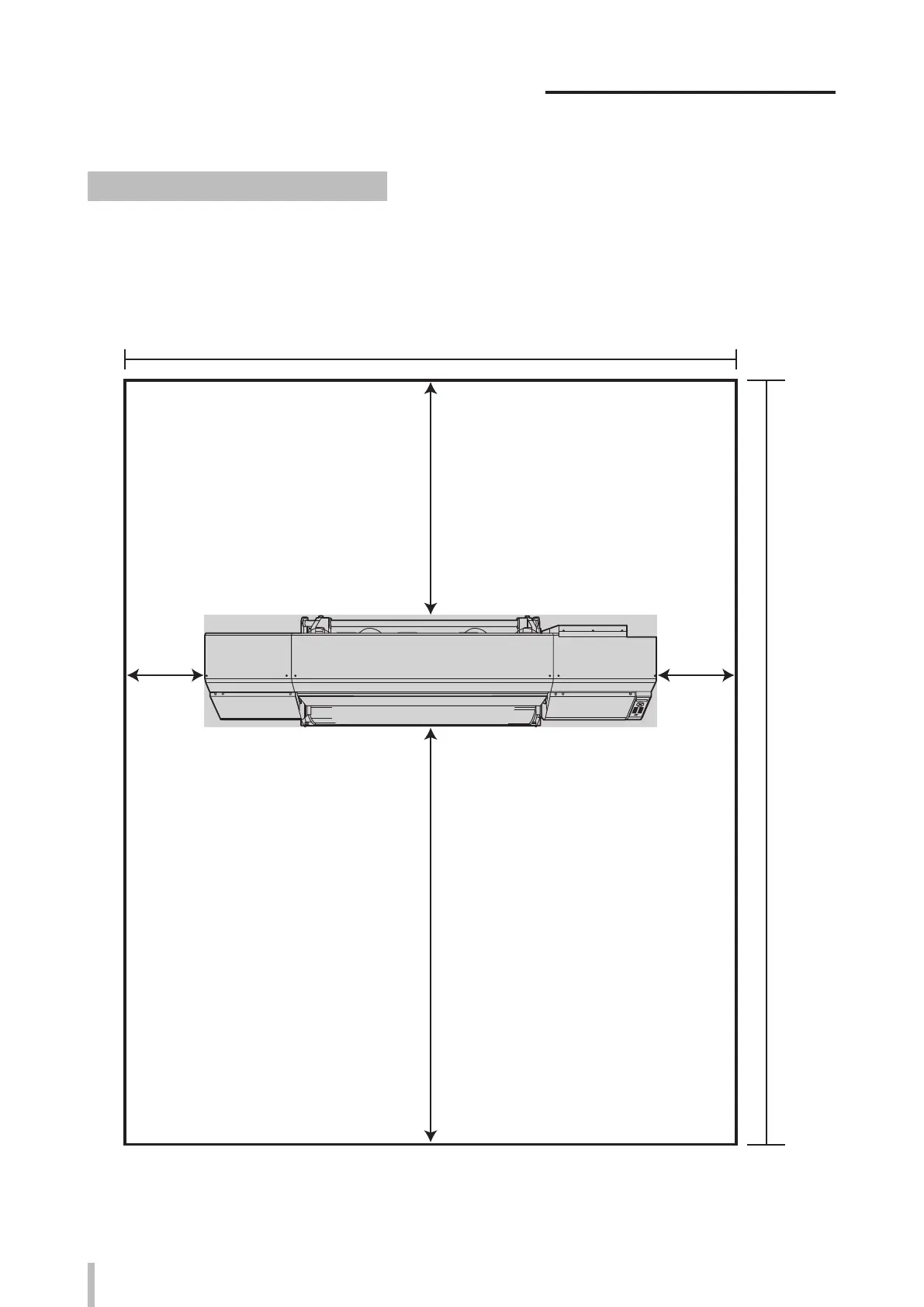

Secure the space shown in the gure below.

1000

CIS: 3900*6100

LCIS: 4200*6400

3940

400

*1500

400

*1500

2000

(Front side)

Secure 2200 mm in the horizontal direction.

* : Maintenance space

(Unit: mm)
