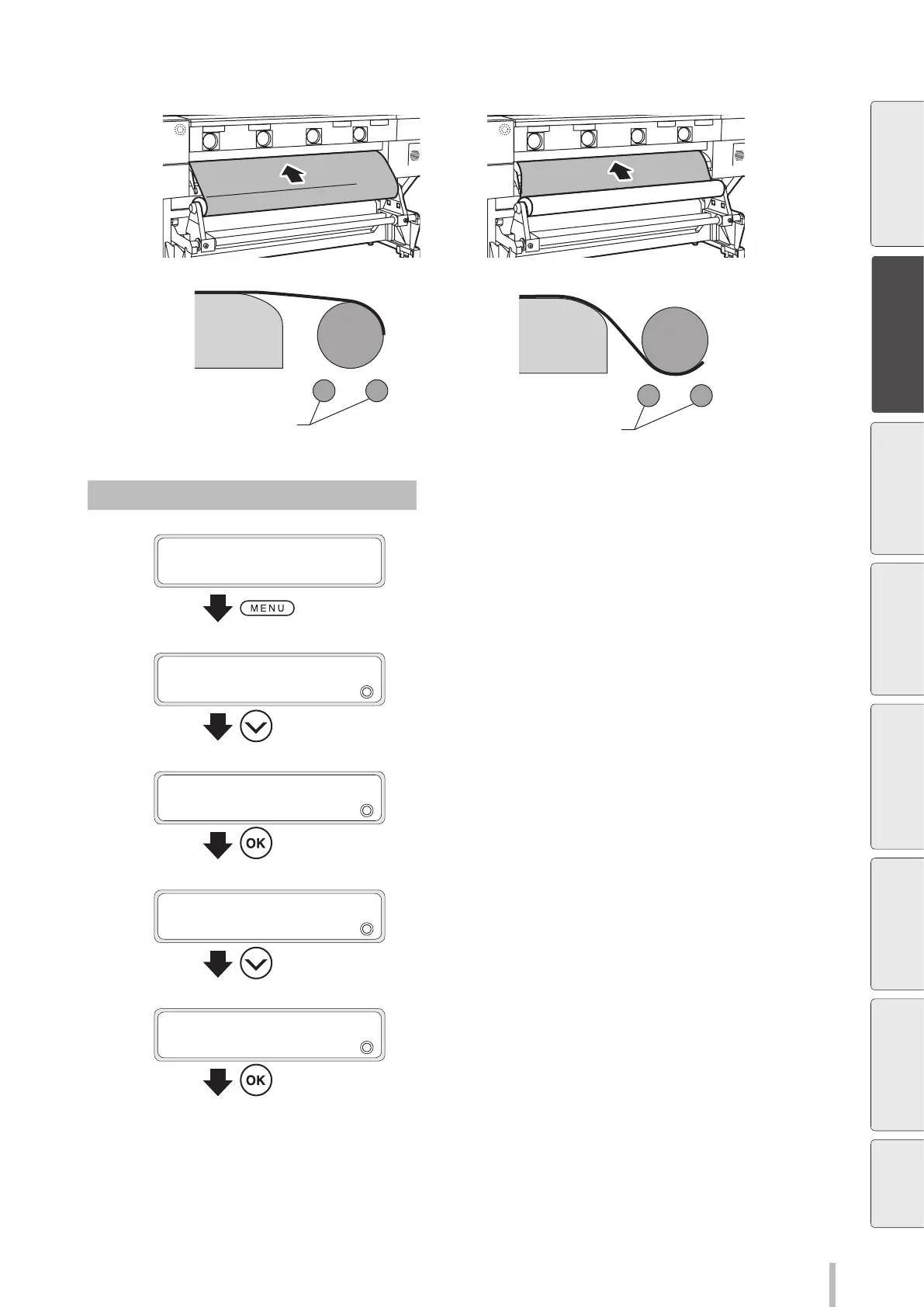

Loading the media

<When the surface to be printed on is

at the outer side of the roll>

<When the surface to be printed on is

at the inner side of the roll>

Rear paper guide

Feed unit tubes

Roll media

Rear paper guide

Feed unit tubes

Roll media

Procedure to monitor remaining media

PRINTER READY

01: PAPER / 1626mm

Press the MENU button.

INFORMATION

Press the Down button to select EDIT MEDIA

PRESETS.

EDIT MEDIA PRESETS

Press the OK button.

>EDIT MEDIA PRESETS

SELECT PRESET NO.

Press the Down button to select MISC

SETTINGS.

>EDIT MEDIA PRESETS

MISC SETTINGS

Press the OK button.

Before printing

Loading the media

Adjustment Maintenance

Advanced

operations

Troubleshooting Menu tree Appendix
