Performing sheet mount cleaning

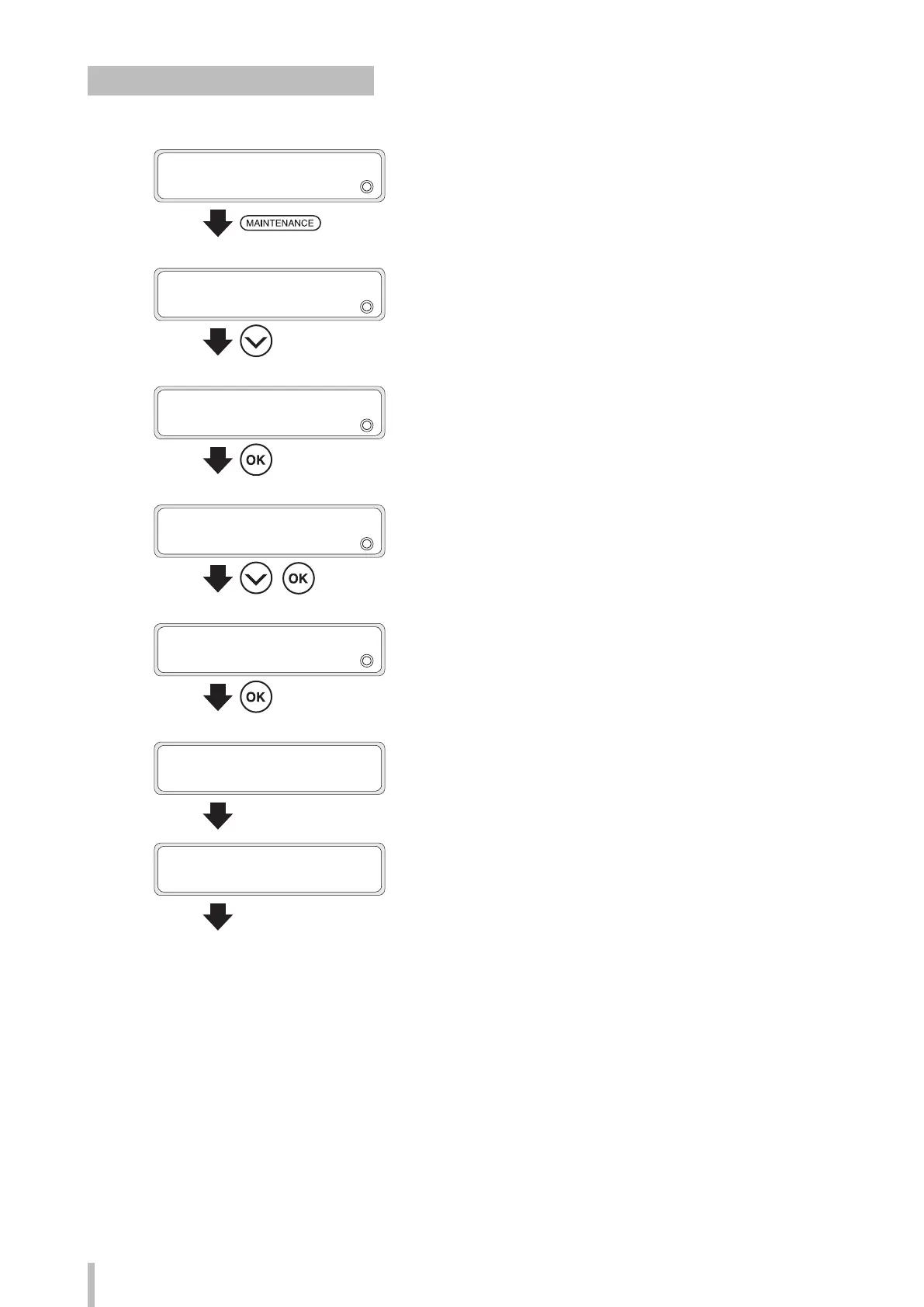

Perform the operation following the instructions below.

PRINTER READY

01: PAPER / 1626mm

Press the MAINTENANCE button.

MAINTENANCE

START MAINTENANCE

Press the Down button to select PH

MAINTENANCE.

MAINTENANCE

PH MAINTENANCE

Press the OK button.

>PH MAINTENANCE

SHEET MOUNT CLNG

Press the Down button to select SHEET

MOUNT CLNG, and then press the OK button.

>>SHEET MOUNT CLNG

OK?

Press the OK button.

CARRIAGE IS MOVING

PLEASE WAIT

Carriage stops moving.

The carriage moves to the maintenance position.

OPEN COVERS

Open the front cover, and then the Capping

unit cover.
