166

Advanced operations

Displayed in the unit set in the length unit menu.

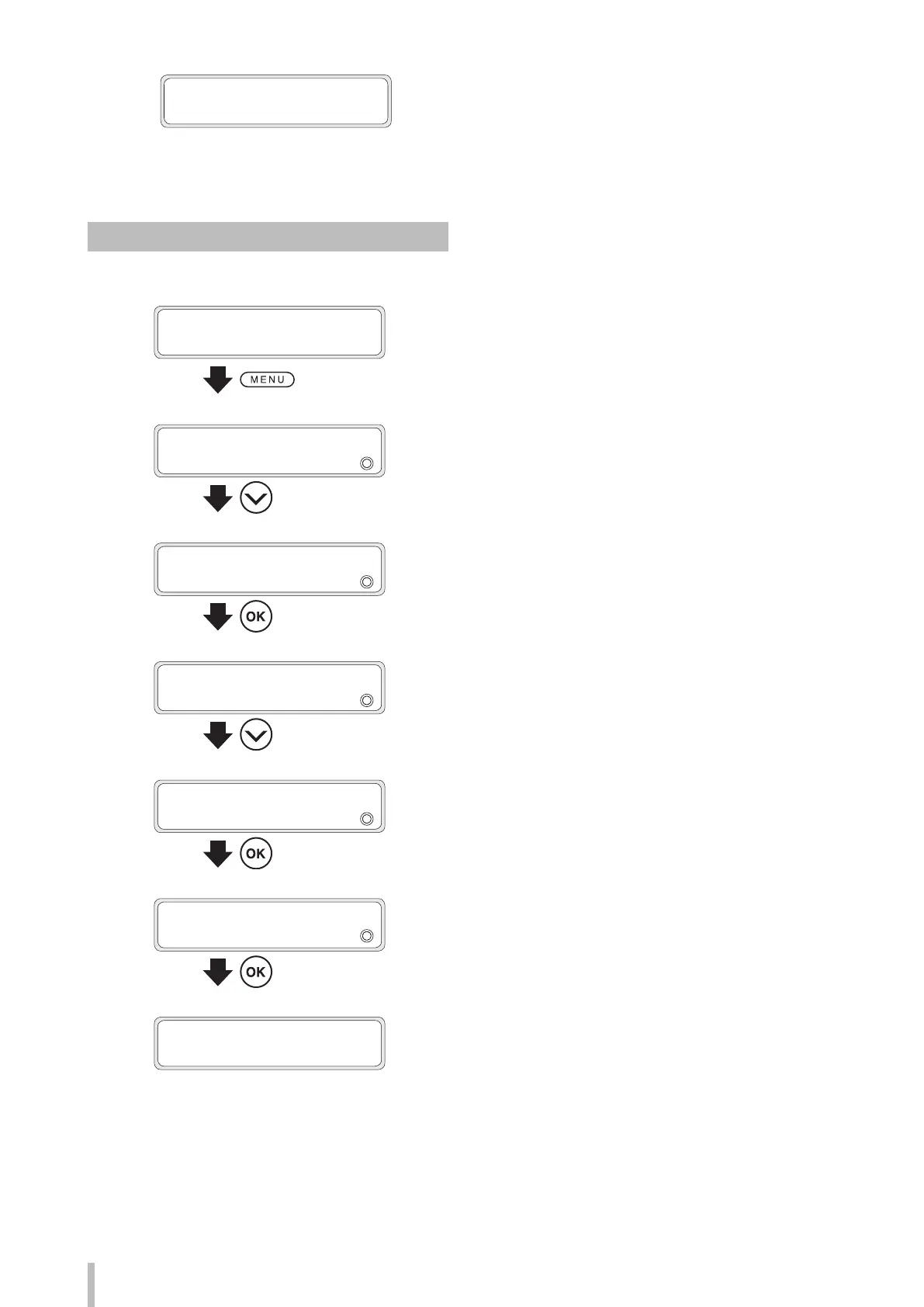

>>TOTAL PRINT LENGTH

YYYYYm

Check the ink amount extension chip (LCIS)

PRINTER READY

01: PAPER / 1626mm

Press the MENU button.

WARNING INFO

Press the Down button to select INK

AMOUNT EXTENSION.

INK AMOUNT EXTENSION

Press the OK button.

>INK AMOUNT EXTENSION

AVAILABLE INK

Press the Down button to select CHECK CHIP

DATA.

>INK AMOUNT EXTENSION

CHECK CHIP DATA

Press the OK button.

>>CHECK CHIP DATA

OK?

Press the OK button.

INSERT EXT. CHIP

PRESS CANCEL TO QUIT
