Adjustment

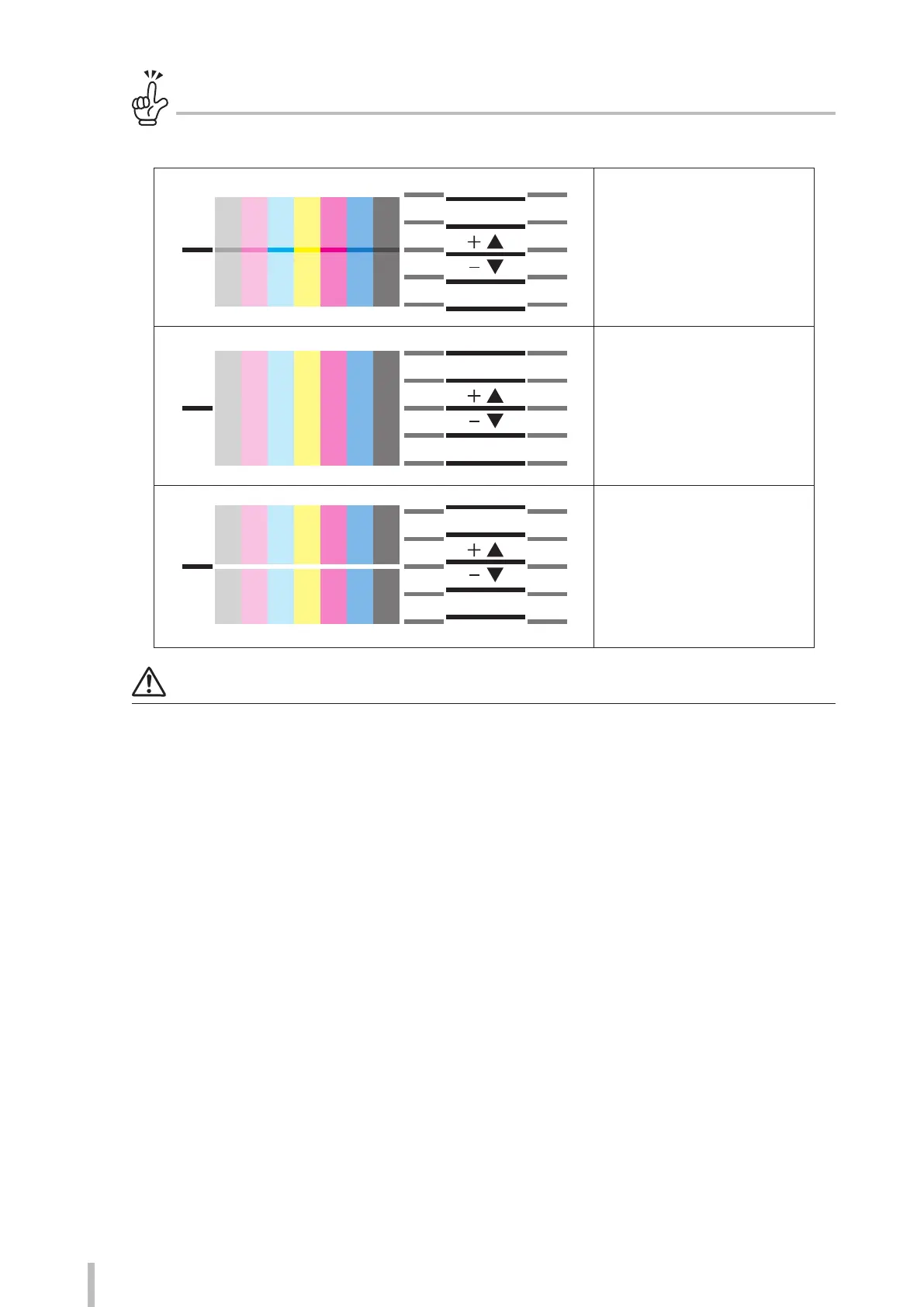

Check the media advance adjustment pattern

When the media advance

adjustment value is too low.

When the media advance

adjustment value is correct.

When the media advance

adjustment value is too high.

Notes



If the correct media advance adjustment value diers between the media right and left sides, set the average value.



If the correct media advance adjustment value diers between the media right and left sides, it may be caused by a skewed

media.

Check that the media has not skewed.
