APPLIED OPERATIONS/Image Analysis
OPERATION INSTRUCTIONS
2-275
Page
2-7-1 Checking the Intensity of a Specific Part
2-7-1-1 Intensity Values on a Line (Line Profile)
The intensity values on a line in an image can be displayed graphically.
1. Display the [Single] sub-panel at the front.
2. Display the image window of the image to be subjected to the intensity checking at the
front.
3. Click the <Annotate> button in the toolbar. A list of buttons appears as shown below.
4. From the displayed buttons, click the <Line> button, <Poly Line> button or <Free Line>
button.
5. Specify the straight line, polygonal line or free line on the image in the image window.
They can be specified as described below.
z To specify a straight line:
On the image, place the mouse pointer on the point you want to start the straight
line and drag until the point you want to end it.
z To specify a polygonal line:
On the image, click the points corresponding to the start point, peak points and
end point of the desired polygonal line, then click the right button of the mouse to
set the specification.

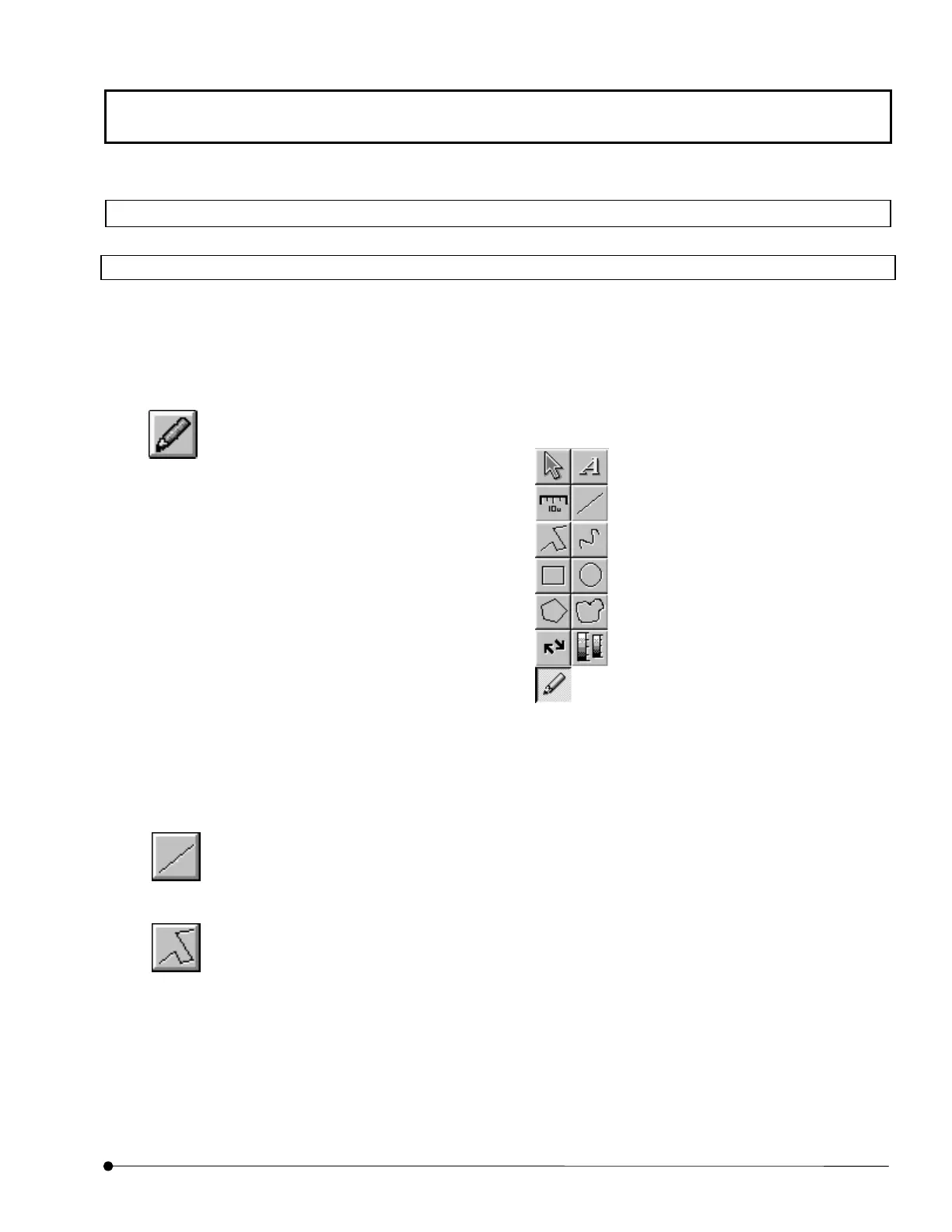

<Annotate> button
<Line> button
<Poly Line> button
