The following figure explains the contact travel characteristics defined in Table 17-88: "Contact travel
characteristics" later in this section.

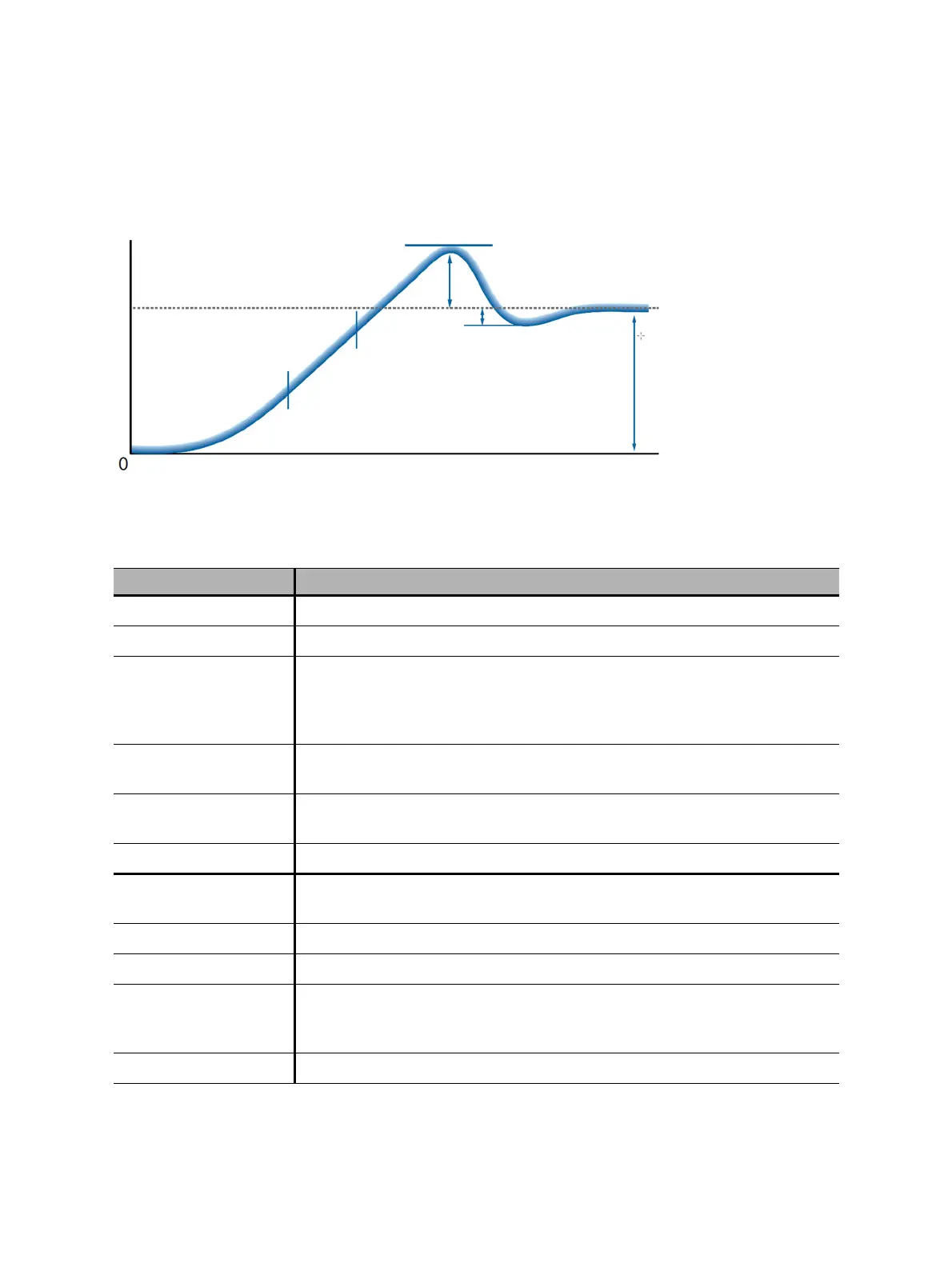

Figure 17-54: Contact travel characteristics
Table 17-88: Contact travel characteristics
1
1. Only available for O and C sequences
Data Description
Module Name of the CB TN3 module set in the hardware configuration
Channel Channel of the CB TN3 module
Total travel Total distance traveled by the contact during operation (excluding possible
over-travel).
The row labeled with the CB TN3 channel displays the maximum of all
measurement results for this channel.
Over-travel Contact travel distance between the maximum contact travel and the final
contact resting position
Rebound Contact travel distance between the minimum contact travel after returning
from an over-travel and the final contact resting position
Assessment Measurement assessment
Velocity zone definition Time period within which the contact travel velocity is evaluated
(see 15.4 "Velocity zones" on page 113)
v meas Measured velocity of the contact travel within the velocity zone
Information Information about the measurement
Damping distance
2
2. Only available for O sequence
Distance the contact travels while damping is effective (see Begin of
contact damping settings in Table 17-16: "Advanced settings of the
Timing test" on page 142)
Assessment Measurement assessment
Open
position
Total
travel
Close
position
Velocity
Rebound
Over-travel
