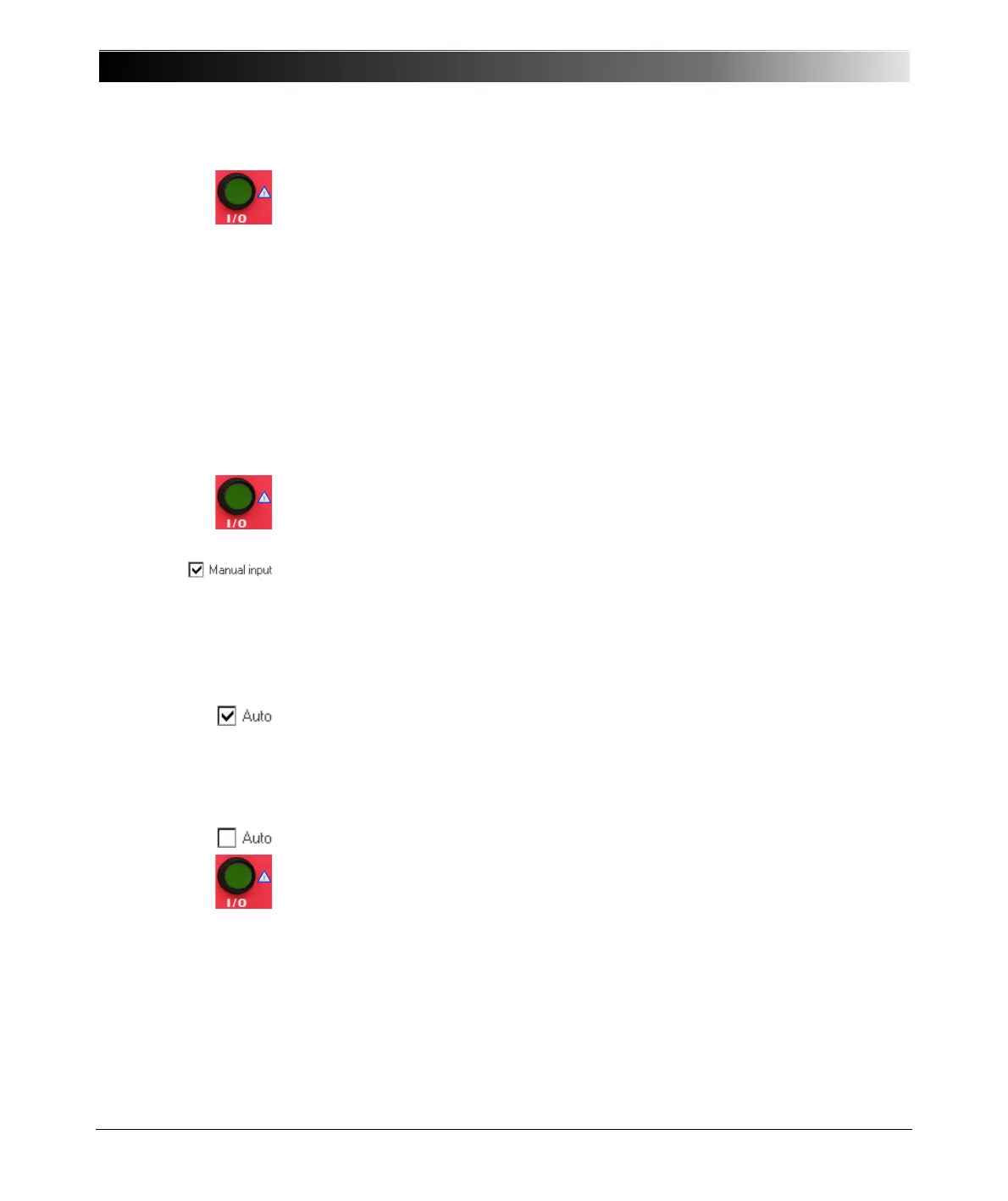

CPC 100 V1.41
5 - 6
Press the I/O (test start/stop) push-button to start the test. The focus is set
onto the "V test:" entry field.
Set the value of your choice either by turning the handwheel and/or by
entering it with the numerical keys.
Now the measurements are taken and displayed.
To save the measurement press K
EEP RESULTS (pressing the I/O push-
button has the same effect). The last measured values are "frozen", the test
can now be assessed.
Stop the manual test by pressing the I/O (test start/stop).
To repeat the test, first press B
ACK TO T OP, if applicable, and then C LEAR
R
ESULTS.
2. Option "Manual input" selected
Manual test
Clearing "Auto" lets you set the test voltage Vtest manually with the handwheel.
Press the I/O (test start/stop) push-button to start the test. The focus is set
onto the "V test:" entry field.
Set the value of your choice either by turning the handwheel and/or by
entering it with the numerical keys.
Note: A value set with the numerical keys needs to be fully entered and
acknowledged by pressing either E
NTER or the handwheel before
it is applied to the output. If needed, it can then be adjusted using
the handwheel.
Values set by turning the handwheel are applied instantaneously.
Note: Select "Manual input" prior to starting the test. If the test card still
contains results, clear them by pressing C
LEAR RESULTS.
When "Manual input" is selected, there is no phase available.
Consequently, neither the polarity nor the phase angle can be
calculated.
Since an automatic test only lasts a very short period of time, and a
manual measurement is rather difficult, an automatic test with a
manual measurement is not useful. Therefore, this Reference Manual
will not cover this subject.
Note: A value set with the numerical keys needs to be fully entered and
acknowledged by pressing either E
NTER or the handwheel before
it is applied to the output. If needed, it can then be adjusted using
the handwheel.
Values set by turning the handwheel are applied instantaneously.
