Omicron CPC 100 Reference Manual

CPC 100 V1.41
7 - 4

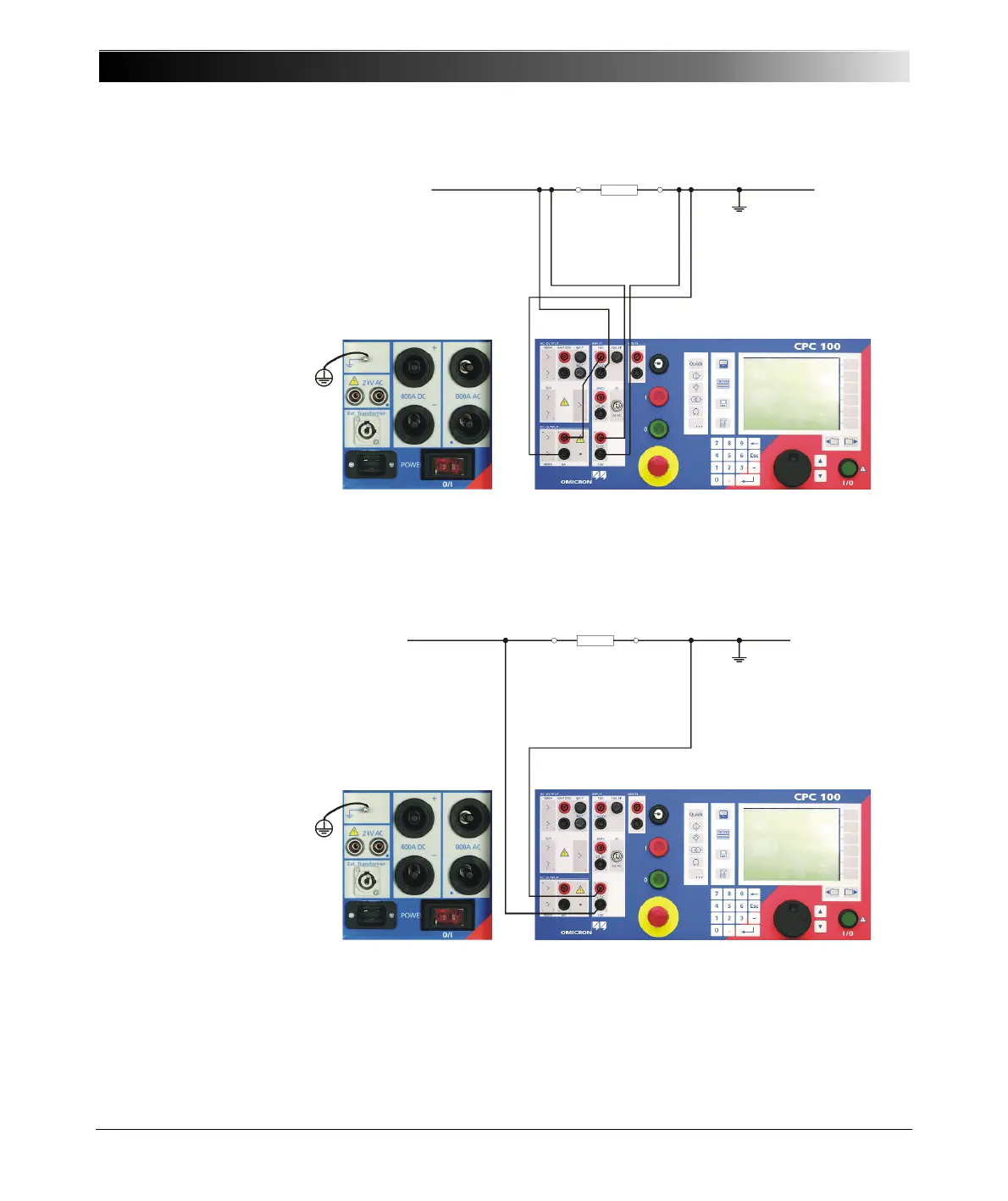

Figure 3:
Setup for a mΩ
measurement in the
6A DC range
Inject current from 6A DC output to both sides of the test object. To measure this
current, route it via the IAC/DC input as shown in Figure 3. Input VDC measures
the voltage drop at the test object, and from these values the software calculates
the test object’s resistance.
Figure 4:
Setup for a Ω ...kΩ
measurement in the
VDC (2 wire) range
At this range, the DC input VDC works as a combination of DC output and DC
measuring input, that is, it injects current to both sides of the test object,
measures this current internally, and also measures the voltage drop at the test
object at the same time. The software calculates the test object’s resistance.
