Resistanc
e
7 - 19
Table 1:
Typical resistance of
common soil types

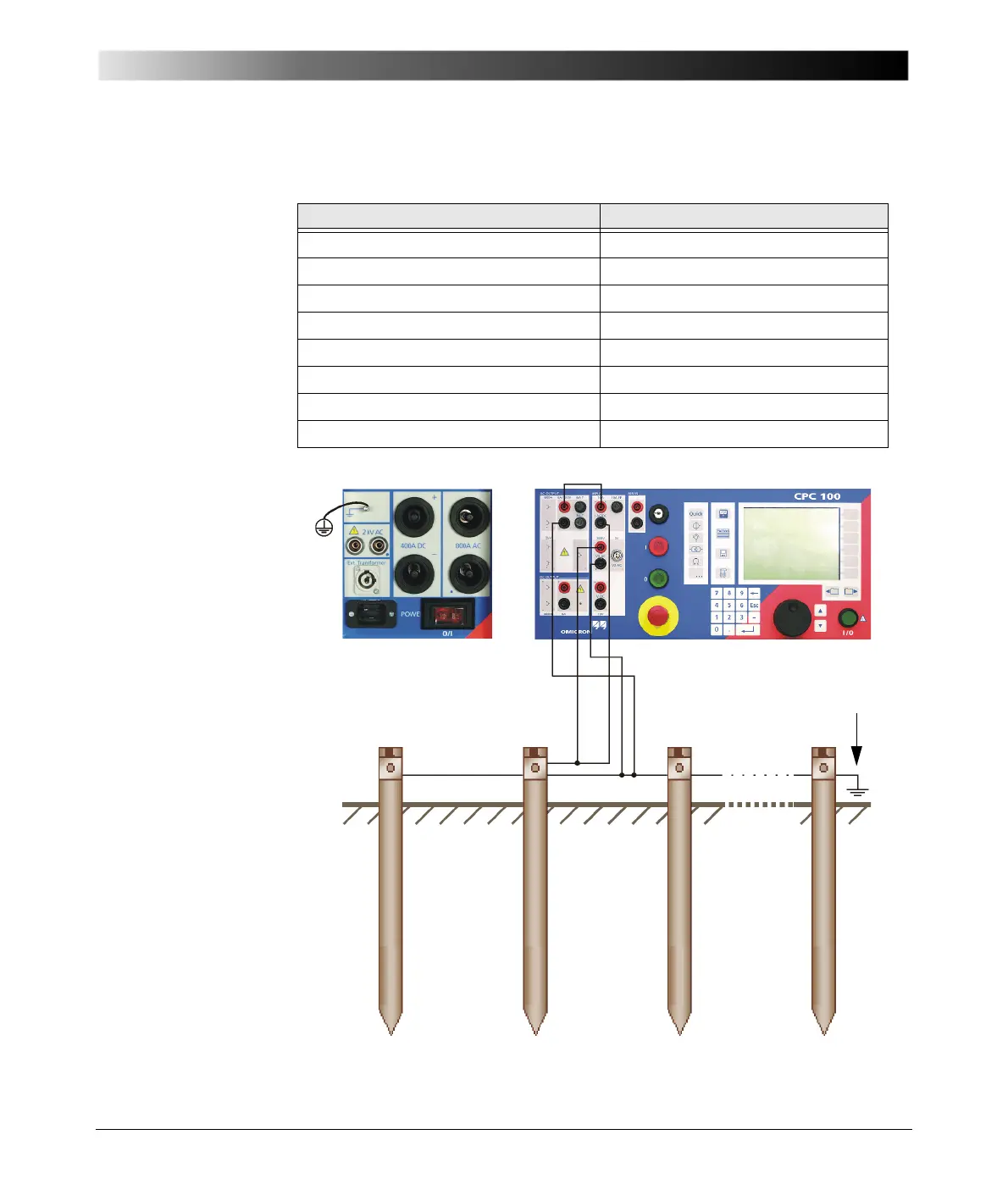

Figure 12:
Measuring the
resistance of a single
ground rod
Soil Type
Soil Resistivity
Moor
, marsh, very moist soil
1…50
Ω
m
Loess, clay
20…100
Ω
m
Humus, acre
10…200
Ω
m
Sandy clay
50…500
Ω
m
Glass sand
200…3000
Ω
m
Rock
300…5000
Ω
m
S
tony
, grassy soil
100…300
Ω
m
Granite, freestone
1500…10000
Ω
m
Substation
ground
ground
rod 1
ground
rod 2
ground
rod 3
ground
rod n
212
214
Table of Contents
Table of Contents
3
Preface
13
About this Reference Manual
13
Glossary of Symbols and Terms
14
Used Symbols
14
Used Terms
15
Safety Instructions for CPC 100 and Its Accessories
17
Orderly Measures
17
Principle Use According to Regulations
17
Operator Qualifications and Primary Responsibilities
18
Power Supply
18
Safe Operation
18
General
19
DC Output to Test Objects with a High Inductance
20
High-Voltage and High-Current Outputs
21
Changing Fuses
23
CPC 100 in Combination with CP TD1
24
Designated Use
25
Functionality of CPC 100
25
CPC 100 Versions
27
Introduction
29
Functional Components of CPC 100
30
Front Panel
30
High-Voltage and High-Current Outputs
31
Epc Interfaces
32
Functional Components in Detail
34
CPC 100 Block Diagram (Simplified)
41
Built-In Epc
42
How to Use the CPC 100 Software
45
The Principles of Test Cards and Test Procedures
45
Starting the Software
48
View Selector
49
Accelerator Keys
50
Test Card View
50
Inserting Test Cards
51
Setting up a Test Card
53
Settings Page
56
Starting a Test
57
Temperature Monitoring
58
Test Procedure Overview
59
File Operations
60
Options
61
Creating Defaults and Templates
70
Putting CPC 100 into Operation
74
Safety Aspects
74
Preparations in Substation
74
Principle Steps to Carry out a Test with CPC 100
75
Getting Started with Quick
77
About Quick
77
Measurement Settings
79
The Frequency-Selective Measurement
82
Power Output Settings
83
Trigger Settings
87
Current Transformer
91
Scope of Current Transformer Tests
92
CT Ratio (and Burden)
93
Testing Ratio, Polarity (and Burden) with Injection to Current Input
93
Testing Ratio, Polarity (and Burden) with a Current Clamp
100
CT Burden
101
Test Settings
102
Measurements
102
Automatic Test Vs. Manual Test
103
CT Excitation (Kneepoint)
105
Test Settings
106
Automatic Test Vs. Manual Test
107
Demagnetization
109
Winding Resistance
110
Test Settings
112
Measurements
113
The "Temperature Compensation for Cu" Option
114
Voltage Withstand Test
115
Test Settings
116
Measurements
117
Polarity Check
118
Test Settings
120
Carrying out the Polarity Check
121
Customizing Test Point Names
122
CT Ratiov (with Voltage)
123
Test Settings
124
Measurements
125
Automatic Test Vs. Manual Test
126
CT Rogowski (Ratio)
128
Test Settings
129
Measurements
130
Automatic Test Vs. Manual Test
131
CT Low Power (Ratio)
133
Test Settings
134
Measurements
135
Automatic Test Vs. Manual Test
136
Tandelta
138
Voltage Transformer
139
Scope of Voltage Transformer Tests
140
VT Ratio
141
Test Settings
142
Measurements
143
Automatic Test Vs. Manual Test
143
VT Burden
146
Test Settings
147
Measurements
148
Automatic Test Vs. Manual Test
148
Voltage Withstand Test
151
Test Settings
152
Measurements
153
Polarity Check
154
Test Settings
156
Carrying out the Polarity Check
157
Customizing Test Point Names
158
VT Electronics
159
Test Settings
160
Measurements
161
Automatic Test Vs. Manual Test
162
Tandelta
164
Transformer
165
Scope of Transformer Tests
166
Trratio (Per Tap)
167
Test Settings
171
Measurements
174
Carrying out a TR Ratio Test (Per Tap)
175
Winding Resistance
177
Test Settings
179
Measurements
180
The "Temperature Compensation for Cu" Option
181
Trtapcheck (for OLTC)
182
Test Settings
185
Measurements
186
Examples Using the Trtapcheck Test Card
187
Voltage Withstand Test
190
Test Settings
191
Measurements
192
Tandelta
193
Resistance
195
Scope of Resistance Tests
196
Resistance - Μ Measurement
197
Resistance - Μω Measurement
197
Test Settings
199
Measurements
200
Automatic Test Vs. Manual Test
200
Winding Resistance
203
Test Settings
205
Measurements
206
The "Temperature Compensation for Cu" Option
207
Rground
208
Voltage Withstand Test
216
Test Settings
217
Measurements
218
Others
219
Scope of Others
220
Sequencer
221
Defining a Sequence of States
222
Testing an Overcurrent Relay with ARC Function
229
Measuring a CT Ratio at Different Current Magnitudes
232
Generating an Intermittent High-Current Output
234
Ramping
236
Defining a Ramp
237
Testing Pickup/Dropoff Value of an Overcurrent Relay
245
Amplifier
247
Amplifier Use Case: GPS-Synchronized 3-Phase System for End-To-End Testing
249
Comment
251
Form Editor - Text Editor
252
Tandelta
254
File Operations
255
File Operations
256
File Operations
255
The CPC 100 File System
255
Main File Operations Menu
256
Navigating through the File System
256
The Menus
256
Submenu Edit
257
Submenu File
257
The CPC 100 File System
261
Common Functions
259
Test Assessment
260
S a V E
261
The String Editor
261
The Template Strings
262
Contents of this Section
265
CPC 100 in a Network
265
General
266
Setting the Communication Parameters
267
Cpc 100
267
Dhcp/Auto-IP
267
Static IP
267
Default Gateway
268
Dns
268
IP Address
268
Subnet Mask
268
PC or Notebook
269
DHCP Allocator Service
271
Firewall and Anti-Virus Software
271
Setup for Windows 2000, Vista, XP
272
Omicron Device Browser
273
General
274
Installation of the OMICRON Device Browser Software
274
Computer Requirements
274
Installing the OMICRON Device Browser
274
Using the OMICRON Device Browser
275
Starting the OMICRON Device Browser
276
Viewing Test Files
277
Upgrading and Configuring the Network of the CPC
277
Cpc Explorer
285
General
286
Installation of the CPC Explorer Software
286
Computer Requirements
286
Installing CPC Explorer
287
Using CPC Explorer
288
Starting CPC Explorer
289
Finding Connected CPC 100 Units
290
Viewing Files
290
Viewing Test Reports
290
Viewing the License File
295
Viewing the Log File
295
Transferring Files and Folders
296
Downloading Files from CPC 100 to Your PC
296
Uploading Files from Your PC to CPC 100
296
Upgrading the CPC 100 Software
297
Options
299
Default Stylesheet
299
Language
299
Saving a Test to PDF Format
300
PDF Generators
300
Cpc Editor
301
General
301
Installation of the CPC Editor Software
302
Computer Requirements
302
Installing CPC Editor
303
Working with CPC Editor
304
Appending a Test Card
305
Inserting a Test Card
306
Inserting from File
306
Copying a Test Card
307
Renaming a Test Card
308
Saving a Test
308
Saving a Test as Template
308
Deleting a Test Card
309
Preparing a Test Offline with a PC
310
Excel CPC 100 File Loader
313
General
313
Installation of the Excel CPC 100 File Loader Software
313
Computer Requirements
313
Installing Excel CPC 100 File Loader
313
Working with Excel CPC 100 File Loader
314
Template Usage
315
Technical Data
317
General
318
Technical Data
320
Power Supply
320
CPC 100 Outputs
321
800A AC Output
321
High-Current and High-Voltage Outputs
321
400A DC Output
323
2Kv AC Output
324
6A / 130V AC Output - All Ranges
331
Outputs on the CPC 100 Front Panel
331
6A DC Current Output
334
Output "Ext. Booster" (Option)
335
Output to Input Synchronization
336
CPC 100 Inputs
337
BIN in Binary Input
337
10A IAC/DC Input
338
300V V1 AC Input
339
3V V2 AC Input
341
10V V DC Input
343
CPC 100 Combined Specifications
344
Resistance Measurement
344
Epc Interfaces
345
Network Interface (CPC 100 V1 Only)
345
PC and Network Interfaces (CPC 100 V0 Only)
345
USB Interface (CPC 100 V1 Only)
345
Serial Interface Connector
346
Connector for External Safety Functions
347
Environmental Conditions
348
Climate
348
Shock and Vibration
348
Safety Standards, Electromagnetic Compatibility (EMC)
349
Weight and Dimensions
349
Accessories
351
Default Chapter
352
Test Cards
352
Earth Resistance Accessory Set
353
Current Booster CP CB2
354
Technical Data of CP CB2
355
Operation Modes of CP CB2
356
Ordering Information for CP CB2
358
Polarity Checker CPOL
359
Ordering Information for CPOL
360
Technical Data of CPOL
360
Changing the Batteries in CPOL
361
Current Clamp C-Probe 1
363
Current Clamp C-Probe1
363
Ordering Information for C-Probe 1
363
Cp Sa1
364
Ordering Information for CP SA1
364
Cables
365
Reference Manual
365
Clamps
366
Plugs
366
Assembly Instructions for Odu MINI-SNAP Plug
367
Contact Information / Technical Support
371
Index
373
