Omicron CPC 100 Reference Manual

Others - Ramping
8 - 23

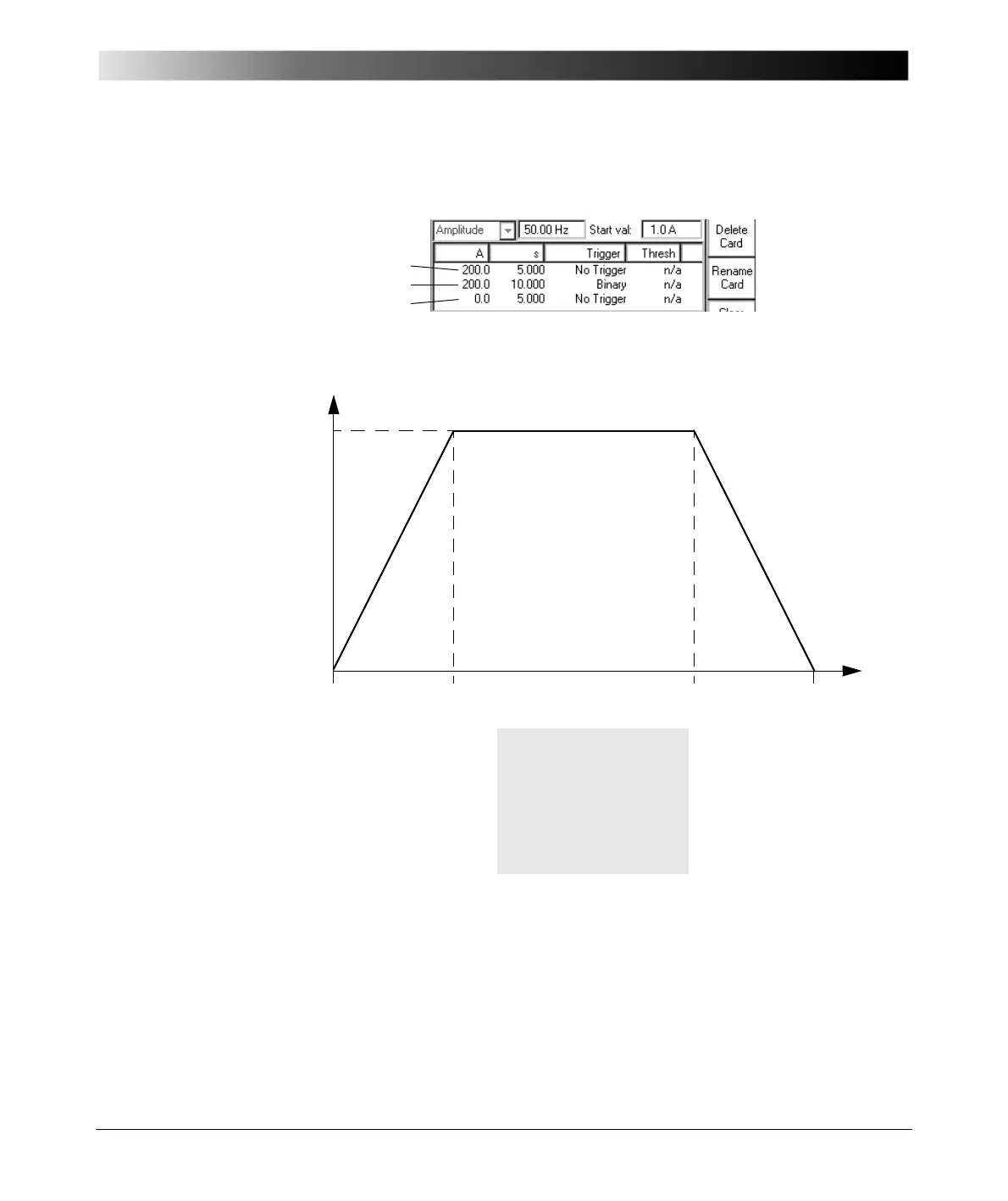

Example of a series of ramps
Figure 17:
A series of three ramps
defined in the ramps
table
The three ramps defined in the ramps table shown above result in an output
signal like this:
Ramp 1
•from 1A
(set at "Start val:")
• to end value 200A
(set in line 1 at column "A")
• in 5 s
(set in line 1 at column "s")
Ramp 2
• from 200A
(end value of ramp 1)
• to end value 200A
(set in line 2 at column "A")
• for 10 seconds
(set in line 2 at column "s")
Ramp 3
•from 200A
(end value of ramp 2)
• to end value 0A
(set in line 3 at column "A")
• in 5 seconds
(set in line 3 at column "s")
Ramp 1
Ramp 2
Ramp 3
t
5s 15s
I
20s
1A
200A
R
a
m
p
1
Ramp 2
R
a
mp
3
0s
