Range

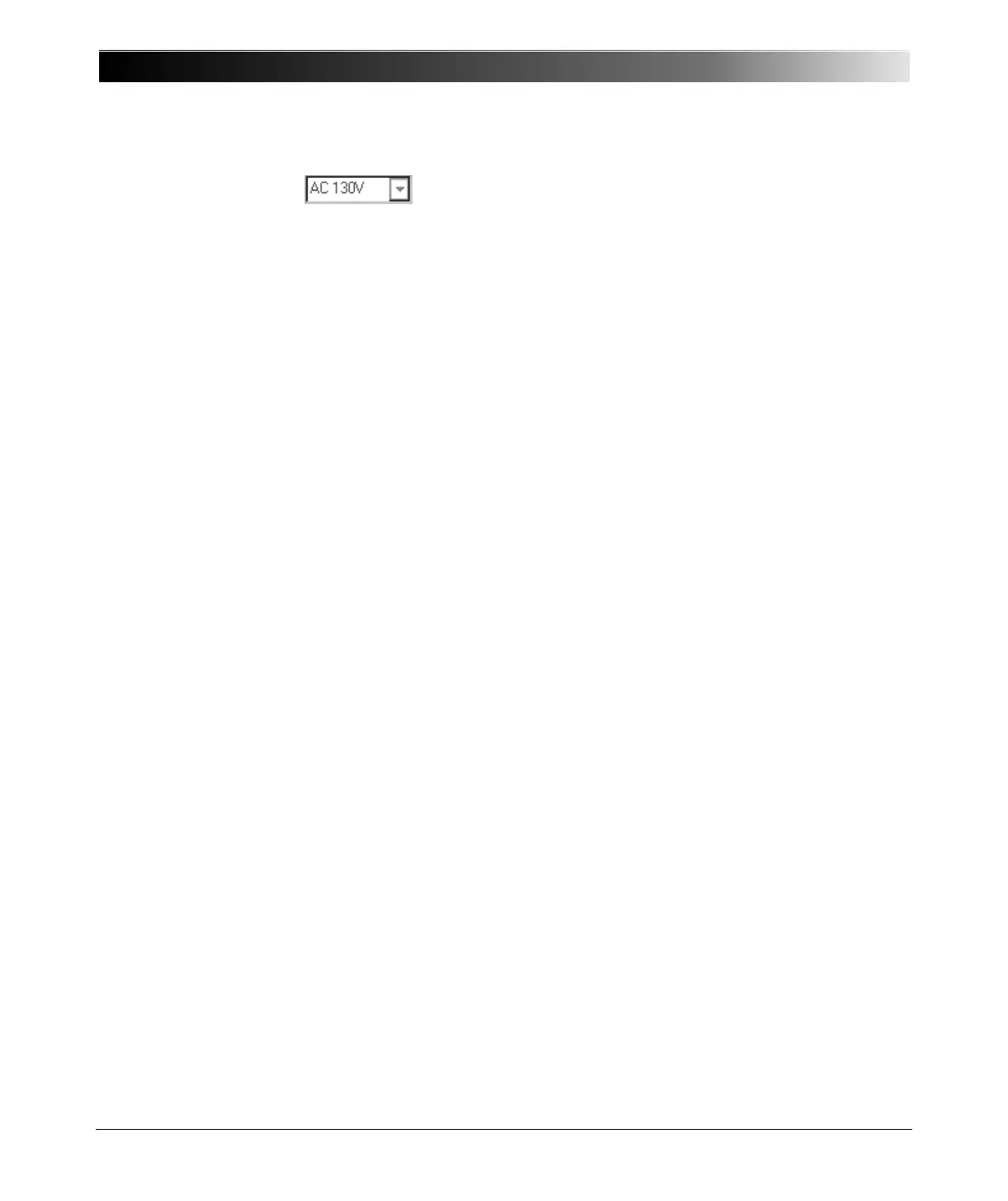

Combo box to select between the output ranges
AC 800A, AC 6A, AC 3A, DC 400A, DC 6A,
AC 2kV, AC 1kV, AC 500V, AC 130V and
CB2:1000A, CB2:2000A or
CU20:10A, CU20:20A or
CU1:10A, CU1:20A, CU1:50A, CU1:100A
Either CB2:, CU20: or CU1: output ranges are available
if the respective external booster was selected at the
Options tab Device Setup (see ”Options” on page 2-33)
or on the Settings page of the Quick test card.
Each range has an associated minimum and maximum
value, a fixed precision value as well as a preset number
of decimal characters (refer also to ”Setting Up a Test
Card” on page 2-25).
If Quick operates in the "on" state, the output range
setting is locked and cannot be changed.
While in the "measuring" state with de-activated outputs,
when a range is changed, the output changes
accordingly to a new value within the allowed range
between minimum and maximum.
After having pressed K
EEP RESULTS, the output
range setting and the measurements settings are locked
and cannot be changed.
