CHAPTER 9 – Animation OMRON
Page 128 Release 2.0
To access the Animation Editor, select the Animation Editor pushbutton from the toolbar.

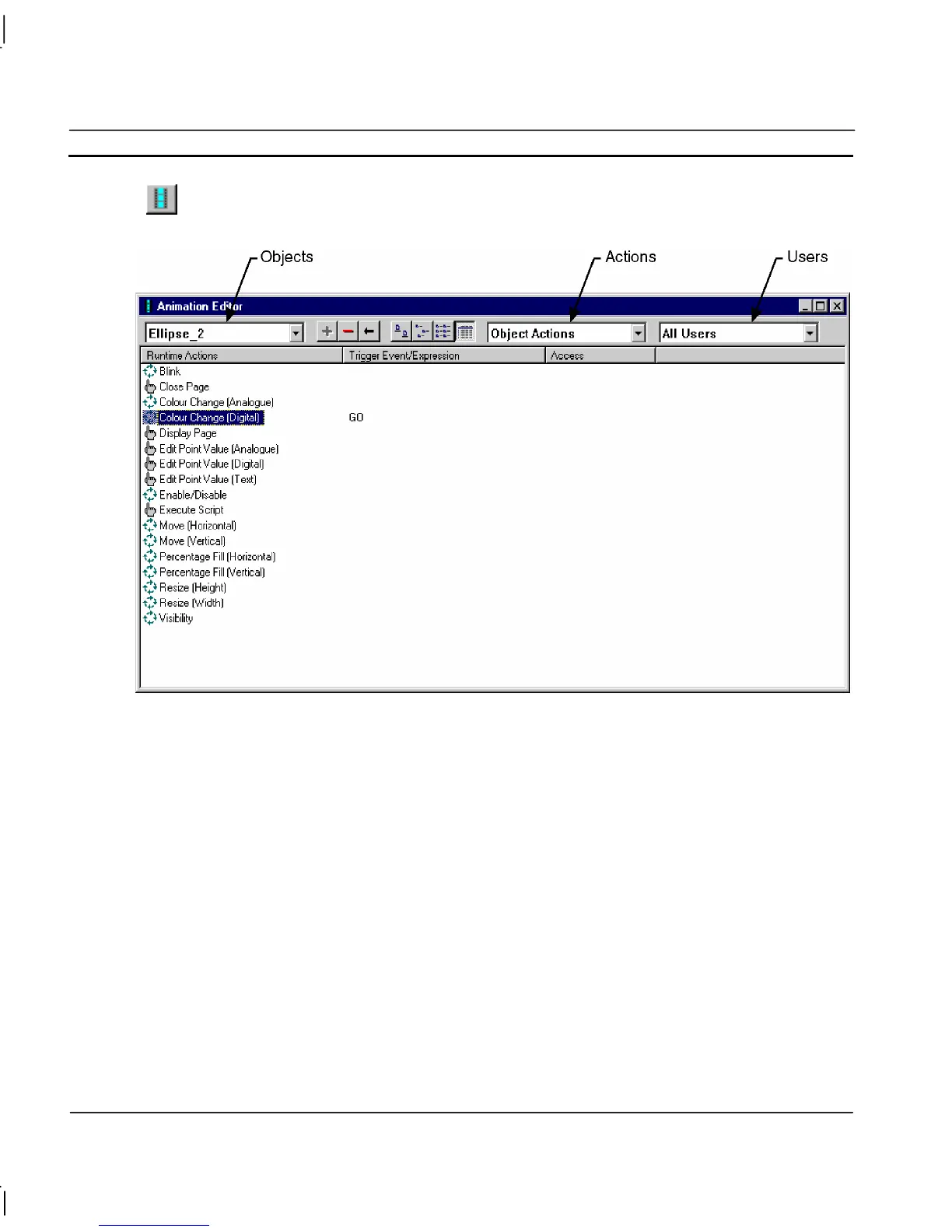

The Animation Editor dialog is displayed:
The Animation Editor dialog lists all possible animation actions in the Runtime Actions column.
Attributable objects for the Runtime Actions are listed in the Trigger Event/Expression column.
Animations can be instigated on a Project, Page or Object basis by selecting Object Actions, Page
Actions or Project Actions from the Actions field. When opening the Animation Editor whilst an
object within a page is selected, the Actions field defaults to Object Actions, and the selected object is
shown in the Animation Editor. When accessing the Animation Editor with a page selected, this field
defaults to Page Actions. When opening the Animation Editor whilst no selection is made, the
Actions field defaults to Project Actions. The actions that may be applied to an object are dependant
on the type of object selected. Only one type of action, Execute Script, can be applied to a Page or
Project script.
The Users field allows selection of which users can use the selected page in the Runtime
environment. This is used in conjunction with allocating users and allowing them permission to
perform tasks; for further information on allocating users refer to chapter 6, Projects.
If Object Actions is the current selection for the Actions field, an object becomes active in the Object
(left-most) field. An object within the current page can be selected from the Object field. The
Runtime Actions list is dependant on the object selected from this box. The Object field is disabled
for Page or Project actions.
