OMRON CHAPTER 4 – Objects
Release 2.0 Page 65
Undo
The Undo button on the toolbar allows the most recent action (or actions) to be undone. To
undo the action, click the Undo button on the toolbar.
The number of undo operations stored by CX-Supervisor for retrieval can be amended from the
Preferences option on the File menu. This is especially useful when constructing complex pages.
Mirror Image
There are various ways of mirroring objects:
• Via the Mirror Horizontal and Mirror Vertical buttons on the toolbar.
• By selecting Mirror from the Edit menu and clicking on either Horizontal or Vertical.
• By clicking on a grab handle and dragging it across the opposite side
Some objects like Text and Control Objects cannot be mirrored. For further details of mirroring
objects refer to chapter 1, Graphics Editor.
Orientation
Lines, Rectangles, Polygons and Polylines can be rotated. To rotate an object, click the
Rotate button on the toolbar.

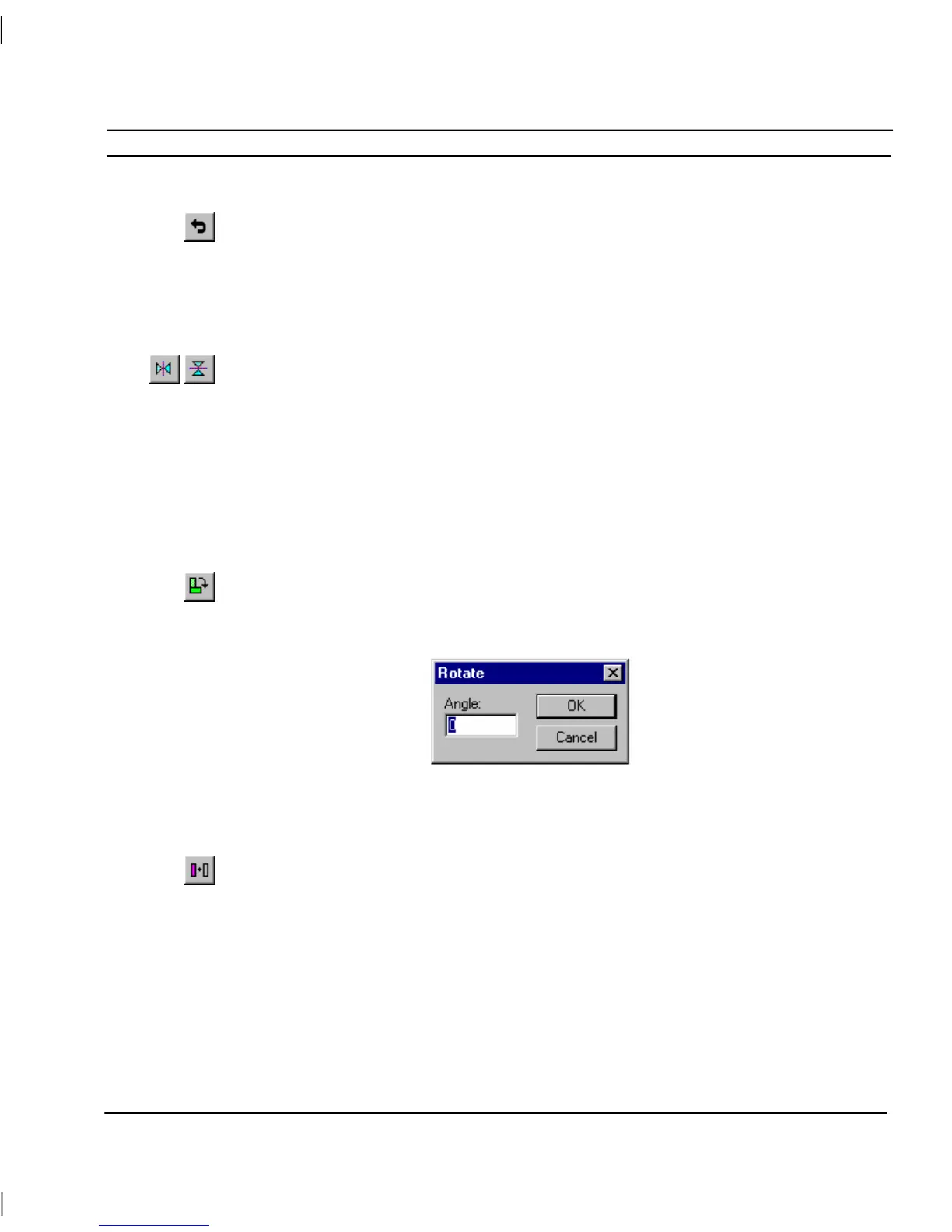

The Rotate Object dialog is displayed:
Enter the angle of rotation in degrees in the value entry box and click the OK pushbutton.
Transparency
Solid shapes, polygons and text boxes can be filled with colours and patterns from the tools
palette. When they are created solid objects are filled with the colour already selected on the
palette. Further details on transparency are contained in chapter 1, Graphics Editor.
Group
When there are a number of objects together they can be moved around in a group, keeping their
relative position.
To group a number of objects, select them, activate the Edit menu and click on Group.
