OMRON CHAPTER 4 – Objects
Release 2.0 Page 55
The colour of the coloured pushbutton is red by default, but can be changed by using the Palette.
Rotary Gauge
A Gauge provides a means of displaying the value of an operation or the value of a point.
Click the Rotary Gauge button, then click or click and drag on the page to insert a gauge.

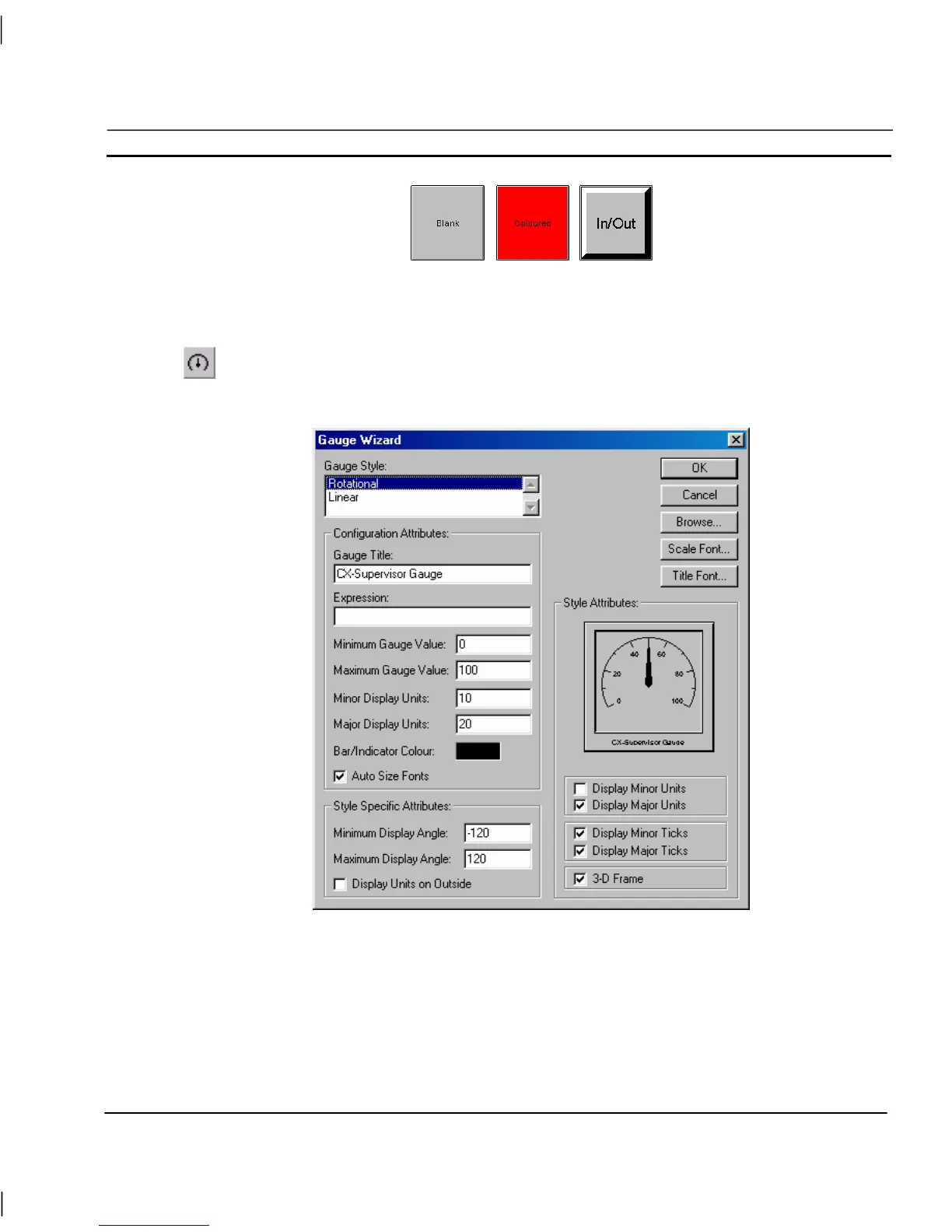

To edit the Rotary Gauge, double click on it. The Gauge Wizard dialog is displayed as follows:
The Wizard allows entry in the Gauge Style:, Configuration Attributes:, Style Attributes: and Style
Specific Attributes: fields.
