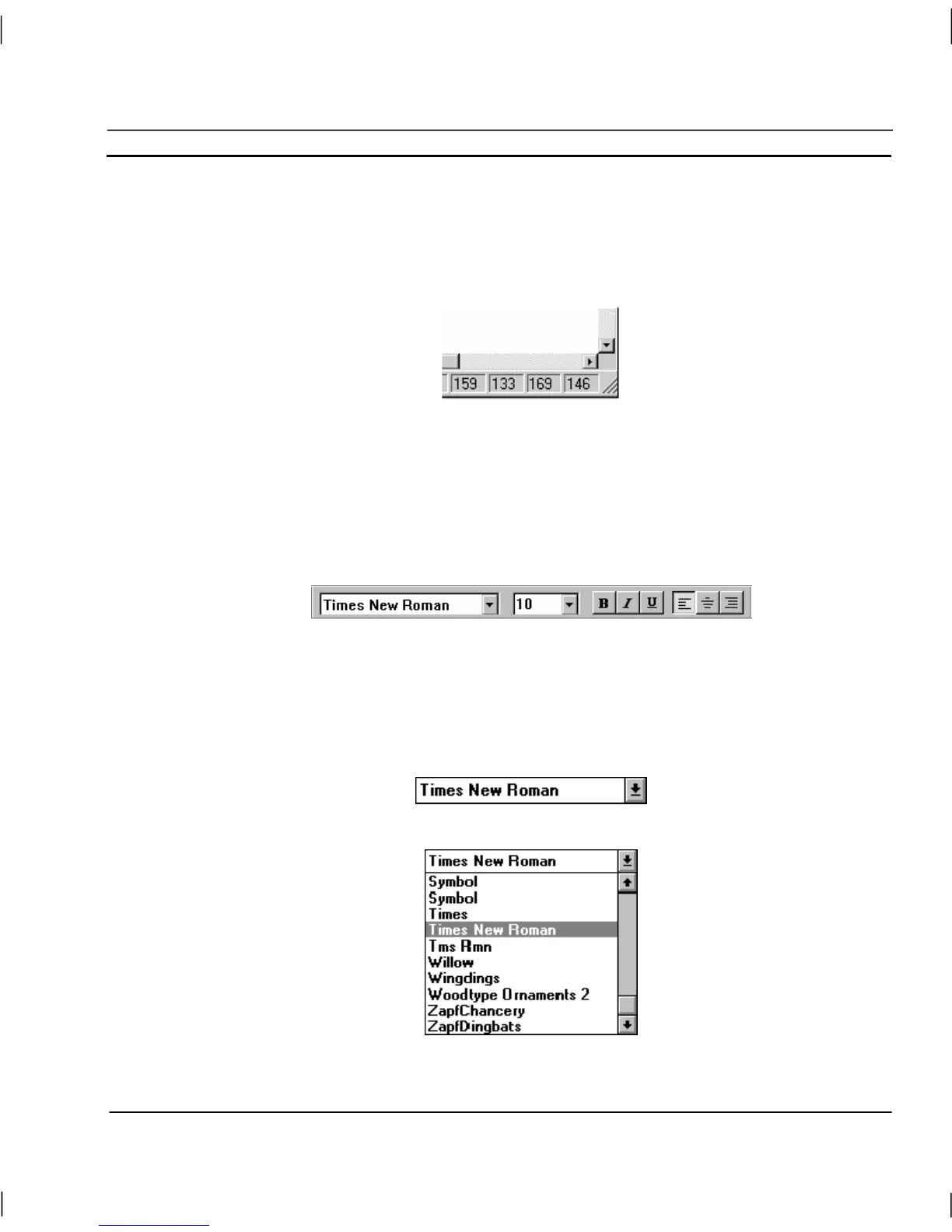

The first two display panels show the current x and y co-ordinates of the mouse pointer within the
currently active page. As the mouse pointer leaves the confines of a page and moves into the client
area of the main CX-Supervisor window, the last recorded co-ordinates are held in these panels.
If an object is clicked on, all four panels are used by CX-Supervisor to display the co-ordinates of
that object, as follows:
x y Width Height
The first two panels contain the distance of the top left corner of the object from the top left of the
page in pixels. The second two panels show the extent of the object in pixels.
Text Bar
An illustration of the CX-Supervisor Text Bar is as follows:
Font Name
The Font Name field contains a list of fonts which are available on the host version of Windows. The
list is presented in alphabetical order, and only details typeface families. This does not include bold
or italic variants as this attribute is set by using the appropriate button.
The following illustration shows the control in de-selected state:
The following illustration shows the control in selected state:
