CHAPTER 11 – Data Logging OMRON
Page 184 Release 2.0
Data Log Viewer Component
Invoking the Data Log Viewer
The Data Log Viewer can be invoked by
Selecting Data Log Viewer from the popup menu (if privileged) in the runtime.
From script function ‘OpenLogView’ with the Data Set and Traces to show as arguments, and also
closed by ‘CloseLogView’ script function.
From an external program.
Viewing Logged Files

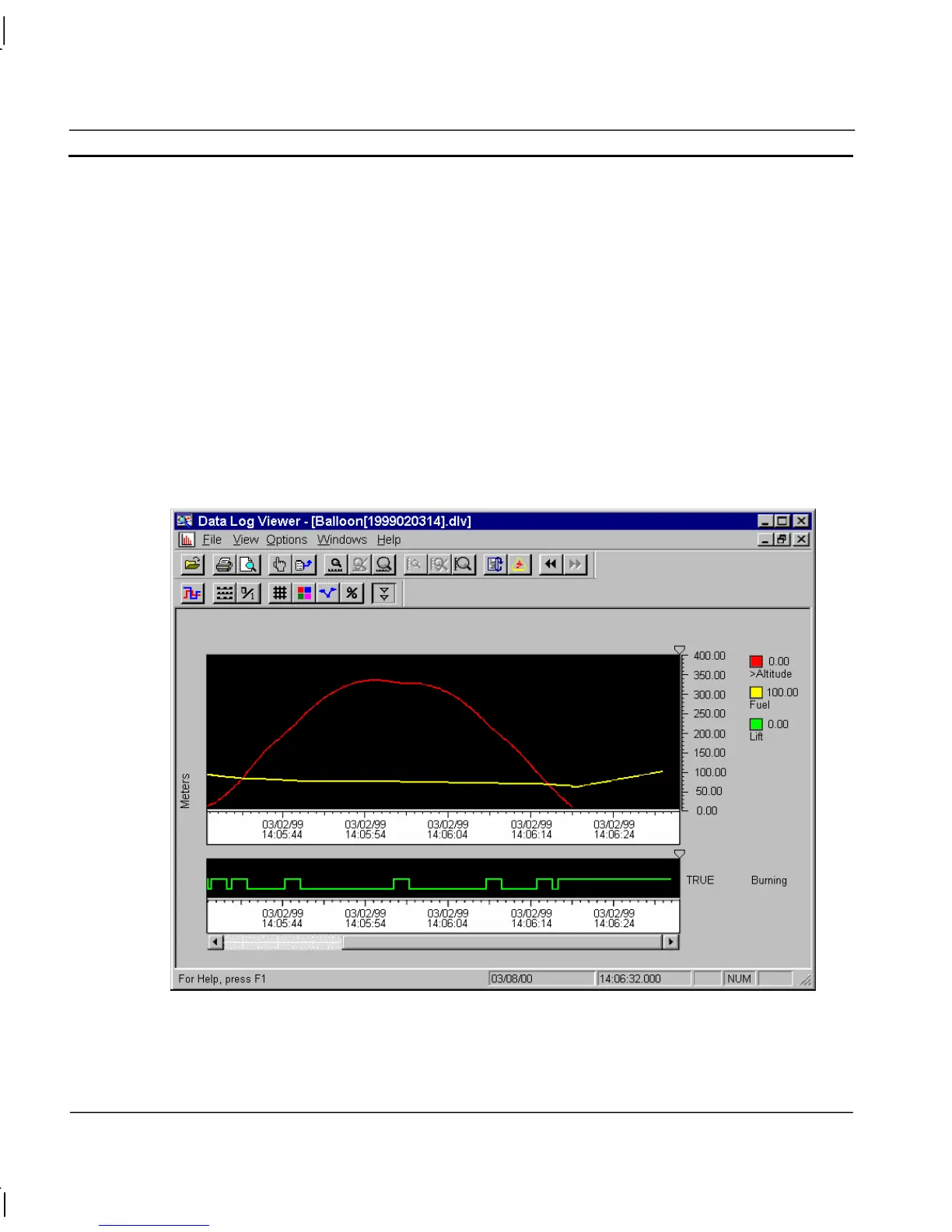

The Data Log Viewer looks like this:
The window shows a graphical representation of the recorded data.
