OMRON CHAPTER 3 – Points
Release 2.0 Page 23
CHAPTER 3
Points
This chapter describes CX-Supervisor points and the procedures associated with the creation,
amendment and removal of points using the Points Editing facility. The application of external
sources to points is also described.
What is a Point?
A point is a variable used internally by CX-Supervisor. All points within CX-Supervisor have a
name, group and type associated with them.
CX-Supervisor provides a set of pre-defined System ($) Points, which are detailed in chapter 3
Points.
About the Point Editor
The Point Editor allows the viewing, creating, modifying and removing of points from the points
database.
Note: System Points cannot be modified.
To open the Point Editor dialog, select the Point Editor button from the toolbar.

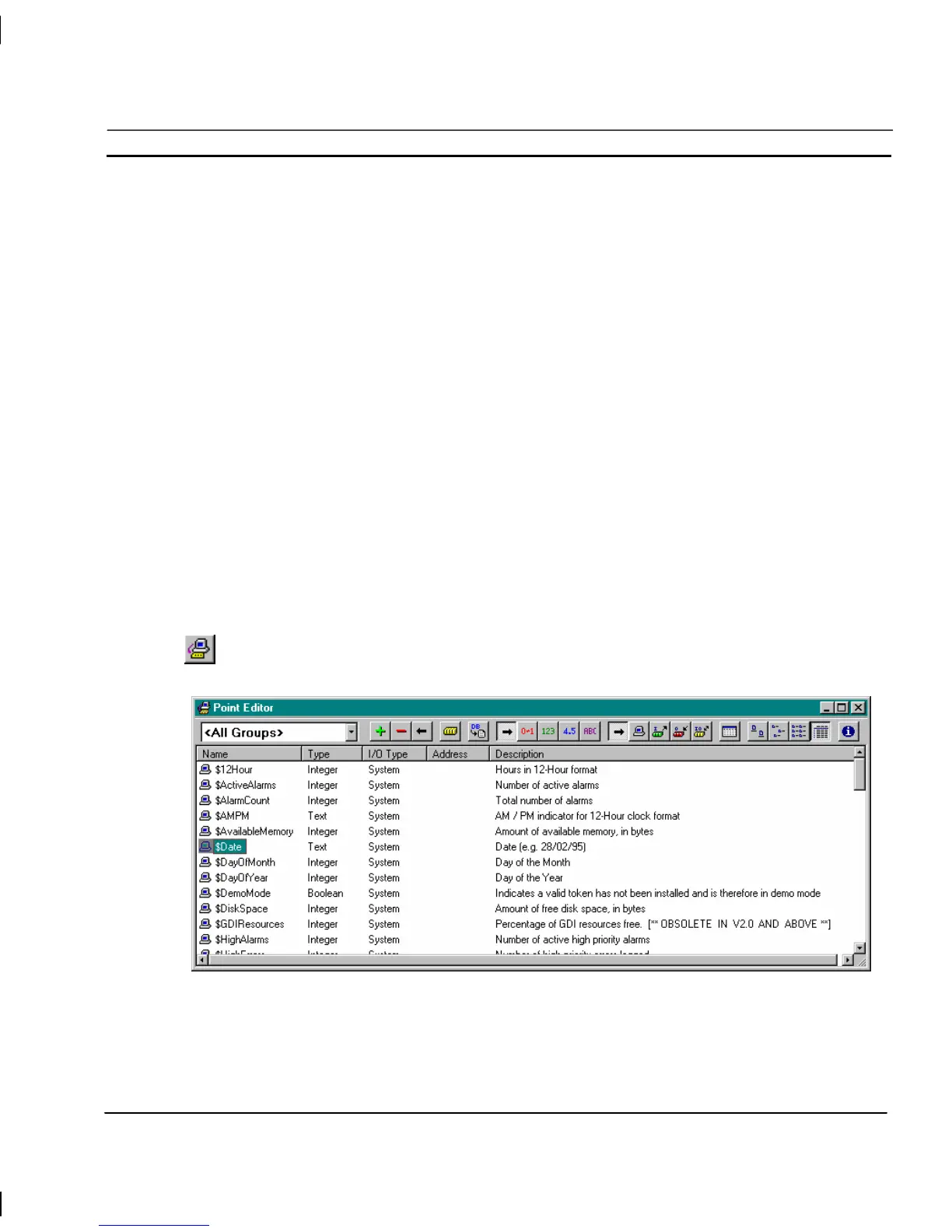

An example of the Point Editor dialog is as follows:
The typeface of the editor can be amended by selecting Preferences from the File menu. This is
especially useful when printing.
Note: To select a range of points, click on a point to mark the start of the range and click
again with the <Shift> key down to mark the end.
