CHAPTER 10 – Recipes OMRON
Page 174 Release 2.0
The other way to upload a recipe, is to display the Recipe Viewer as described in the
previous chapter. Highlight the desired recipe from the recipe list and click the Upload

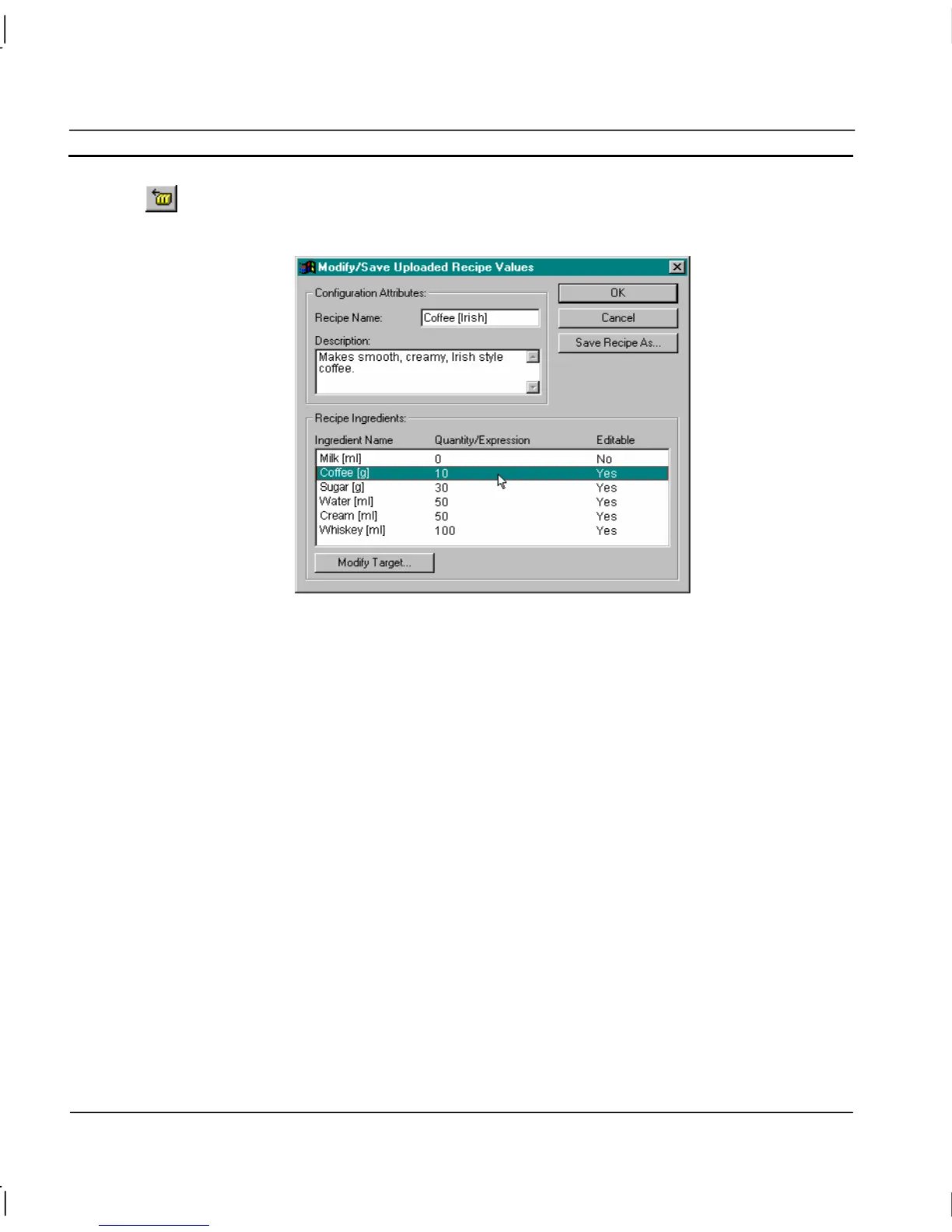

Recipe pushbutton. The Modify/Save Upload Recipe dialog is displayed as follows:
The Modify Target pushbutton allows the target value for an ingredient to be modified by means of
the Modify Ingredient dialog. An ingredient must already be selected from the list of ingredients for
this recipe. Any change to the target value is saved in the recipe definition. Any number of
ingredients may be modified in this way when the recipe is uploaded.
Selecting the OK pushbutton will upload the recipe. If for some reason the recipe definition can’t be
found, the following error message appears: “The recipe failed its validation checks. Upload
aborted”.
Each recipe upload must be completed before another can be started. If a recipe upload is already in
progress when another is started, the following error message appears: “A recipe Upload or
Download is currently in progress”.
The upload may fail at this stage if there are problems communicating with a PLC. A
communications failure results in the error message “Uploading recipe failed”. A delay in response
from the PLC of more than one minute results in the error message “Recipe transfer timed out”.
When the recipe upload is complete, all the ingredients are saved and the CX-Supervisor runtime
environment continues to run in the normal manner. An event is logged stating that the recipe was
successfully uploaded.
