CHAPTER 3 – Points OMRON
Page 26 Release 2.0

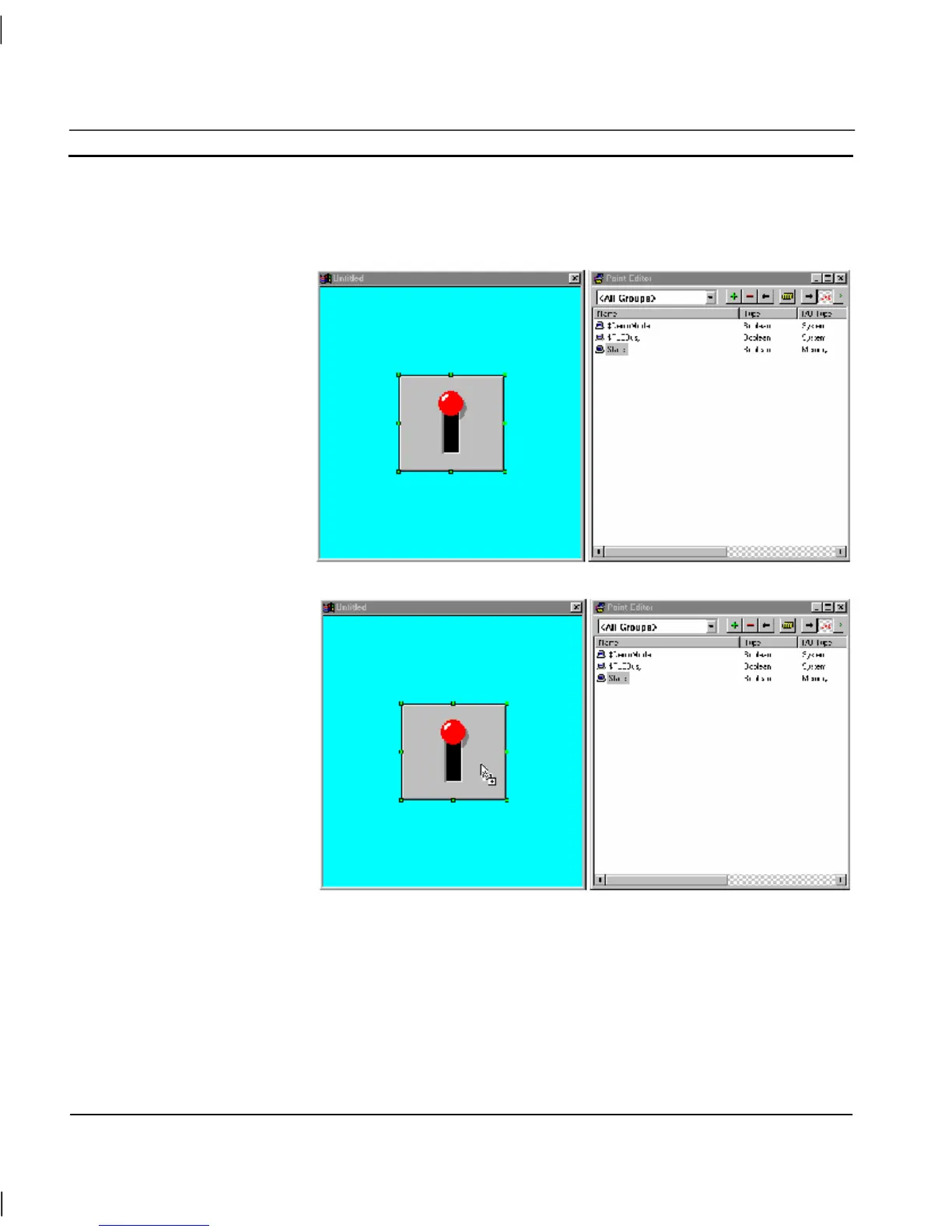

To apply a point to a control object with the Point Editor:
1, 2, 3…
1. Arrange the CX-Supervisor windows so that the point to drag and the
target control object are both visible.
2. Select the point to associate and drag it onto the page.
3. Drop the point at the position of the target control object. An invalid
“drop” is denoted by the mouse pointer changing to a circular symbol.
For further information of the use of points with objects, refer to chapter 4, Objects.
