OMRON CHAPTER 4 – Objects
Release 2.0 Page 49
Alarms are defined using the Alarm Editor; refer to chapter 8, Alarms for information on using the
Alarm Editor.

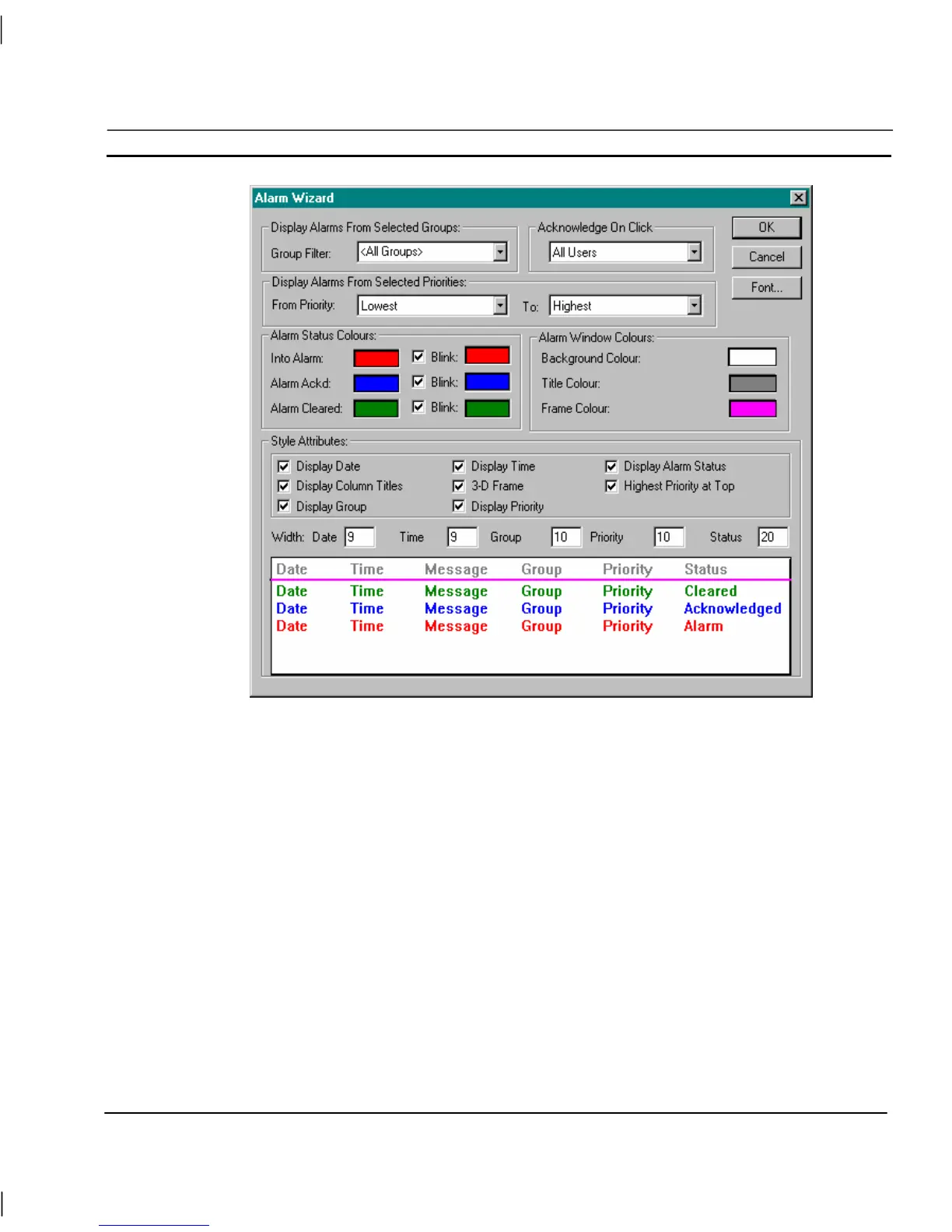

The Alarm Wizard allows entry of the alarm group filter, alarm status colour codes and various style
attributes. The Alarm Wizard presents a preview of the alarm object, which immediately updates to
show the user selections as they are made.
1, 2, 3…
1. Select the name of the alarm group by which alarm messages are to be
filtered using the Group field to display the list of available groups. The
default selection is <All Groups>, which displays all alarm messages.
To display more than one group use the * wildcard character e.g. Group1*
will include all groups starting Group1.
2. From the Acknowledge On Click options select the level of security that is
required for acknowledgement. The default is All Users.
