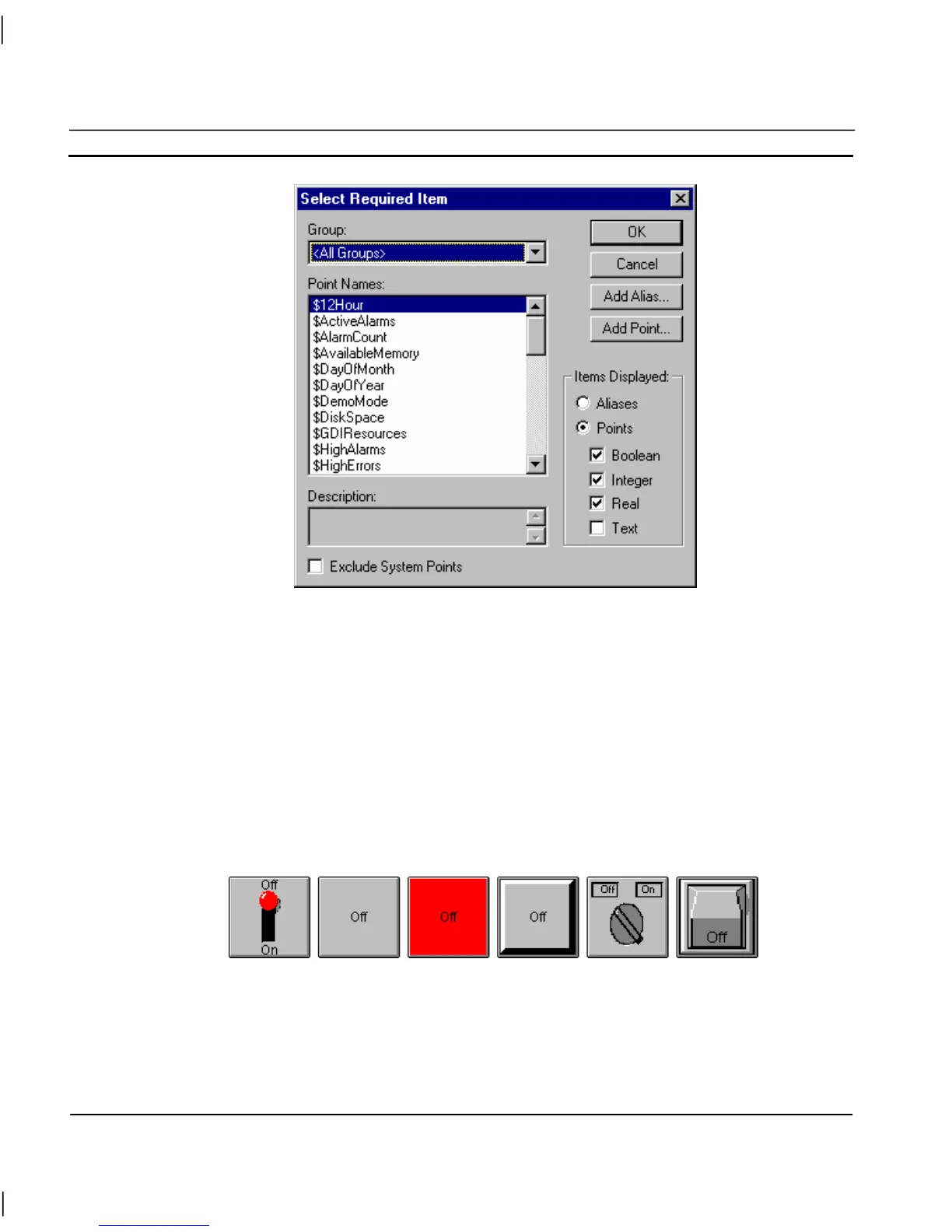

Only viable points can be viewed from a Select Required Item dialog. The list of items in the Point
Names: field can be refined by selecting an option from the Group: field. Click the OK pushbutton
to accept the new point or click the Cancel pushbutton to leave the point unchanged. Clicking the
Add Point pushbutton or Add Alias pushbutton allows a new point or alias to be created prior to
association with the Wizard. An existing point can also be associated with the Wizard by dragging a
point directly from the Point Editor. Refer to chapter 3, Points regarding adding a new point and
dragging from the Point Editor.
Select the Toggle While Pressed field if the value should only be set while the button is pressed (i.e.
the mouse button is held down when the toggle button is clicked). The value has its state toggled and
then set back when the mouse button is released.
The different styles of toggle button are the same as those for pushbuttons. Examples of some of the
different styles of toggle button are illustrated below:
Switch Blank Toggle Coloured In/Out Rotary On/Off
The colour of the coloured pushbutton is red by default, but can be changed by using the Palette.
Click the OK pushbutton to accept the new toggle button attributes or click the Cancel pushbutton to
leave the button unchanged.
