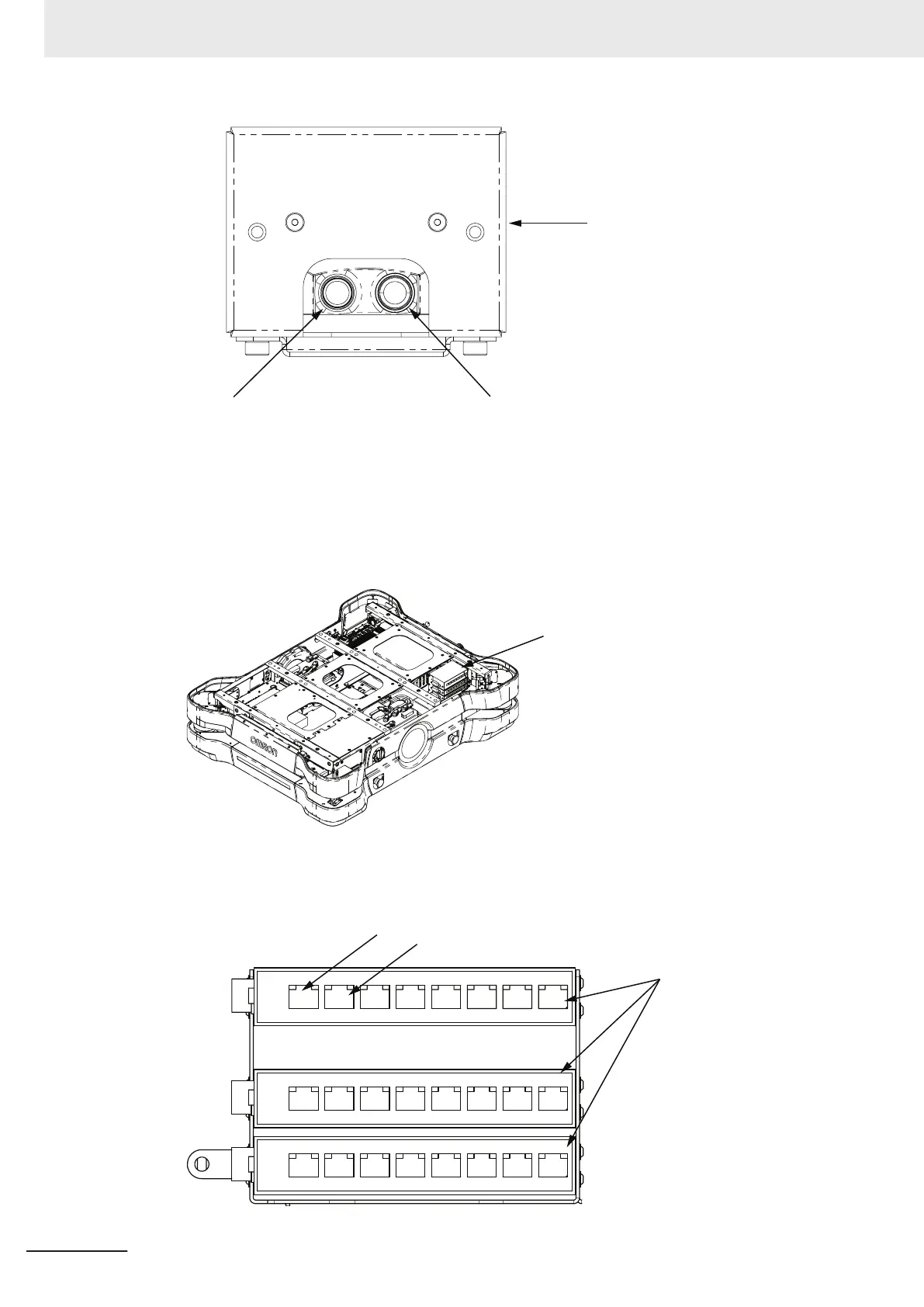

Side Laser (Rear)
Power Connector
A Coded
Network Connector
D Coded
9 Connect the M12 D coded network cable to D coded M12 network connector on the rear of the
Side Laser.
10
Route the M12 D coded network cable to the Network Switch on the rear left of the AMR. Avoid
chafing, straining, or binding the cable.
Network Switches
11 Connect the M12 D coded network cable to port 7 or 8 of the top Network Switch.
Port 8
Port 7
Network Switches
3 Installation
3-42
AMR (Autonomous Mobile Robot) MD-series Platform User's Manual (I681)
