Optopol SOCT Copernicus - Cross Examination Results Review

154 / 374
SOCT User Manual Version 10.0 rev. A

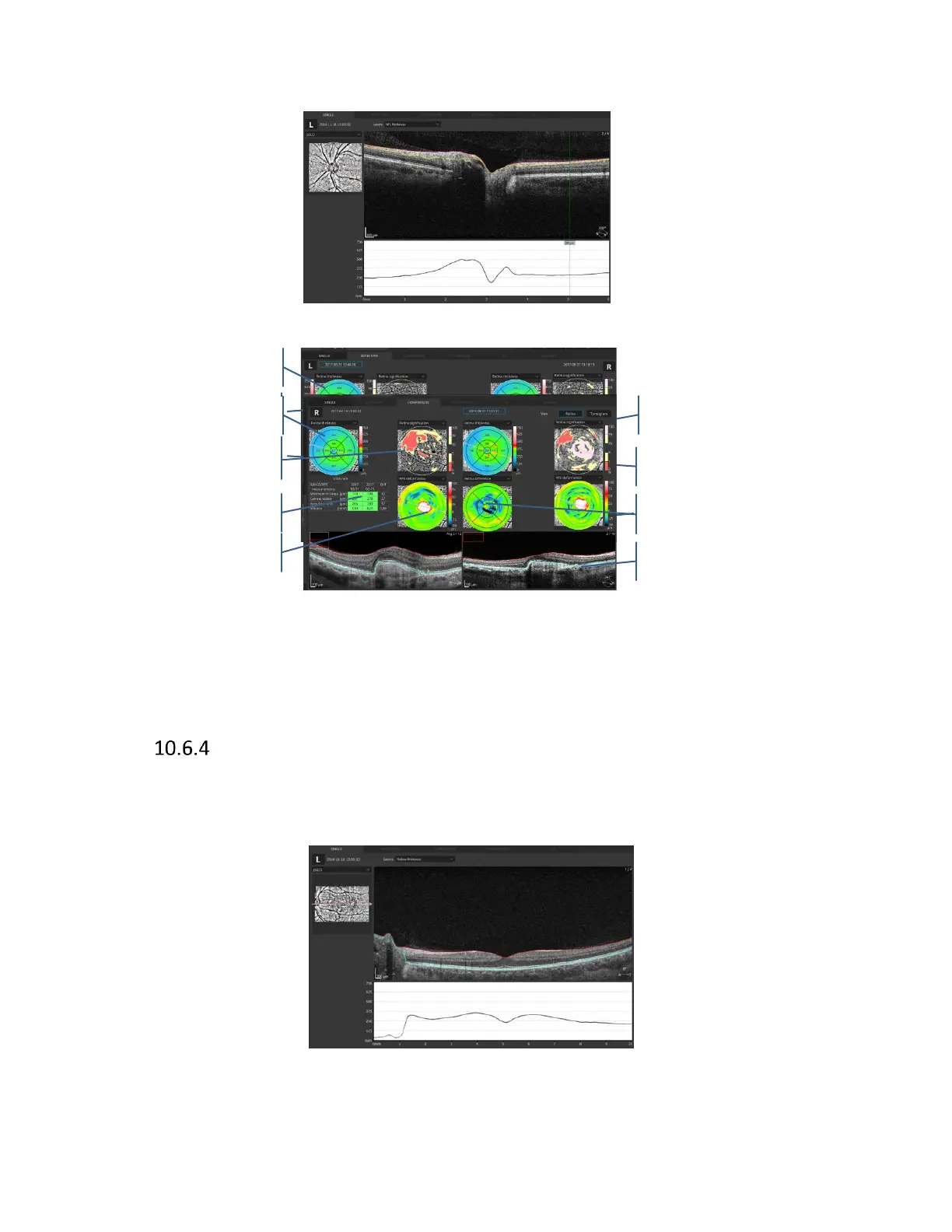

Figure 127. Radial examination both view.
Figure 128. Radial examination comparison view.
Progression displays are adequate to previously presented examples.
Cross examination results review.
Cross examination result provides image similar to Single B-scan. Averaging is possible. Single B
scan is displayed and by clicking on fundus preview it is possible to select different B-scan (vertical
or horizontal). Below example of single view:
Figure 129. Cross scan horizontal B-scan view.
Tomogram
Sectors grid
Retina thickness map
Retina signification map
RPE deformation map
Information table
Tomogram
Sectors grid
Retina thickness map
Retina signification map
RPE deformation map
Information table
Figure 126 Radial examination single view
