4 UNPACKING AND INSTALLATION
NOTE: Check for any damage to the package. Every transportation box is equipped
with the shock watches. If any shock watch is broken (red indicator) please contact
OPTOPOL Technology and lodge a complaint to the carrier.
The SOCT set consists of the following components:
1. SOCT device,
2. External fixation adapter,
3. Anterior adapter (not applicable to REVO FC models),
4. Dust cover,
5. USB 3.0 communication cable,
6. Power supply cable,
7. USB Flash drive with the SOCT software, drivers and the User manual,
8. Calibration tool (option),
9. Chinrest papers.
Unpacking
This section describes how to unpack the device shipped from the factory. Remove the top of

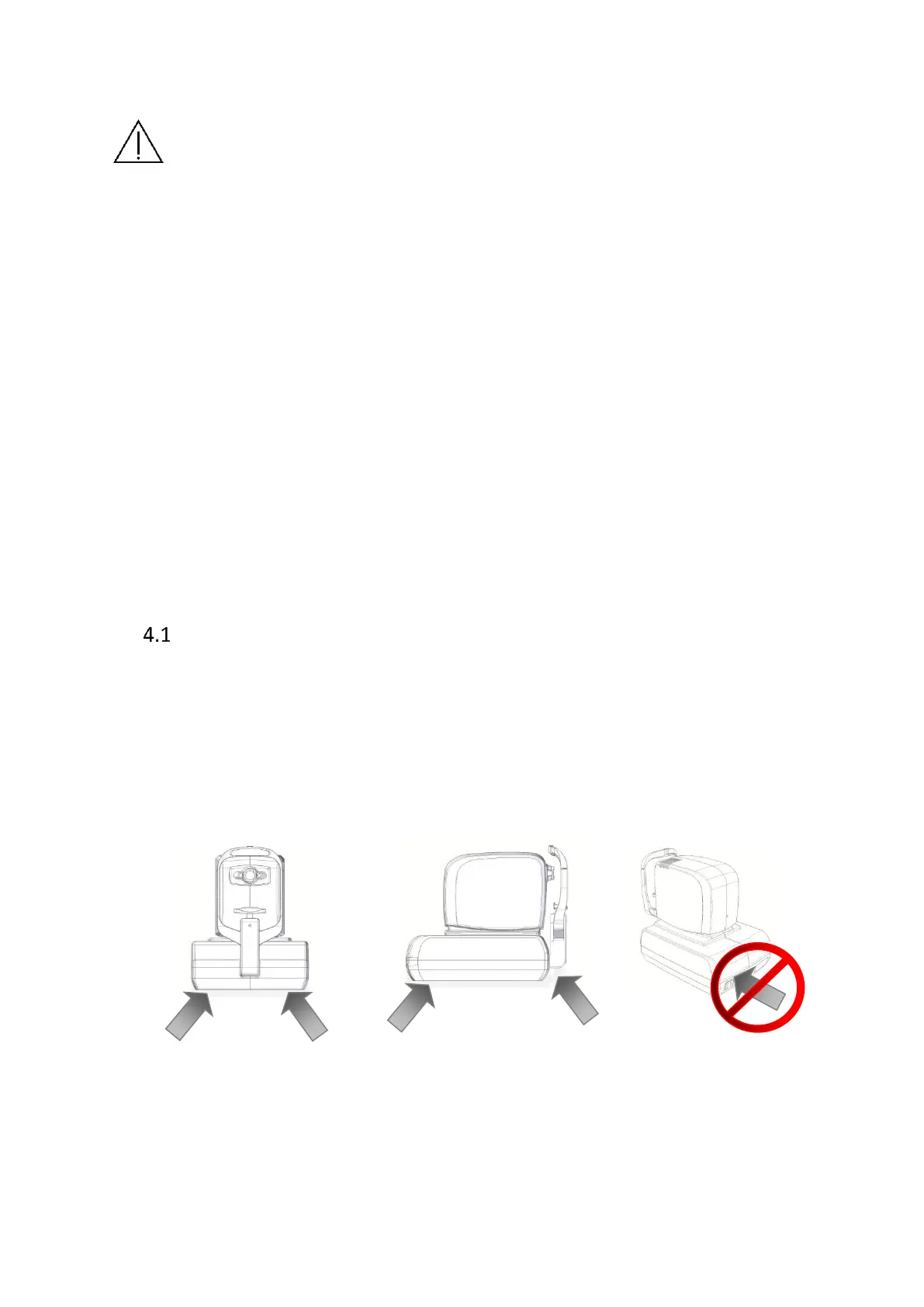

the box and side walls. Remove transport foams. The figures indicate where to grab the SOCT
during moving. It should be lifted by at least two persons. Firmly hold the instrument body at
the base of device as indicated below, and put it on the automatic instrument table. Do not
lift the device holding it by indentation area located at the back of the device above the rear
panel.
Figure 1. REF 155 and 156 series device
