Relationships between VF and RNFL/Ganglion maps
Structure & Function relationship is measured by eight corresponding regions of neuroretinal
rim area, peripapillary retinal never fiber layer and visual field.
11
This concept is based on
Structure & Function map introduced by Garway-Heath et al.13.
12
Requirements that must be met for loading perimeter tests in the
SOCT application
• PTS software version 3.4.0 or higher
• a configured connection between the SOCT and the PTS applications
• input data from the SOCT: at least one Retina 3D or Disc 3D examination
• a patient record in the SOCT application with the same personal details as the patient
record in the PTS application (first name, second name, date of birth)
An exception is the patient id which can differ between the SOCT and PTS applications. If
the patient’s ids are identical, only the patient record from the PTS application is used.
Otherwise, the SOCT application loads the list of all patient records with the same personal
data without taking into account the patient id - the list of the patients and their exams is then
displayed. If there is a full correspondence of patient data (the same name, surname, date of
birth, id) all test data, if they meet the conditions of the automatically selectable test, will be
added to the Combined tab automatically without displaying the list of tests. Otherwise, a list
of the patient's tests will be displayed for the selection of the test/tests of the left and/or right
eye. The test for a given eye will not be automatically added if there is no consistence between
the SOCT and PTS tests, e.g. when there is a test for both the left and the right eye in the SOCT
software, but in the PTS software the test for only one eye is 100% consistent.
11
Concept adaptation based on a publication by Garway-Heath et al., after own modification. Source below.
12
Structure–Function Relationships between Spectral Domain OCT and Standard Achromatic Perimetry Naveed
Nilforushan ,1,2 Nariman Nassiri,1 Sasan Moghimi,1,3 Simon K. Law,1 JoAnn Giaconi,1 Anne L. Coleman,1 Joseph
Caprioli,1 and Kouros Nouri-Mahdavi. Investigative Ophthalmology & Visual Science, May 2012, Vol. 53, No. 6
IT
IN
ST
SN
TU
TL
NL
NU

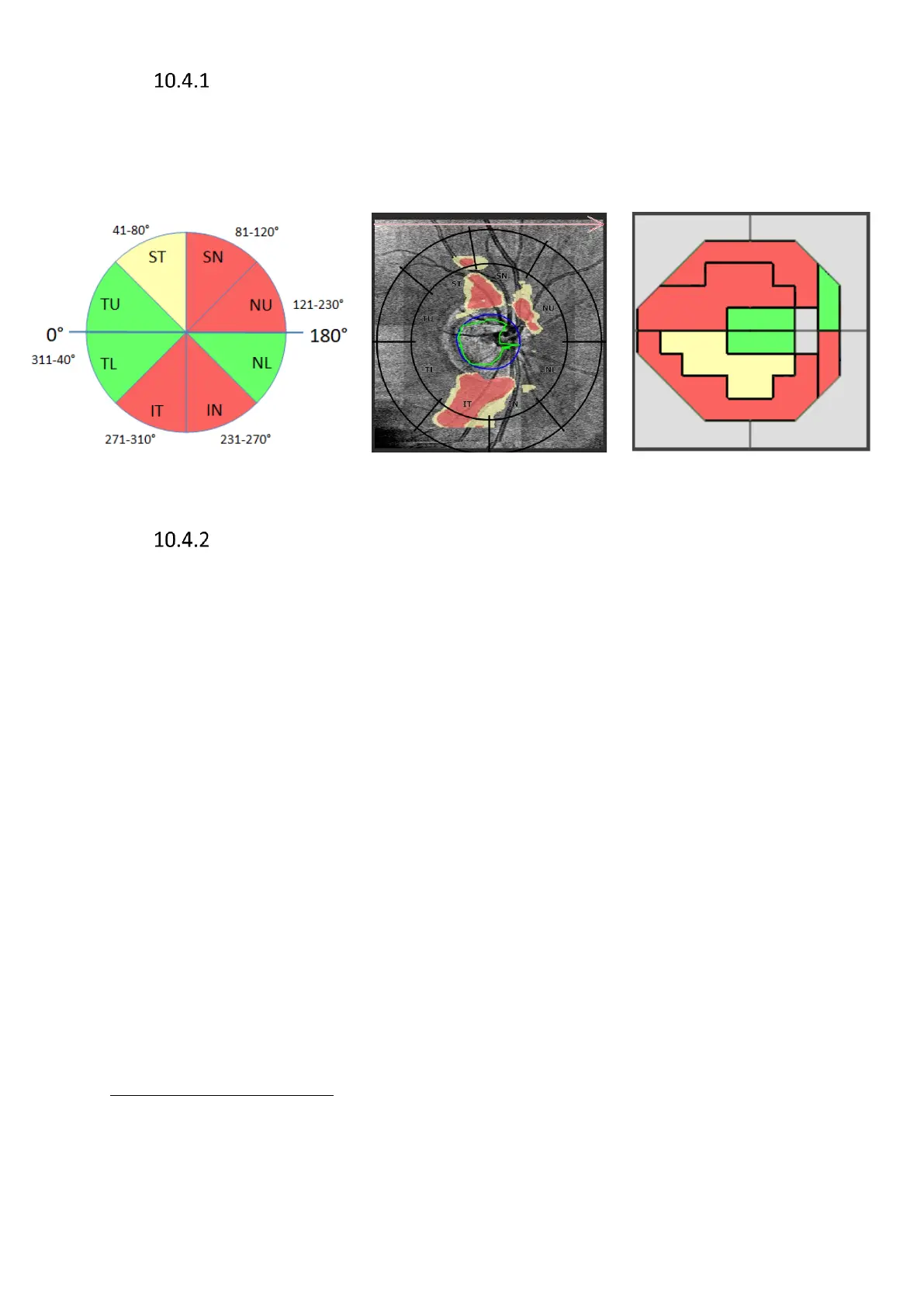

Figure 108 Relationships between OCT and VF by Garway-Heath et al.
