FP2/FP2SHI/O Allocation
3 − 8
3.2 Arbitrary Allocation
Registering with programming tool software
Preparations
Display the allocation screen.
1. Set the “FPWIN GR” software to OFFLINE mode.
2. On the “Option” menu, select “Allocate I/O Map”.
Creating allocations

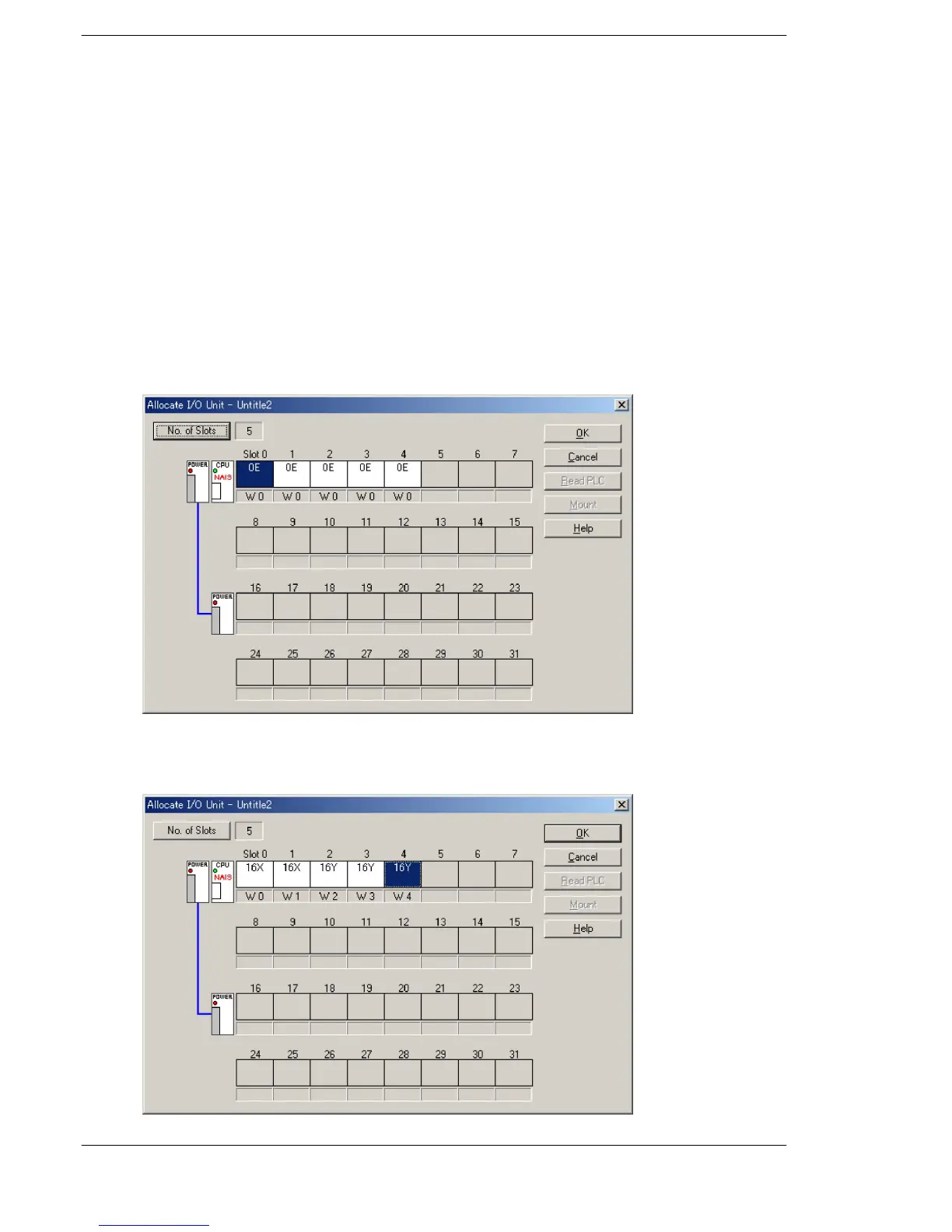

1. In “No. of Slots”, enter the number of modules(number of slots) to
used. OE is assigned to the slots after they are specified.
In this case, the number of modules that can be used is 5, so enter
“5”.
2. Assign input (X) or output (Y) according to the I/O units to be
installed in each slot.
Assign 16X to slots 0 and 1, and 16Y to slots 2 through 4.
