FP2/FP2SH
7
−
9
7.2

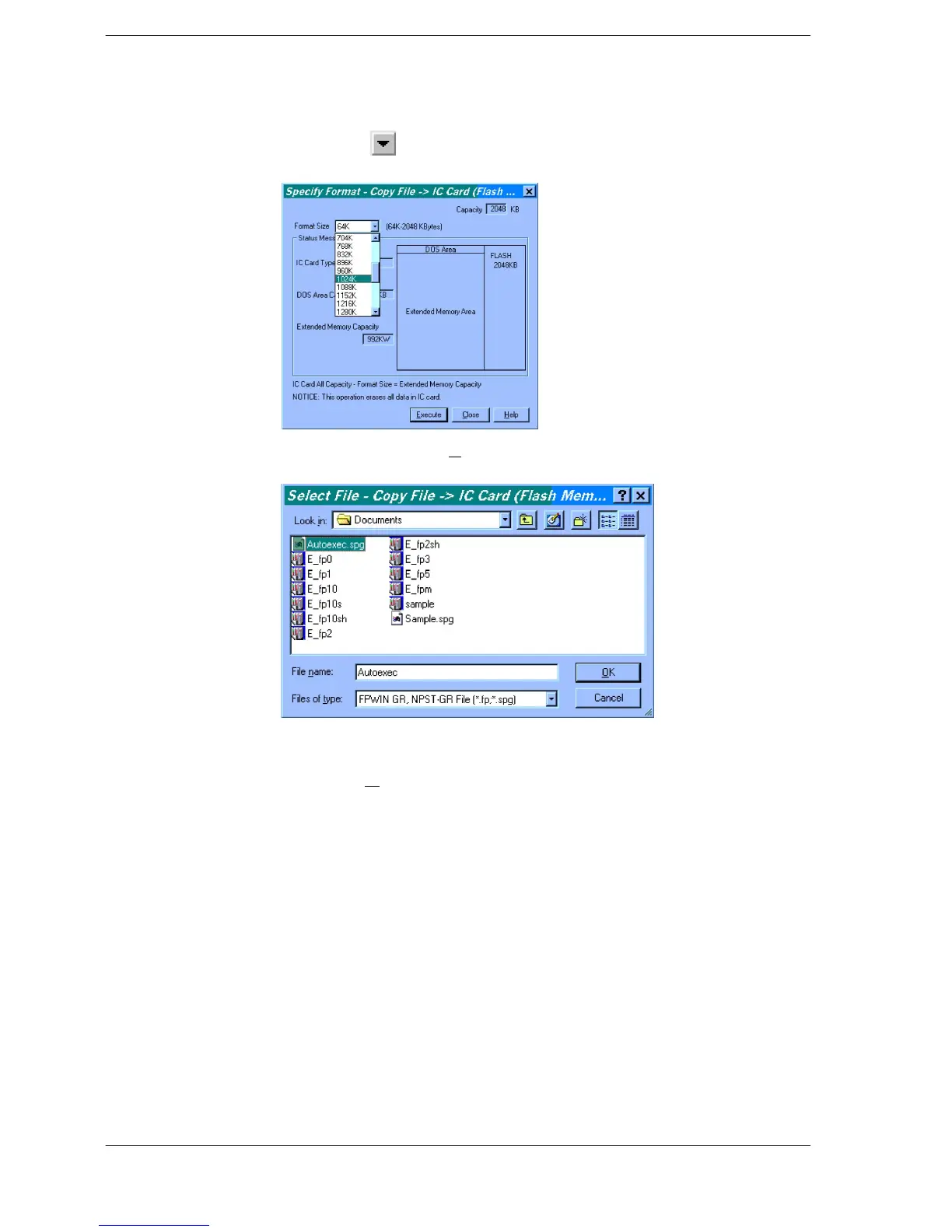

Formatting
and
Erasing
2.
Specifying
and
running
the
format
size
Press
the
button
next
to
“Format
Size”
to
select
the
size.
Next,
click
on
the
“E
xecute”
button
to
open
the
“Select
File”
window
.
3.
Selecting
the
file
to
be
copied
Select
the
file
to
be
copied
to
the
IC
memory
card,
and
click
on
“O
K”.
The
IC
memory
card
is
formatted,
and
the
file
is
written
to
the
card.
