OverviewFP2/FP2SH
1 − 7

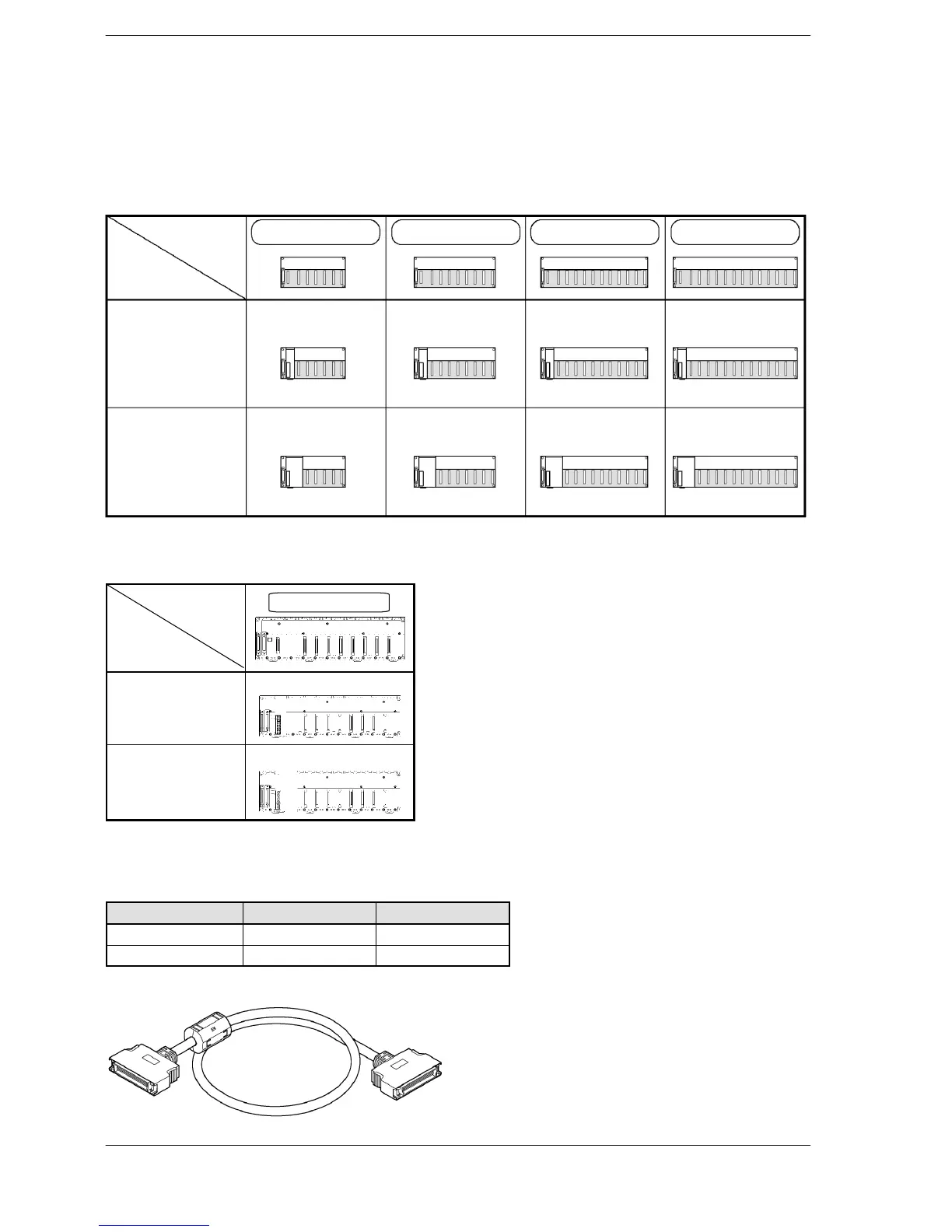

1.1 System Configuration
Restriction on the number of modules of the backplane (For expansion back-
plane)
The number of units that can be installed is determined by the number of modules of
the backplane used and the power supply unit to be installed.
FP2 backplane
1 module type
power supply
unit
7-module type 9-module type 12-module type 14-module type
6 slots free 8 slots free 11 slots free 13 slots free
2 module type
power supply
unit
5 slots free 7 slots free 10 slots free 12 slots free
* slots free: Number of slots where units can be installed
FP2 backplane H type
10-module type
1 module type
power supply
unit
8 slots free
2 module type
power supply
unit
8 slots free
Note) Although the connectors for installing I/O units are free with a 1−module type pow-
er supply unit, they cannot be used.
Expansion cable
Order number Length Ferrite core
FP2−EC 60 cm 1
FP2−EC2 2m 2
Note) With the backplalne H type, the total cable length can be arranged within 3.2 m.
