Panasonic fp2/fp2sh User Manual

11-45

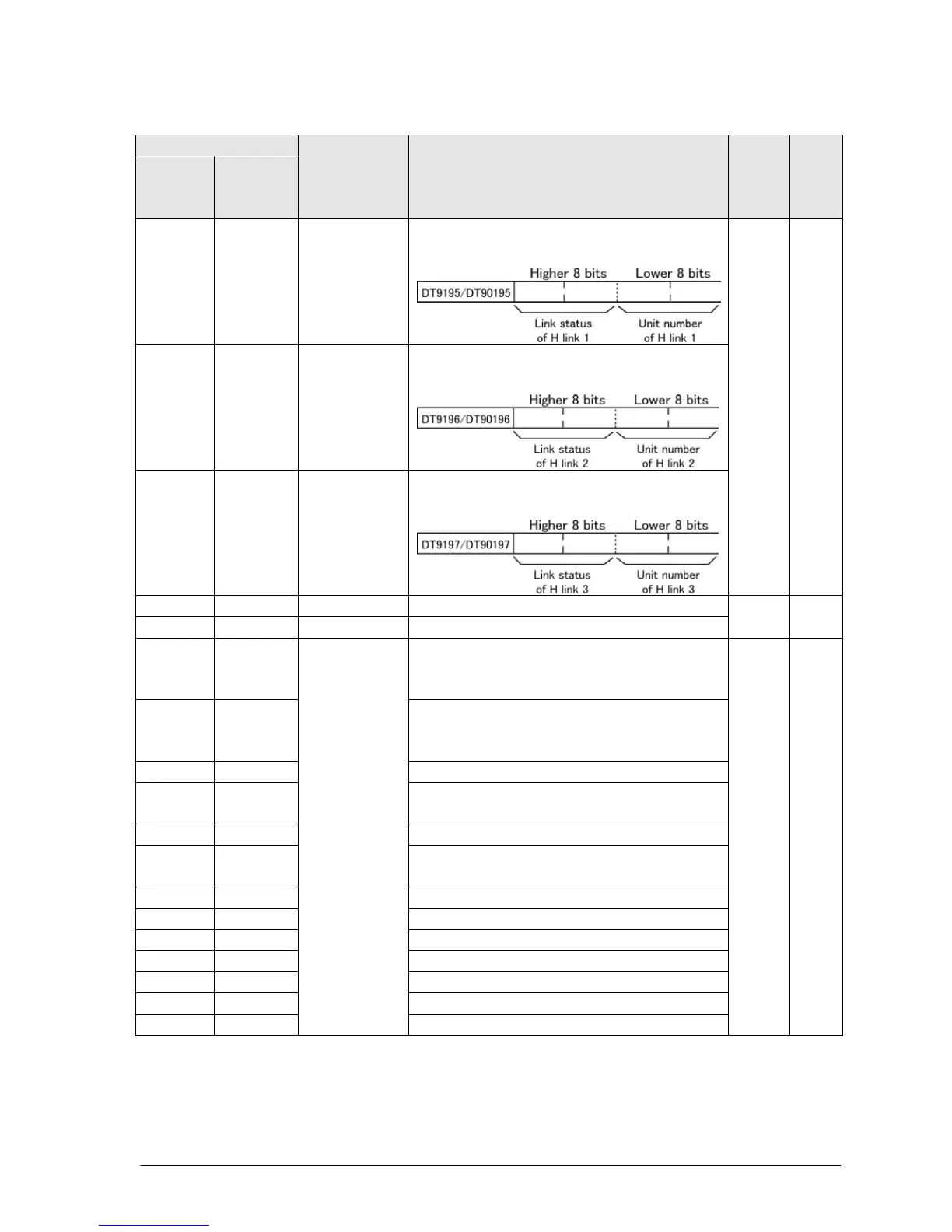

FP2/FP2SH/FP10SH/FP3 (A: Available, N/A: Not available)
Address
Name Descriptions
Read-
ing
Writ-
ing
FP3
FP2/
FP2SH
FP10SH
DT9195 DT90195
MEWNET-H
link status/
link unit
number (H
link 1)
(*Note1)
The link status for the MEWNET-H link is
monitored as:
A N/A
DT9196 DT90196
MEWNET-H
link status/
link unit
number (H
link 2)
(*Note1)
The link status for the MEWNET-H link is
monitored as:
DT9197 DT90197
MEWNET-H
link status/
link unit
number (H
link 3)
(*Note1)
The link status for the MEWNET-H link is
monitored as:
DT9198
DT90198
Not used
-
N/A N/A
DT9199 DT90199 Not used
-
DT9200 DT90200
MEWNET-
W/-P link
status
[W/P link 2]
(*Note2)
Station number, where the send area
address for the PC(PLC) link is overlapped
with this station, is stored here.
A N/A
DT9201 DT90201
Test result in the optical transmission path
test mode for MEWNET-P link system is
stored here.
DT9202
DT90202
Counts how many times a token is lost.
DT9203 DT90203
Counts how many times two or more tokens
are detected.
DT9204 DT90204
Counts how many times a signal is lost.
DT9205 DT90205
Counts how many times a synchronous
abnormality is detected.
DT9206
DT90206
Send NACK
DT9207 DT90207
Send NACK
DT9208
DT90208
Send WACK
DT9209 DT90209
Send WACK
DT9210
DT90210
Send answer
DT9211 DT90211
Send answer
DT9212
DT90212
Unidentified command
Note1) For FP10SH/FP3, using H mode
For FP2/FP2SH, using W2 mode
Note2) For MEWNET-W system, available PLC type: FP2/FP2SH/FP3/FP10SH
For MEWNET-P system, available PLC type: FP3/FP10SH
