8.4 Electronic Clutch Function
8-13

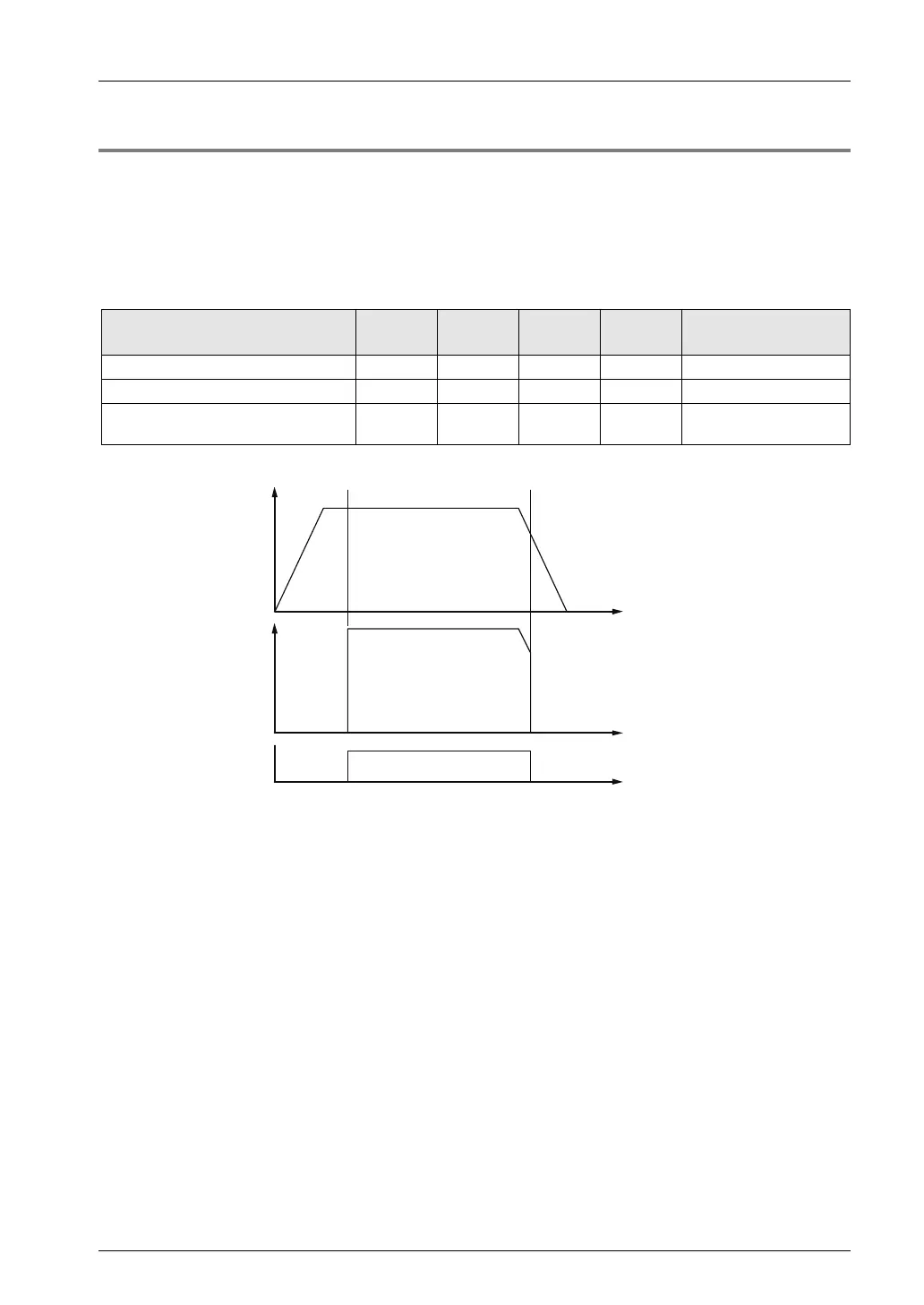

8.4.3 Trigger Types for Electronic Clutch
The following methods are available for the engagement or disengagement of the electronic
clutch.
Clutch request signal (Y98 to Y9B and Y100 to Y103)
An I/O signal (clutch request signal) allocated to the unit is in control of the electronic clutch.
I/O allocation
Signal type 1st
axis
2nd
axis
3rd
axis
4th
axis
Operation
Slave axis clutch ON request Y98 Y99 Y9A Y9B
Slave axis clutch OFF request Y100 Y101 Y102 Y103
Slave axis clutch operation notice X98 X99 X9A X9B
ON: Engaged;
OFF: Disengaged
ON
OFF
Master axis operation
Slave axis operation
Clutch request signal
(Note): The above shows an example of the direct method selected for the engagement of the
clutch.
