Unit Allocation and
Parameter Settings
5-10
5.4 Synchronous Parameter/Cam Pattern Settings
5.4.1 Synchronous Parameter Settings
Use the Configurator PM7 to allocate parameters necessary for synchronous control. The
following procedure is explained on the condition that the Configurator PM7 has already
started.
1. Select “Axis Settings”
→ “Synchronization parameter settings” from the
menu bar.

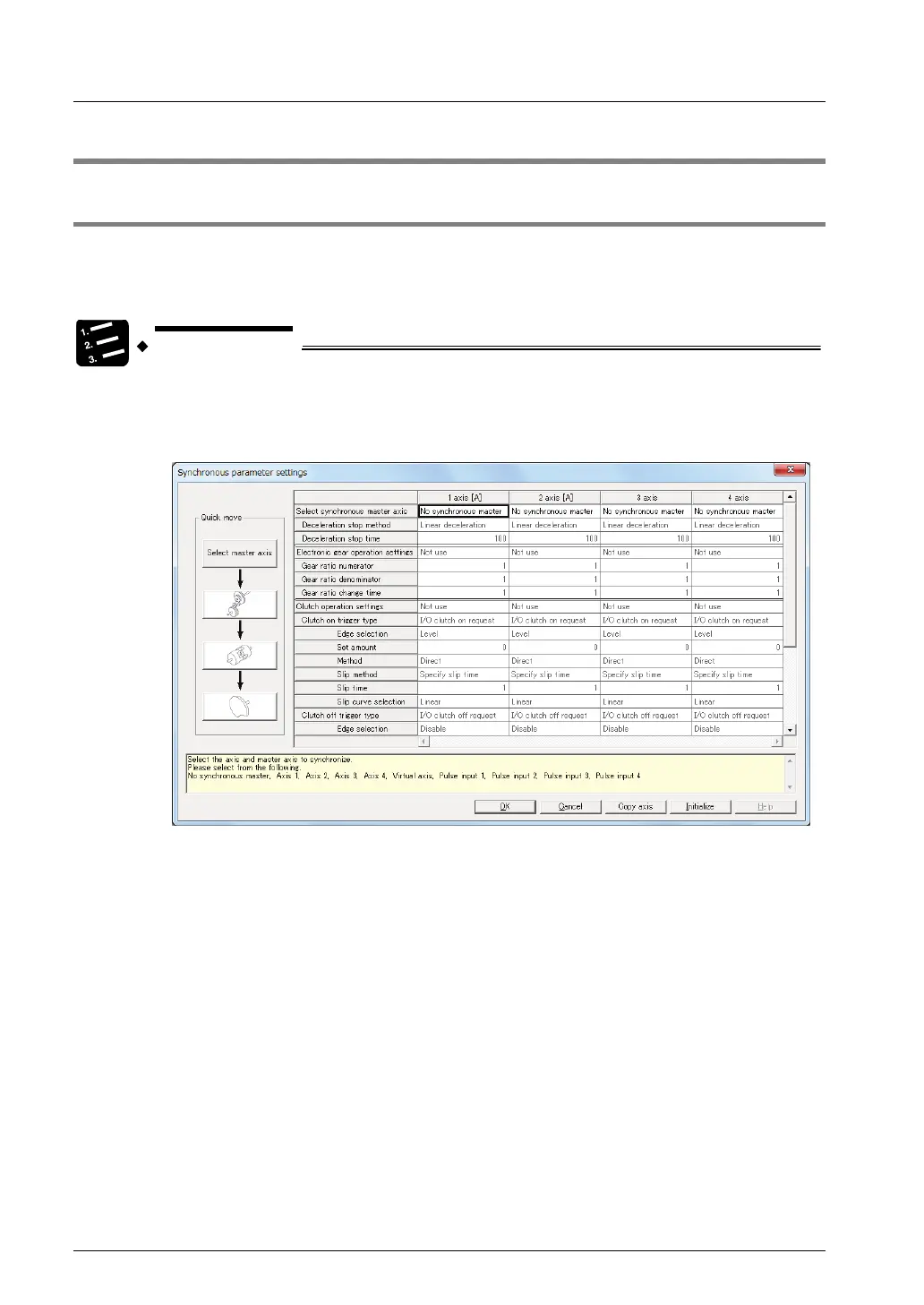

The synchronous parameter dialog box will be displayed.
2. Make necessary parameter settings according to the application and press
the [OK] button.
