8.5 Electronic Cam Function
8-17

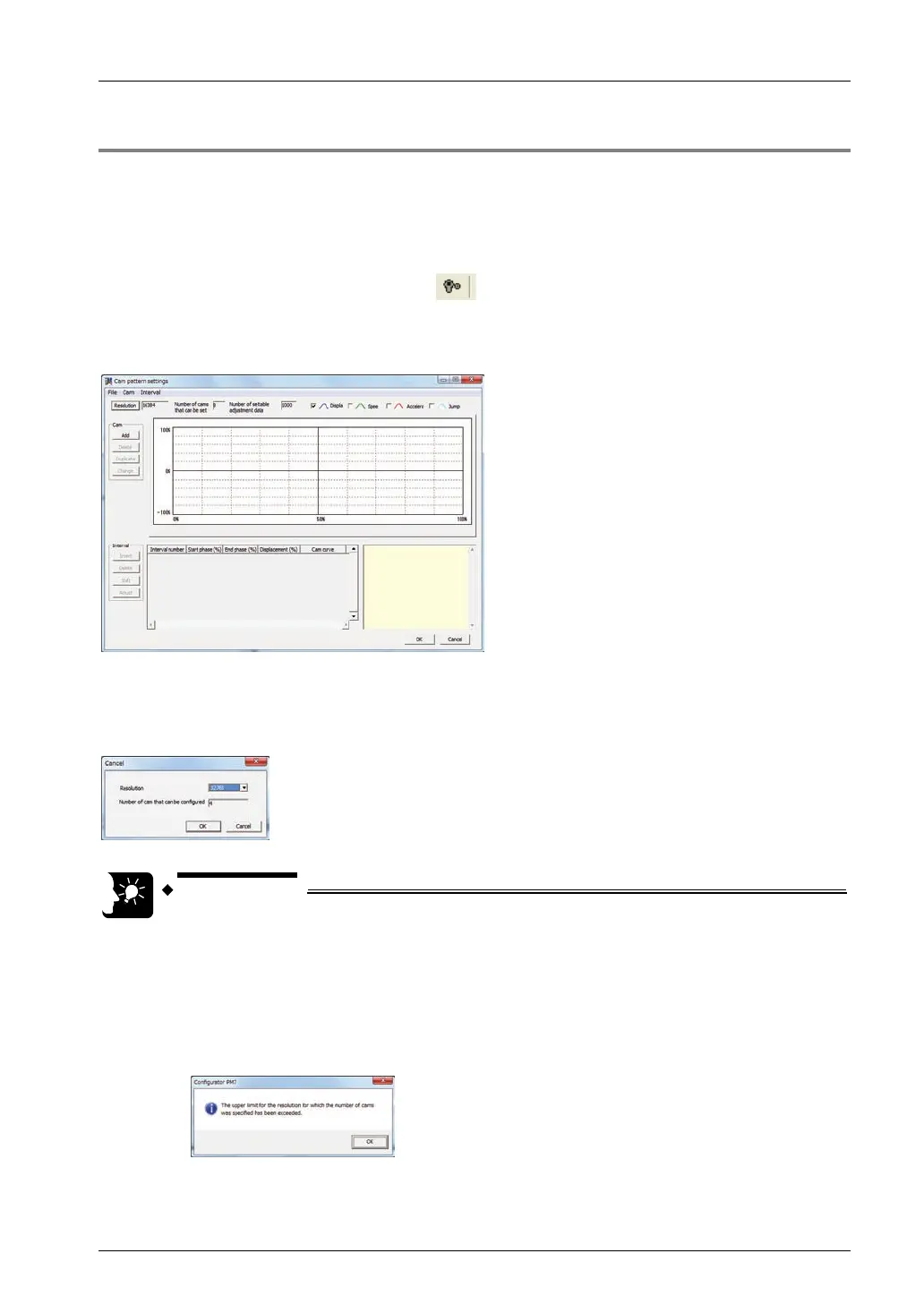

8.5.3 Cam Pattern Setting Method
Starting Cam Pattern Setting Screen
Open the Configuration screen on the FPWIN GR7 and select “Positioning settings” so that
the setting tool for the positioning unit will start.
Select “Axis settings” - “Cam pattern settings” from the toolbar of the setting tool for the
positioning unit or click the following icon:
The Cam Pattern Settings screen is displayed.
A blank screen will be displayed for a new file and settings for cam pattern 1 will be displayed
if data already exists.
Resolution settings
Press the [Resolution] button on the Cam Pattern screen. The Resolution Settings screen will
be displayed. Select the desired resolution and press the [OK] button.
• The resolution is valid for all cam patterns. You cannot set a different
resolution per cam pattern.
• The number of cam patterns available varies with each resolution. The
current resolution cannot be changed to a new resolution if the number of
cam patterns already set exceeds the number of cam patterns available for
the new resolution. Delete the cam pattern and change the resolution.
