Wiring
3-2

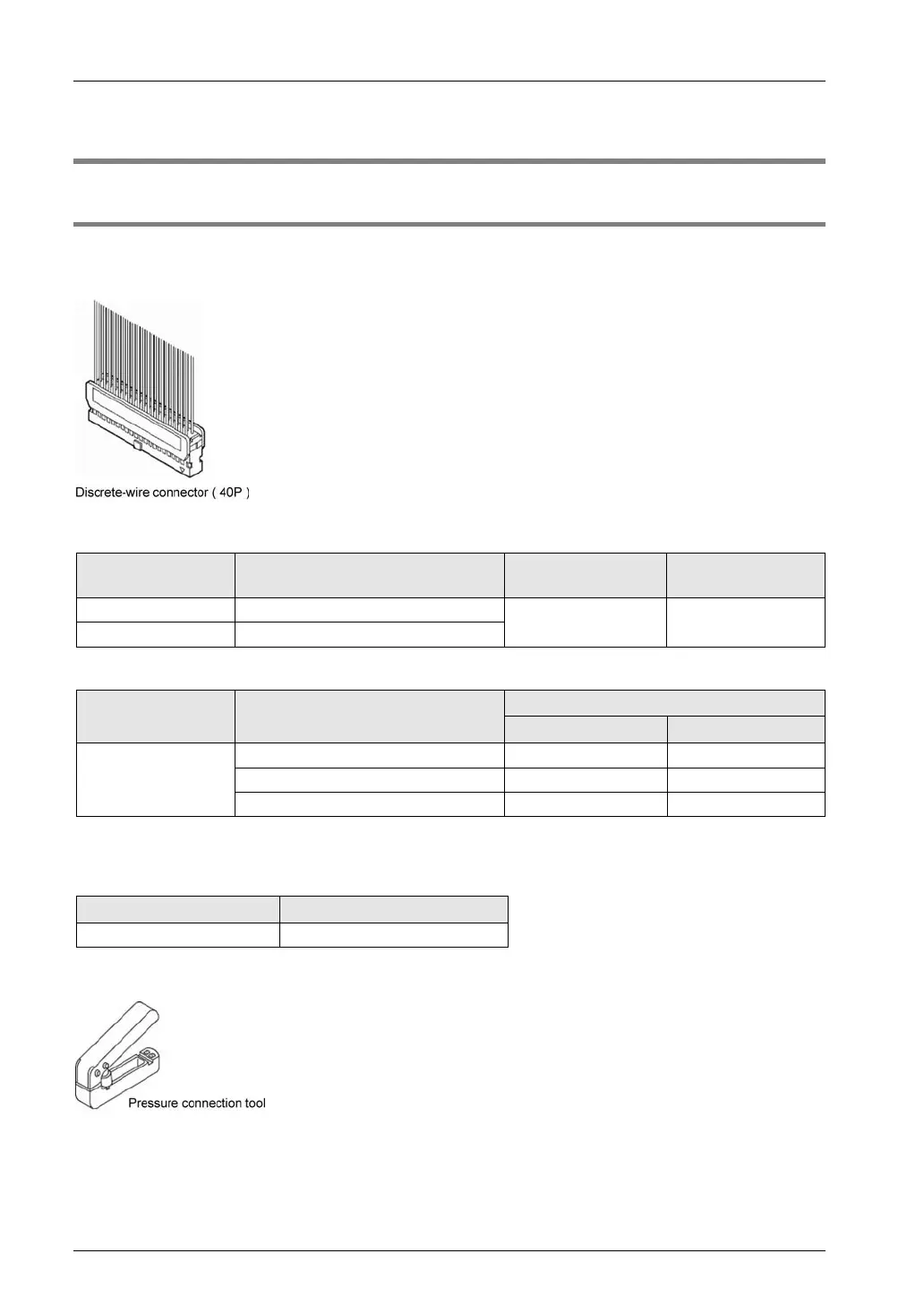

3.1 Connection over Wire-pressed Terminal Cable
3.1.1 Specifications of Wire-pressed Terminal Cable
This is a connector that allows loose wires to be connected without removing the wires’
insulation. The pressure connection tool is required to connect the loose wires.
Suitable wires (strand wire)
Size Nominal cross-sectional area
Insulation
thickness
Rated current
AWG#22 0.3 mm
2
1.5 to 1.1 dia. 3 A
AWG#24 0.2 mm
2
Connector for wire-pressed terminal cable (provided with the unit)
Manufacturer Composition of parts
Unit type and required quantity
2-axis type 4-axis type
Panasonic made
Housing (40P) 1 x 1 set 1 x 2 sets
Semi-cover (40P) 2 x 1 set 2 x 2 sets
5-pin contact (for AW22 and AW24) 8 x 1 set 8 x 2 sets
(Note) One set is provided for the 2-axis type and two sets are provided for the 4-axis type. If you need more
connectors, purchase AFP2801 (2 sets/pack).
Pressure connection tool
Manufacturer Product no.
Panasonic made AXY52000FP
