6.3 Monitoring on Configurator PM7
6-5
6.3 Monitoring on Configurator PM7

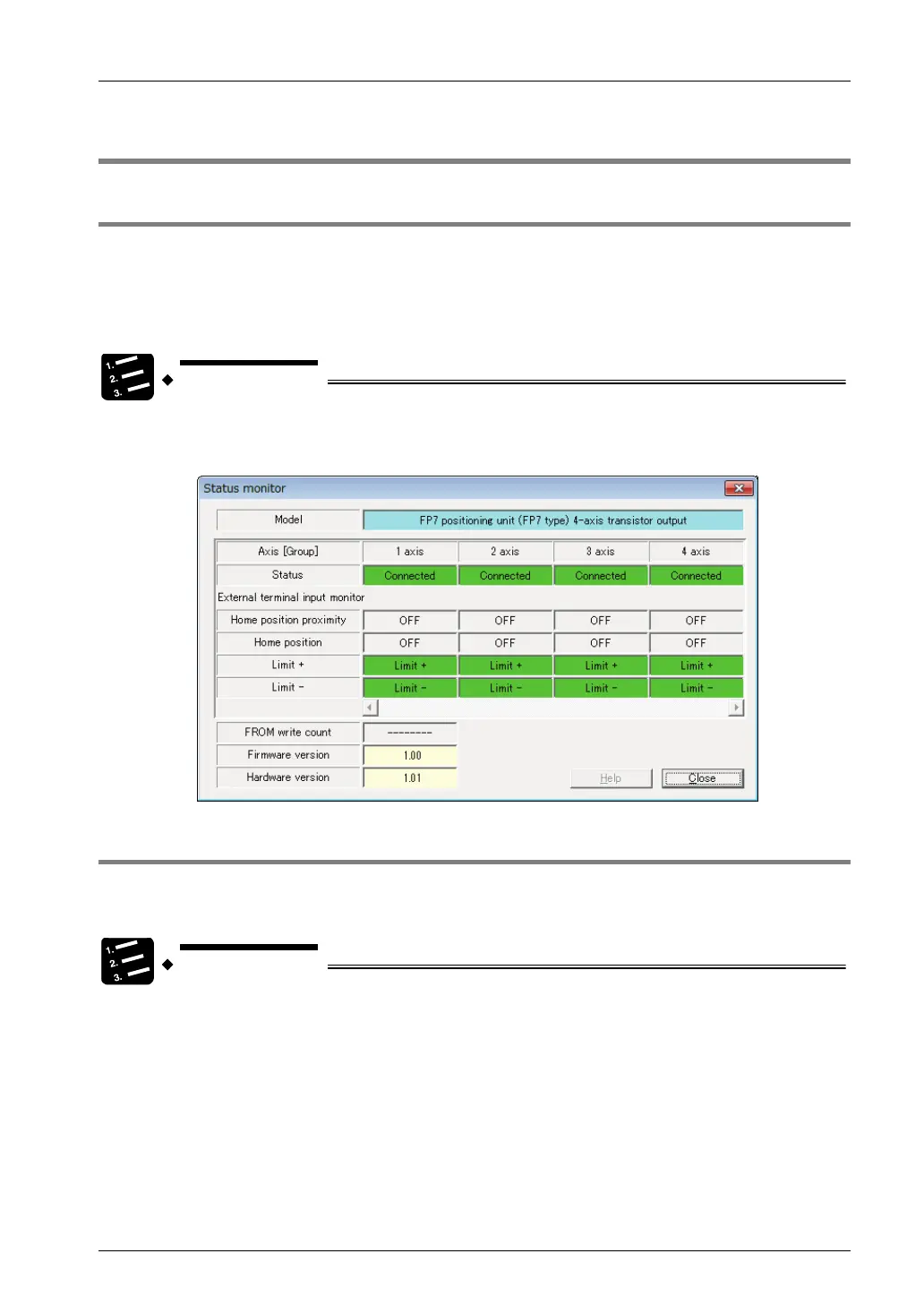

6.3.1 Status Monitor
• It is possible to monitor the connection state of each axis and input state of the external
terminal.
• The following procedure is explained on the condition that the Configurator PM7 has already
started.
1. Select “Online”
→ “Status monitor” from the menu bar.
The status monitor dialog box will be displayed.
6.3.2 Data Monitor
• It is possible to monitor the connection state of each axis and input state of the external
terminal.
1. Select “Online”
→ “Data Monitor” from the menu bar.
The data monitor dialog box will be displayed.
