Transfer to Unit and Commissioning
6-6

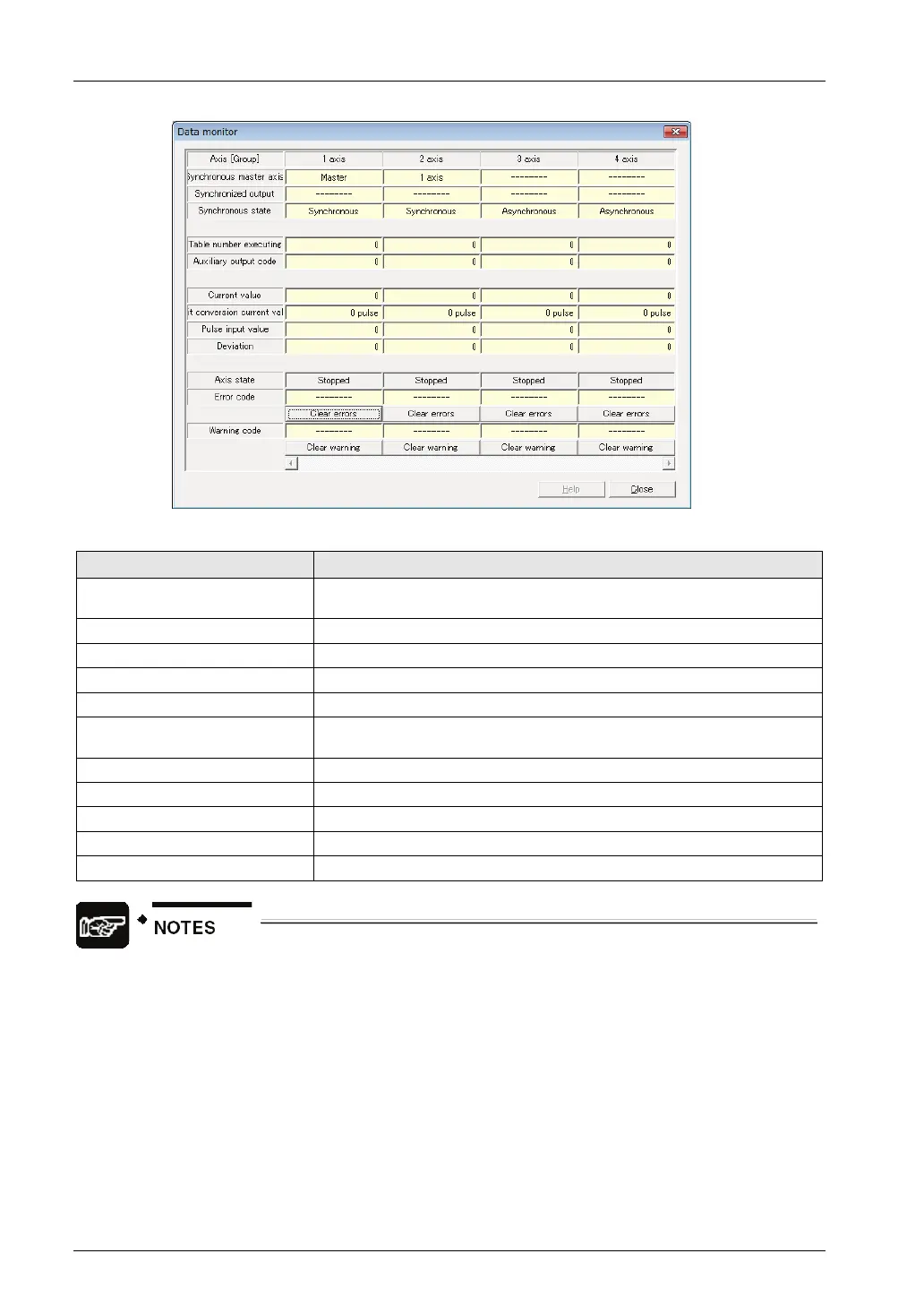

Monitor items
Items Description
Table number executing
The table number that the positioning data is being executed or has been
executed.
Auxiliary output code Auxiliary output code
Current value (pulse) The current value of the positioning unit.
Unit conversion current value The unit-converted current value of the positioning unit.
Pulse input value Monitors the input pulse value.
Deviation
Displays the deviation of the amount of movement while the auto check
function for the amount of movement is activated.
Axis state The operating states of axes or error and warning occurrences.
Error code The latest error code if an error occurs.
Error clear Clears the error by clicking this button if an error occurs.
Warning code Indicates the latest warning code if a warning occurs.
Warning clear Clears the warning by clicking this button if a warning occurs.
• If a recoverable error occurs in the positioning unit, click the [Error clear]
button to clear the error.
• If a warning occurs in the positioning unit, click [Warning clear] to clear the
warning.
