Unit Allocation and
Parameter Settings
5-6

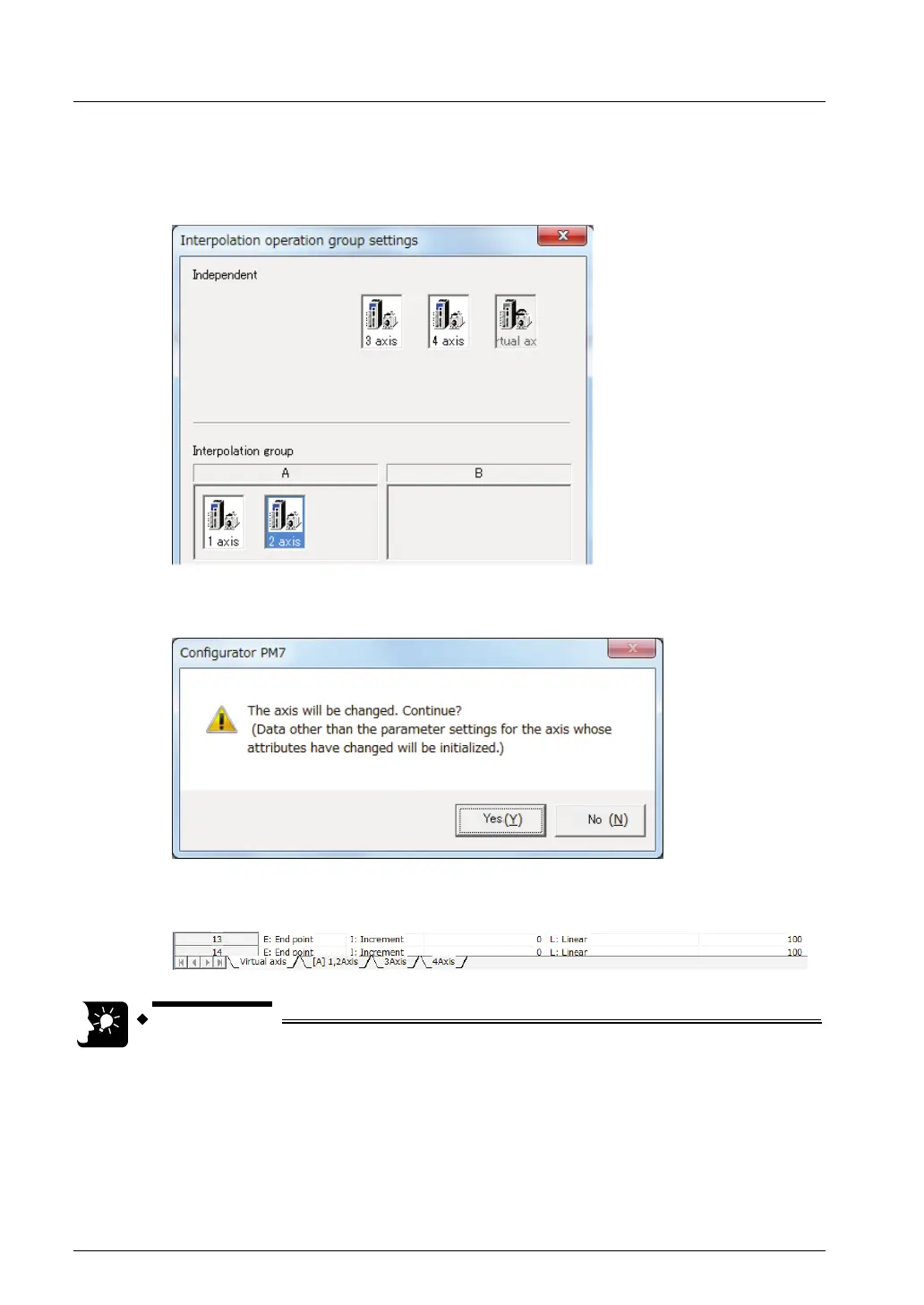

4. Drag the icon of each axis to be allocated for interpolation to the
interpolation group field.
The following picture shows the allocation of 1st axis and 2nd axis to the
interpolation group.
5. Press the [OK] button.
A confirmation message will be displayed.
6. Check the contents of the change and press the [Yes] button.
A data table tab each is created for the groups set.
• Setting items, such as the movement and interpolation of X-, Y-, and Z-axis,
will be added to the data table, and group name [A] or [B] will be displayed
on the tab when the interpolation group is set.
• The virtual axis or slave axis under synchronous control cannot be set to
the interpolation groups.
